Pharmacy Industry Two Dimensional Swing Mixer 600L
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | TDM-600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Pharmacy Two Dimensional Swing Blender | Application: | Medicine Processing, Chemicals Processing, Food Processing |
|---|---|---|---|
| Model Type: | TDM-600 | Barrel Volume: | 600L |
| Loading Capacity: | 300L | Max Loading Weight: | 150kg/batch |
| No.of Swing&rotation: | 23.6r/min | Total Motor Power: | 3kw |
| Total Weight: | 1150kg | Barrel Weigth: | 140kg |
| Overall Dimension: | 1170x1640x2050x1910mm | ||
| Highlight: | Pharmacy Two Dimensional Swing Mixer,Swing Mixer 600L,Mixing Machine 600L |
||
Product Description
Pharmacy Two Dimensional Swing Blender
TDM Series Two Dimensional Mixer Principle Two dimensional mixer mainly consists of three big parts namely, rotating cylinder, swinging rack and frame. The rotating cylinder lies on the swinging rack, supported by four wheels and its axial fixation is done by two stop wheels. Two of our wheels are driven by rotating power system to made the cylinder rotate. The swinging rack is driven by a set of crankshaft swinging bar which is mounted on the frame and the swinging rack is supported on the frame.
The drum of machine can simultaneously move in two directions, one for the rotation of the drum, another for drum with the swinging rack.
Materials rotating, over turning and mixing in the drum with the rotation of the drum meanwhile do back and forth mixing movement with the drum swinging. With these two sports function, the materials can be fully mixed in a short time.
This machine is widely used in blending of powder and granular materials.
Technical Parameters
| Type | Barrel volume(L) | Loading capacity(L) | Max loading weight(kg/batch) | No.of swing&rotation(r/min) | Total motor power(kw) | Overall dimension(mm) | Total weight(kg) | Barrel weight(kg) |
| TDM-60 | 60 | 30 | 15 | 50 | 0.4 | 700x730x1100x990 | 115 | 15 |
| TDM-150 | 150 | 75 | 37.5 | 37 | 1.15 | 800x1050x1450x1340 | 190 | 50 |
| TDM-300 | 300 | 150 | 75 | 30 | 1.15 | 900x1350x1550x1400 | 340 | 60 |
| TDM-600 | 600 | 300 | 150 | 23.6 | 3 | 1170x1640x2050x1910 | 1150 | 140 |
| TDM-800 | 800 | 400 | 200 | 19.8 | 3 | 1320x1950x2150x2000 | 1600 | 200 |
| TDM-1000 | 1000 | 500 | 250 | 19.8 | 3 | 1300x2980x1894x1766 | 1700 | 240 |
| TDM-1500 | 1500 | 750 | 375 | 16.2 | 4.4 | 1500x3195x2250x2008 | 2000 | 320 |
| TDM-2000 | 2000 | 1000 | 500 | 16.2 | 7.4 | 1660x3305x2255x2120 | 2600 | 430 |
| TDM-3000 | 3000 | 1500 | 750 | 13.8 | 11 | 1860x3860x2570x2420 | 3500 | 620 |
| TDM-4000 | 4000 | 2000 | 1000 | 12.8 | 13 | 2010x4100x2755x2550 | 4100 | 700 |
| TDM-6000 | 6000 | 3000 | 1500 | 11.2 | 18.5 | 2280x4965x3172x2935 | 6100 | 1100 |
| TDM-8000 | 8000 | 4000 | 2000 | 10.4 | 22 | 2500x5200x3655x3200 | 7900 | 1450 |
| TDM-10000 | 10000 | 5000 | 2500 | 9 | 30 | 2600x5500x3750x3400 | 9500 | 1650 |
Product Feature
The machine is mainly composed by the drum, the swinging rack and the frame.
Drum packed in the swinging rack, supported by four wheels and axial orientation by two block round, among the four support rollers, two of them produce a drum rotating by rotating power system;
The swinging rack is drive by a group of crankshaft swinging rod, crankshaft swinging rod is mounted on the frame, the swinging rack is support on the frame by bearing components.

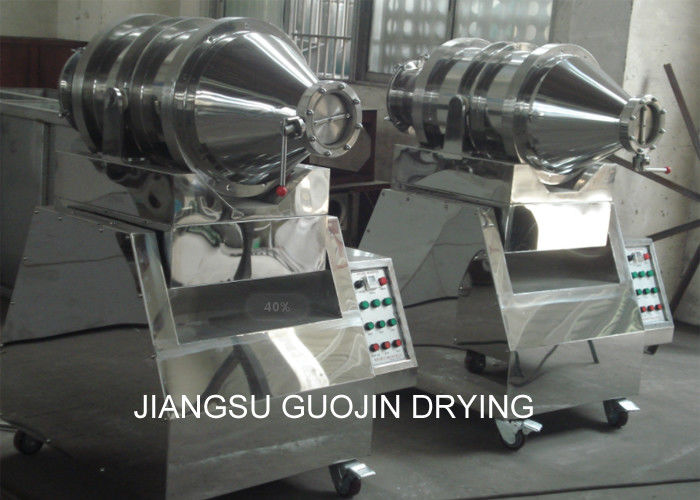

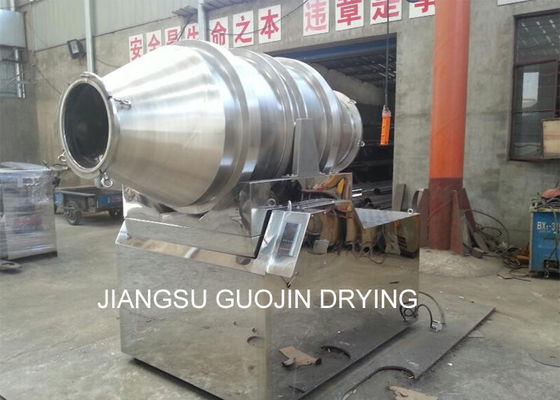

Product Show
