300L 2 Dimensional Motive Mixing Machine For Pharmaceutical Industry
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | TDM-300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | 2 Dimensional Motive Mixer For Mixing Of All Powder And Granule Materials | Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Model Type: | TDM-300 | Barrel Volume: | 300L |
| Loading Capacity: | 150L | Max Loading Weight: | 75kg/batch |
| No.of Swing&rotation: | 30r/min | Total Motor Power: | 1.15kw |
| Total Weight: | 340kg | Barrel Weigth: | 60kg |
| Overall Dimension: | 900x1350x1550x1400mm | ||
| Highlight: | 2 Dimensional Motive Mixing Machine,300L Mixing Machine,300L Blending Machine |
||
Product Description
2 Dimensional Motive Mixer For Mixing Of All Powder And Granule Materials
TDM Series Two Dimensional Mixer Principle Two dimensional mixer mainly consists of three big parts namely, rotating cylinder, swinging rack and frame. The rotating cylinder lies on the swinging rack, supported by four wheels and its axial fixation is done by two stop wheels. Two of our wheels are driven by rotating power system to made the cylinder rotate. The swinging rack is driven by a set of crankshaft swinging bar which is mounted on the frame and the swinging rack is supported on the frame.
The barrel of TDM two-dimensional mixer has two movements, one is the rotation of barrel, and another is motion with the swing frame. The mixed materials rotate and turnover in the barrel. With the two movements, the material can be mixed well in a short time.
Technical Parameter
| Type | Barrel volume(L) | Loading capacity(L) | Max loading weight(kg/batch) | No.of swing&rotation(r/min) | Total motor power(kw) | Overall dimension(mm) | Total weight(kg) | Barrel weight(kg) |
| TDM-60 | 60 | 30 | 15 | 50 | 0.4 | 700x730x1100x990 | 115 | 15 |
| TDM-150 | 150 | 75 | 37.5 | 37 | 1.15 | 800x1050x1450x1340 | 190 | 50 |
| TDM-300 | 300 | 150 | 75 | 30 | 1.15 | 900x1350x1550x1400 | 340 | 60 |
| TDM-600 | 600 | 300 | 150 | 23.6 | 3 | 1170x1640x2050x1910 | 1150 | 140 |
| TDM-800 | 800 | 400 | 200 | 19.8 | 3 | 1320x1950x2150x2000 | 1600 | 200 |
| TDM-1000 | 1000 | 500 | 250 | 19.8 | 3 | 1300x2980x1894x1766 | 1700 | 240 |
| TDM-1500 | 1500 | 750 | 375 | 16.2 | 4.4 | 1500x3195x2250x2008 | 2000 | 320 |
| TDM-2000 | 2000 | 1000 | 500 | 16.2 | 7.4 | 1660x3305x2255x2120 | 2600 | 430 |
| TDM-3000 | 3000 | 1500 | 750 | 13.8 | 11 | 1860x3860x2570x2420 | 3500 | 620 |
| TDM-4000 | 4000 | 2000 | 1000 | 12.8 | 13 | 2010x4100x2755x2550 | 4100 | 700 |
| TDM-6000 | 6000 | 3000 | 1500 | 11.2 | 18.5 | 2280x4965x3172x2935 | 6100 | 1100 |
| TDM-8000 | 8000 | 4000 | 2000 | 10.4 | 22 | 2500x5200x3655x3200 | 7900 | 1450 |
| TDM-10000 | 10000 | 5000 | 2500 | 9 | 30 | 2600x5500x3750x3400 | 9500 | 1650 |
Product Feature
The machine is mainly composed by the drum, the swinging rack and the frame.
Drum packed in the swinging rack, supported by four wheels and axial orientation by two block round, among the four support rollers, two of them produce a drum rotating by rotating power system;
The swinging rack is drive by a group of crankshaft swinging rod, crankshaft swinging rod is mounted on the frame, the swinging rack is support on the frame by bearing components.

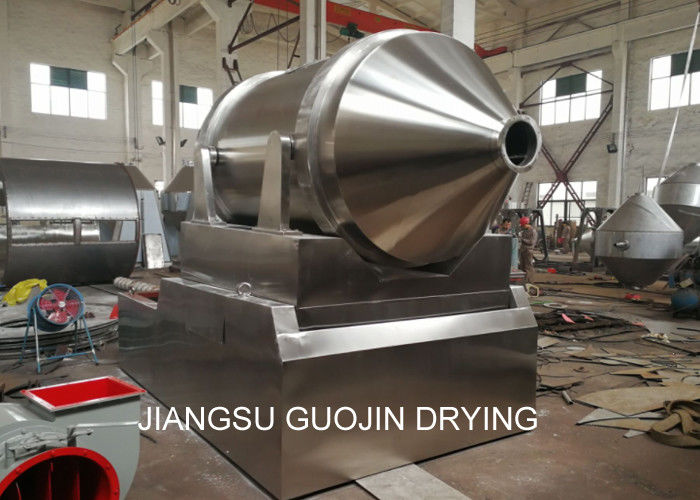

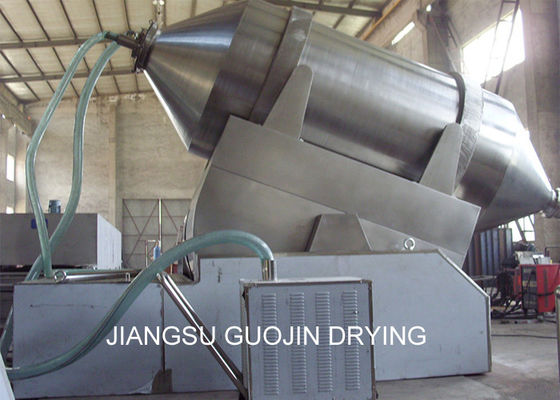

Product Show
