1.15KW Two Dimensional Motive Lab Mixing Equipment 150L
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | TDM-150 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Two Dimensional Motive Mixer/Lab Mixing Equipment | Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Model Type: | TDM-150 | Barrel Volume: | 150L |
| Loading Capacity: | 75L | Max Loading Weight: | 37.5kg/batch |
| No.of Swing&rotation: | 37r/min | Total Motor Power: | 1.15kw |
| Total Weight: | 190kg | Barrel Weigth: | 50kg |
| Overall Dimension: | 800x1050x1450x1340mm | ||
| Highlight: | Lab Mixing Equipment 150L,1.15KW Lab Mixing Equipment,lab mixer machine 150l |
||
Product Description
Two Dimensional Motive Mixer/Lab Mixing Equipment
TDM Series Two Dimensional Mixer Principle Two dimensional mixer mainly consists of three big parts namely, rotating cylinder, swinging rack and frame. The rotating cylinder lies on the swinging rack, supported by four wheels and its axial fixation is done by two stop wheels. Two of our wheels are driven by rotating power system to made the cylinder rotate. The swinging rack is driven by a set of crankshaft swinging bar which is mounted on the frame and the swinging rack is supported on the frame.
Technical Parameters
| Type | Barrel volume(L) | Loading capacity(L) | Max loading weight(kg/batch) | No.of swing&rotation(r/min) | Total motor power(kw) | Overall dimension(mm) | Total weight(kg) | Barrel weight(kg) |
| TDM-60 | 60 | 30 | 15 | 50 | 0.4 | 700x730x1100x990 | 115 | 15 |
| TDM-150 | 150 | 75 | 37.5 | 37 | 1.15 | 800x1050x1450x1340 | 190 | 50 |
| TDM-300 | 300 | 150 | 75 | 30 | 1.15 | 900x1350x1550x1400 | 340 | 60 |
| TDM-600 | 600 | 300 | 150 | 23.6 | 3 | 1170x1640x2050x1910 | 1150 | 140 |
| TDM-800 | 800 | 400 | 200 | 19.8 | 3 | 1320x1950x2150x2000 | 1600 | 200 |
| TDM-1000 | 1000 | 500 | 250 | 19.8 | 3 | 1300x2980x1894x1766 | 1700 | 240 |
| TDM-1500 | 1500 | 750 | 375 | 16.2 | 4.4 | 1500x3195x2250x2008 | 2000 | 320 |
| TDM-2000 | 2000 | 1000 | 500 | 16.2 | 7.4 | 1660x3305x2255x2120 | 2600 | 430 |
| TDM-3000 | 3000 | 1500 | 750 | 13.8 | 11 | 1860x3860x2570x2420 | 3500 | 620 |
| TDM-4000 | 4000 | 2000 | 1000 | 12.8 | 13 | 2010x4100x2755x2550 | 4100 | 700 |
| TDM-6000 | 6000 | 3000 | 1500 | 11.2 | 18.5 | 2280x4965x3172x2935 | 6100 | 1100 |
| TDM-8000 | 8000 | 4000 | 2000 | 10.4 | 22 | 2500x5200x3655x3200 | 7900 | 1450 |
| TDM-10000 | 10000 | 5000 | 2500 | 9 | 30 | 2600x5500x3750x3400 | 9500 | 1650 |
Product Feature
The rotating cylinder of TDM Two Dimensional Mixer can achieve two motions at the same time. One is the rotation of the cylinder and the other is swinging of the cylinder along the swinging rack. Materials to be mixed will be mixed from left to right and vice versa when the cylinder is swinging. As a result of these two motions,materials can be mixed fully in a short time. EYH Two Dimensional Mixer is suitable for mixing of all powder and granule materials.

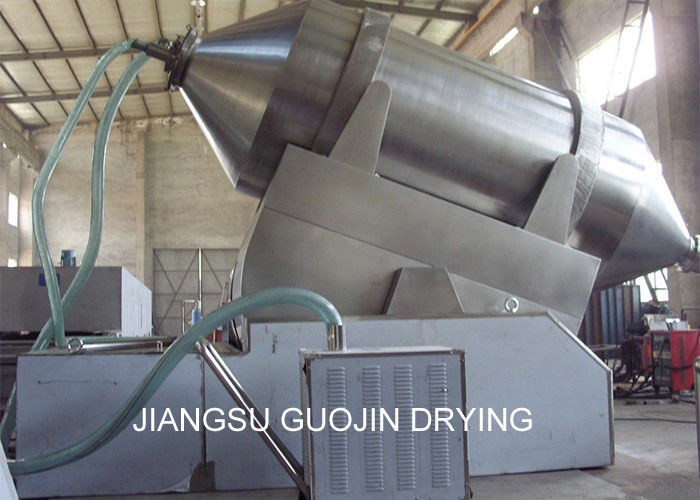

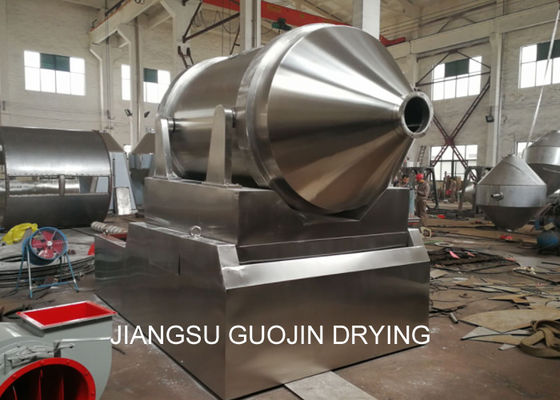

Product Show
