Trough Shape Double Paddle Mixer 0.3M3 For Pepper
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | GTM-300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Liquid Powder Trough Shape Double Paddle Mixer For Pepper | Model Type: | GTM-300 |
|---|---|---|---|
| Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing | Total Volume: | 0.3M3 |
| Feed Amount: | 60kg/batch | Stirring Speed: | 24rpm |
| Mixing Power: | 4kw | Discharge Power: | 1.5kw |
| Overall Dimension: | 1820x1240x680mm | Heating Source: | Electrical |
| Highlight: | Pepper Double Paddle Mixer,0.3M3 Double Paddle Mixer,0.3M3 Mixing Machine |
||
Product Description
Liquid Powder Trough Shape Double Paddle Mixer For Pepper
GTM series guttered mixer is widely used for mixing powder or wet materials, and can make the materials in different proportions mixed uniform.
The parts of the machine which contact with materials are made of stainless steel. The gap between blades and the inner wall of the cylinder is very small, so there's no "dead corner" in mixing. Seal devices are fixed on both ends of the stirring shaft to prevent the materials from rushing out. Feed hopper is controlled though buttons. So it's very convenient to feed or discharge materials. This type of mixer is widely used in pharmaceutical, chemical, foodstuff industry and so on.
Prodcut Working Principles and Features
1. This machine uses two motors, a stirring motor, which drives the mixing paddle to rotate the mixture material through the shaft. A discharge motor can be used to tilt the stirring tank to facilitate unloading.
2. There are one-way thrust ball bearings and radial thrust ball bearings at both ends of the stirring shaft to prevent radial turbulence caused by negative stress.
3. The sealing at both ends of the mixing shaft has been improved, and it can be completely sealed without contaminant material.
4. When jogging is used, it is easy to discharge, and it will not cause the phenomenon that the hopper tilts too much. The left end of the machine rotates. Because the worm wheel and the worm drive have self-locking effect, the mixing box can be dumped at any angle.
5. Add the raw material to the cylinder at one time, dry it for a period of time, add the adhesive or spray the liquid, or add the raw material and the adhesive to the working container at one time, and mix it into the ideal soft material.
Technical Parameters
| Type | Total volume(m3) | Feed amount(kg/batch) | Overall dimension(mm) | Stirring speed(rpm) | Power formxing(kw) | Power for discharge(kw) |
| 150 | 0.15 | 30 | 1480*1190*600 | 24 | 3 | 0.55 |
| 200 | 0.2 | 40 | 1480*1200*600 | 24 | 4 | 0.55 |
| 300 | 0.3 | 60 | 1820*1240*680 | 24 | 4 | 1.5 |
| 500 | 0.5 | 120 | 2000*1240*720 | 20 | 5.5 | 2.2 |
| 750 | 0.75 | 150 | 2300*1260*800 | 19 | 7.5 | 2.2 |
| 1000 | 1.0 | 270 | 2500*1300*860 | 19 | 7.5 | 3 |
| 1500 | 1.5 | 400 | 2600*1400*940 | 14 | 11 | 3 |
| 2000 | 2 | 550 | 3000*1500*1160 | 12 | 11 | 4 |
| 2500 | 2.5 | 630 | 3500*1620*1250 | 12 | 15 | 5.5 |
| 3000 | 3 | 750 | 3800*1780*1500 | 10 | 18.5 | 5.5 |
1. Mixing of the previous steps in the production of tablets and granules in the pharmaceutical industry.
2. Mixing of the food industry, such as condiments, dairy products, spices, cakes, etc.
3. Mix of feed production.
4. Mixing of powders and liquids in the chemical industry.

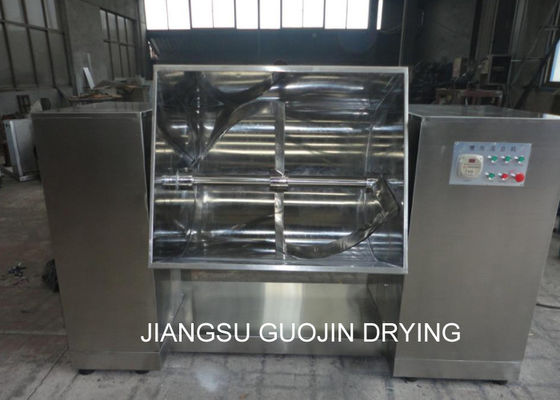

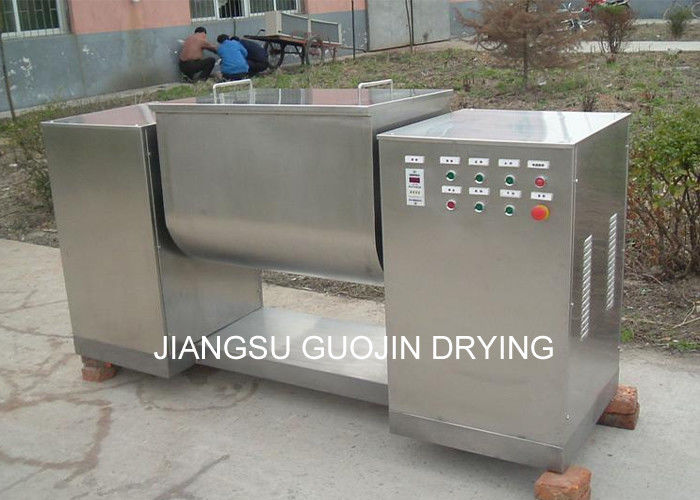

Product Show
electrical, steam, natural gas or other
