5KW Stainless Steel Medicine Fine Powder V Type Mixer 2M3

Product Description

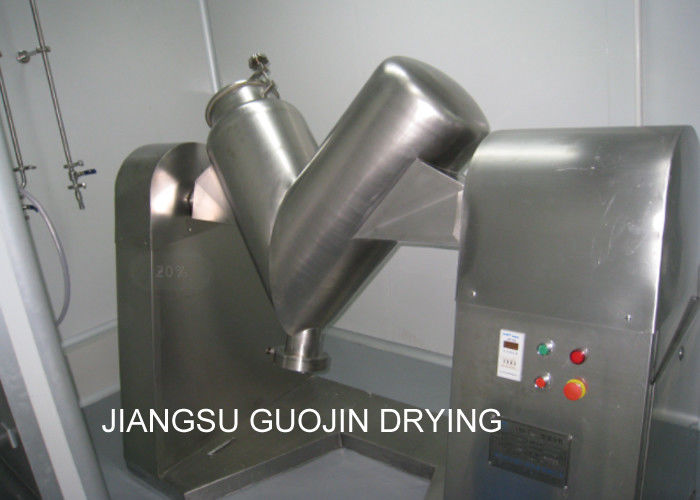

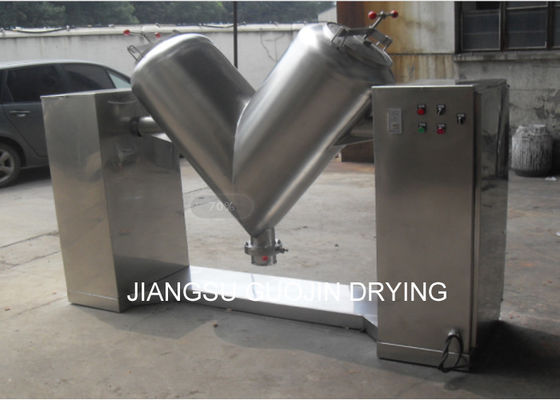

Stainless Steel Fine Powder V Type Mixer

V shape mixer is widely used for mixture of powder and granule in kinds of industries,such as agriculture,chemical,medicine,feed,coating, cosmetics and so on. The V-type mixer has features of evenly mixing, high efficiency and avoid the materials axxumulation. The fully enclosed structure also guarantee no leakage of materials during mixing process. The V-type mixer is one kind of basic mixing equipment in many industries.

The V type mixer are equipped with one motor and one reducer. The motor will be connect with the reducer with one belt. When the motor is power on, it will drive the running of reducer. Then coupled with the reducer, V-shaped barrel will start running to mix the inside materials up, down, left and right.





Product Installation Instructions

1. Connect the power first, setting the required mixing time, then turn on the switch, the machine begin running.

2. After the mixing, if you found that the position of discharging port is not the best position, you should turn off the power first, and adjust the position of discharging port.

3. Before you use the machine, you should check the appliance, if it is normal; and check the covers of mixing barrels, if the covers are tightly closed.

4. User should clean the machine after the finish of work, especially the barrels, prevent the residual materials.

5. Note that the reducer should be added enough lubricating oil(generally use the 30 # machine oil), and the transmission should be added grease lubricant.

6. Users should maintain the machine once each half of year, change the lubricating oil of reducer, check if the appliance is aging, the appliance should be replaced if it is aging.

7. After you have been using the machine for one year or more, you should make a big maintenance, check the gab between each parts, and appropriately adjust them, so that the machine can keep in good condition.





Product Features

1. Evently mixing, high efficiency and can avoid the materials accumulation

2. Compact structure, operation simple and maintenance convenience.

3. Using stainless steel material, prevent the mixing materials from being polluted.

4. No dead angle, no accumulation of materials, high speed, short mixing time and high uniform mixing.

5. Running steady and lower noise;

6. Equipped with a timing device, it can set mixing time to realize automatic stop.





Technical Parameters

Model	0.18	0.3	0.5	1.0	1.5	2.0	2.5	3.0	4.0	5.0
Productive capacity(kg/batch)	72	120	200	400	1600	800	1000	1200	1600	2000
Model of vacuum pump	W2	W2	W2	W3	W3	W3	W3	W4	W4	W4
Time of raw material fed in(min)	3-5	3-5	4-6	6-9	6-10	8-13	8-15	8-12	10-15	15-20
Mixing time(min)	4-8	6-10	6-10	6-10	6-10	6-10	6-10	8-12	8-12	8-12
Total volume(M3)	0.18	0.3	0.5	1.0	1.5	2.0	2.5	3.0	4.0	5.0
Stirring speed(r/min)	12	12	12	12	12	12	12	10	10	10
Motor power(kw)	1.1	1.1	2.2	4	4	5	7.5	7.5	11	15
Rotating height(mm)	1580	1760	2400	2840	3010	3240	3680	3700	4350	4800
Weight(kg)	280	320	550	950	1020	1600	2040	2300	2800	3250







Technological Process





Production Show
