V Shape Flour/Powder Vacuum Blender Mixing Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | VTM-1.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | V Shape Flour/Powder Vacuum Blender Mixing Equipment | Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Model Type: | VTM-1.5 | Production Capacity: | 1600kg/batch |
| Model Of Vacuum Pump: | W3 | Time Of Raw Material Fed In: | 6-10min |
| Mixing Time: | 6-10min | Total Volume: | 1.5M3 |
| Stirring Speed: | 12r/min | Motor Power: | 4kw |
| Rotating Height: | 3010mm | Weight: | 1020kg |
| Highlight: | mixing equipment,blending machine |
||
Product Description

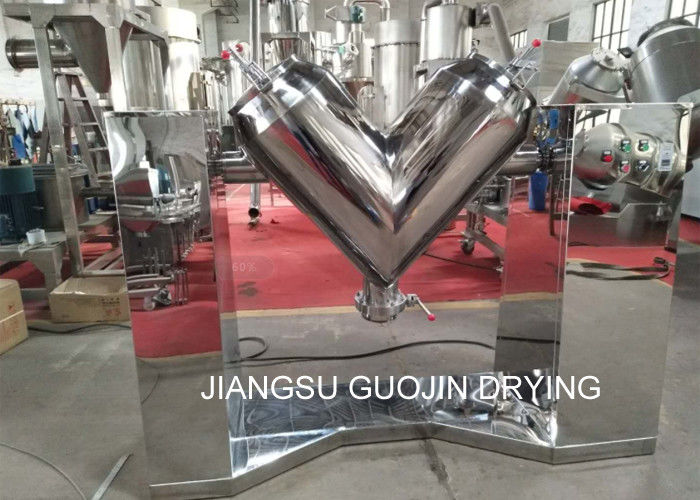

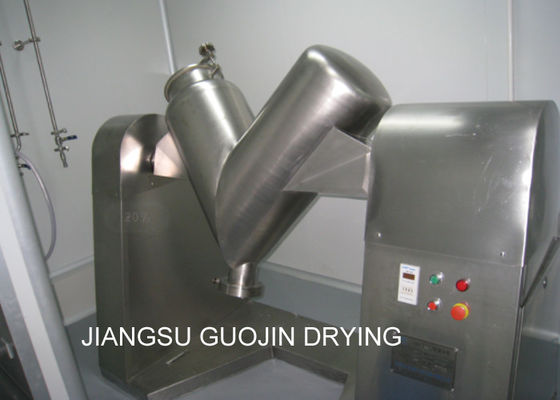

V Shape Flour/Powder Vacuum Blender Mixing Equipment
V shape mixer is widely used for mixture of powder and granule in kinds of industries,such as agriculture,chemical,medicine,feed,coating, cosmetics and so on. The V-type mixer has features of evenly mixing, high efficiency and avoid the materials axxumulation. The fully enclosed structure also guarantee no leakage of materials during mixing process. The V-type mixer is one kind of basic mixing equipment in many industries.
The V type mixer are equipped with one motor and one reducer. The motor will be connect with the reducer with one belt. When the motor is power on, it will drive the running of reducer. Then coupled with the reducer, V-shaped barrel will start running to mix the inside materials up, down, left and right.
1. Connect the power first, setting the required mixing time, then turn on the switch, the machine begin running.
2. After the mixing, if you found that the position of discharging port is not the best position, you should turn off the power first, and adjust the position of discharging port.
3. Before you use the machine, you should check the appliance, if it is normal; and check the covers of mixing barrels, if the covers are tightly closed.
4. User should clean the machine after the finish of work, especially the barrels, prevent the residual materials.
5. Note that the reducer should be added enough lubricating oil(generally use the 30 # machine oil), and the transmission should be added grease lubricant.
6. Users should maintain the machine once each half of year, change the lubricating oil of reducer, check if the appliance is aging, the appliance should be replaced if it is aging.
7. After you have been using the machine for one year or more, you should make a big maintenance, check the gab between each parts, and appropriately adjust them, so that the machine can keep in good condition.
Technical Parameters
| Model | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 5.0 |
| Productive capacity(kg/batch) | 72 | 120 | 200 | 400 | 1600 | 800 | 1000 | 1200 | 1600 | 2000 |
| Model of vacuum pump | W2 | W2 | W2 | W3 | W3 | W3 | W3 | W4 | W4 | W4 |
| Time of raw material fed in(min) | 3-5 | 3-5 | 4-6 | 6-9 | 6-10 | 8-13 | 8-15 | 8-12 | 10-15 | 15-20 |
| Mixing time(min) | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 8-12 | 8-12 | 8-12 |
| Total volume(M3) | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 5.0 |
| Stirring speed(r/min) | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 10 | 10 | 10 |
| Motor power(kw) | 1.1 | 1.1 | 2.2 | 4 | 4 | 5 | 7.5 | 7.5 | 11 | 15 |
| Rotating height(mm) | 1580 | 1760 | 2400 | 2840 | 3010 | 3240 | 3680 | 3700 | 4350 | 4800 |
| Weight(kg) | 280 | 320 | 550 | 950 | 1020 | 1600 | 2040 | 2300 | 2800 | 3250 |
Technological Process
Production Show
electrical, steam, natural gas or other
