Horizontal Vibrating Fluid Bed Dryer 5.4M2 For Chicken Essence

Horizontal Vibrating Fluid Bed Dryer 5.4M2 For Chicken Essence

Product Details:

Place of Origin: China
Brand Name: Guojin
Certification: CE
Model Number: VFBD-6x0.9

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export Carton
Delivery Time: 20-30days
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Item Name: Horizontal Vibrating Fluid Bed Dryer For Essence Of Chicken Model Type: VFBD-6x0.9
Application: Food Processing,Chemical Processing Area Of Fluidzed Bed: 5.4M2
Inlet Air Temperature: 70-140 Outlet Air Temperature: 40-70
Water Evaporation: 140-170kg/h Vibration Motor Model: YZS30-6
Vibration Motor Power: 2.2x2 KW Heating Source: Steam, Electricity
Highlight:

Horizontal Vibrating Fluid Bed Dryer

,

Chicken Essence Fluid Bed Dryer

,

5.4m2 vibro fluid bed dryer

Product Description

Horizontal Vibrating Fluid Bed Dryer For Essence Of Chicken

Material is fed into the dryer from feeding port, under the action of vibrating force, material moves forward with the fluidized
state continuously along the horizontal direction. Hot air passes through fluid bed from bottom to up and does heat exchange with damp material. After the powder is collected by cyclone separator, damp air is exhausted out. Dried product is discharged from discharging port.



Fluid Bed Dryer Working Principle

The raw material is fed into the dryer from the feeding inlet and the material will continue moving along with the fluidized bed level under the action of vibration. The hot air passes through fluidized bed and carries out heat exchange with damp raw materials. The wet air is exhausted out by the cyclone separator and the dried material will be discharged from the discharge outlet.





Fluid Bed Dryer Features

  1. . Raw material is heated evenly, heat exchange is fully, and large intensity of drying
  2. .Use vibration motor as vibration source. It is smooth in running and convenient in maintenance. The noise is low and the life is long.
  3. .The state of fluidization is uniform and no dead gaps and broken phenomenon. Therefore the dried, cool can be got.
  4. .It is good in adjustment and width in field of application. The thickness of raw material and the speed of raw material to be moved inside the machine and the change of vibration breadth can be realized through steeples.
  5. .It is small to damage the surface of raw material, so it can be used for raw materials that are easy broken. If the granule is not normal, the effect of process can not be effected.
  6. .Because of adapting the structure of fully seat, it is effective to prevent from the cross pollution of raw materials and the working environment is clean.
  7. .Basically the drying time is on average, the staying time is short, and the thickness of fluidized bed is also very short, 2-5cm.

Fluid Bed Dryer Charactaristics

♦Materials have been heated evenly, full exchanged the heat. It is a process of large intensity of drying.
♦ The vibration motor drive has been used, with the advantages of smooth operation, easy maintenance, low noise, long life
♦ It flows stability, with no dead angle and blown through phenomenon.
♦ It is adjustable, wide adaptation. The moving speed of the bed depth and the material in the dryer can achieve stepless adjustment by the changes of the amplitude.
♦ It makes small damage to the surface of the material, can be used for the drying of the fragile materials and will not affect the work results if the particles are irregular.
♦ It uses full closed structure; effectively prevent the cross-contamination of the materials and air, clean operation environment.
♦ Materials drying time is basic equality, residence time is short, bed depth is small, usually 2 ~ 5cm.



Fluid Bed Dryer Technical Parameters

Model A B C D E F Weight(kg)
VFBD-3x0.3 3000 300 1350 900 430 1650 1250
VFBD-4.5x0.3 4500 300 1350 900 430 1650 1560
VFBD-4.5X0.45 4500 450 1550 950 430 1700 1670
VFBD-4.5X0.6 4500 600 1650 950 430 1700 1910
VFBD-6x0.45 6000 450 1650 950 430 1700 2100
VFBD-6x0.6 6000 600 1700 1000 500 1700 2410
VFBD-6x0.75 6000 750 1850 1000 600 1850 2340
VFBD-6x0.9 6000 900 2000 1000 600 1850 3160
VFBD-7.5x0.6 7500 600 1850 1000 600 1850 3200
VFBD-7.5x0.75 7500 750 2000 1000 600 1850 3600
VFBD-7.5x0.9 7500 900 2100 1000 600 1850 4140
VFBD-7.5x1.2 7500 1200 2500 1150 800 2050 5190
VFBD-7.5x1.5 7500 1500 2850 1570 800 2370 6426
VFBD-8x1.8 8000 1800 3250 1800 900 2700 8600



Model Area of fluidized bed(M2) Inlet air temperature(oC) Outlet air temperature(oC) Water evaporation(kg/h) Vibration motor model Vibration motor power
VFBD-3x0.3 0.9 70-140 40-70 20-35 YZS8-6 0.75x2
VFBD-4.5x0.3 1.35 35-50 YZS10-6 0.75x2
VFBD-4.5X0.45 2.025 50-70 YZS15-6 1.1x2
VFBD-4.5X0.6 2.7 70-90 YZS15-6 1.1x2
VFBD-6x0.45 2.7 80-100 YZS15-6 1.5x2
VFBD-6x0.6 3.6 100-130 YZS20-6 1.5x2
VFBD-6x0.75 4.5 120-170 YZS20-6 2.2x2
VFBD-6x0.9 5.4 140-170 YZS30-6 2.2x2
VFBD-7.5x0.6 4.5 130-150 YZS30-6 2.2x2
VFBD-7.5x0.75 5.625 150-180 YZS40-6 3.0x2
VFBD-7.5x0.9 6.75 160-210 YZS40-6 3.0x2
VFBD-7.5x1.2 9.0 200-280 YZS50-6 3.7x2
VFBD-7.5x1.5 11.25 230-330 YZS50-6 3.7x2
VFBD-8x1.8 14.4 290-420 YZS75-6 5.5x2











Fluid Bed Dryer Application

This dryer is widely used for drying, cooling, wetting of the products in the light industry, chemical industry, pharmaceutical industry, foodstuff, and etc.

Applicable Materials:

Boric Acid, Borax, Dihydroxybenzene, Malic Acid, Maleic Acid, Monosodium Glutamate, Oxalate, Potassium, Permanganate, Sesame, Pentaerythritol, HPAM, Hypha Protein, Sodium Sulfate, Sodium Borate, Plastic Archon, Catalyst, Baking Soda, Detergent, Quartz Sand, Bean Pulp, Edible Sugar, Refine Salt, Bean, Seeds, Mining Slag, Activated Clay, Compound Fertilizer, and etc.





Fluid Bed Dryer Flow

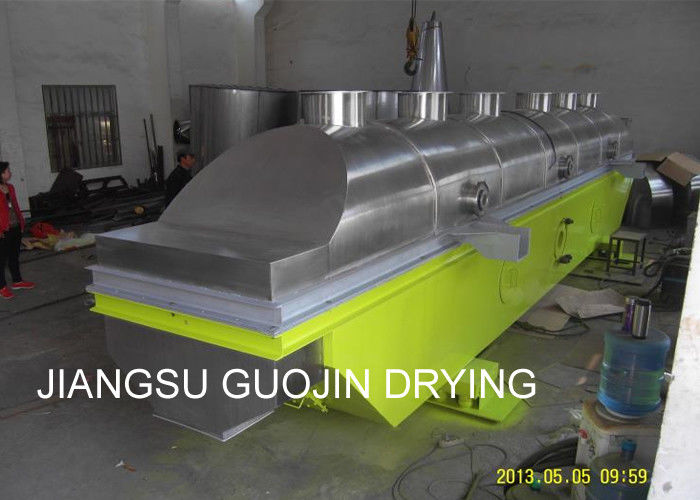

Horizontal Vibrating Fluid Bed Dryer 5.4M2 For Chicken Essence 0



Fluid Bed Dryer Show

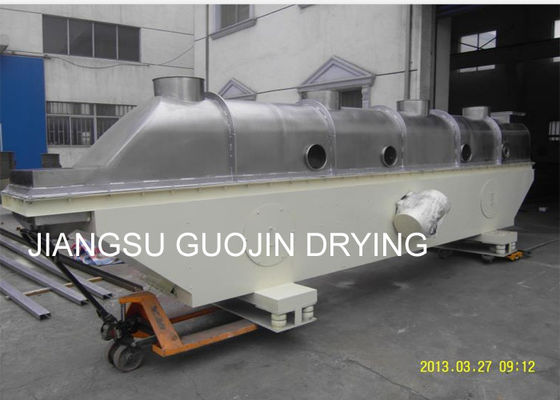

Horizontal Vibrating Fluid Bed Dryer 5.4M2 For Chicken Essence 1
