4.5M2 Continuous Fluid Bed Dryer For Isolated Soya Protein
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | CE |
| Model Number: | VFBD-6x0.75 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Continuous Fluid Bed Dryer For Isolated Soya Protein | Model Type: | VFBD-6x0.75 |
|---|---|---|---|
| Application: | Food Processing,Chemical Processing | Area Of Fluidzed Bed: | 4.5M2 |
| Inlet Air Temperature: | 70-140 | Outlet Air Temperature: | 40-70 |
| Water Evaporation: | 120-170kg/h | Vibration Motor Model: | YZS 20-6 |
| Vibration Motor Power: | 2.2x2KW | Heating Source: | Steam, Electricity |
| Highlight: | Continuous Fluid Bed Dryer,Isolated Soya Protein Fluid Bed Dryer,4.5m2 continuous fluidized bed dryer |
||
Product Description
Continuous Fluid Bed Dryer For Isolated Soya Protein
Material is fed into the dryer from feeding port, under the action of vibrating force, material moves forward with the fluidized
state continuously along the horizontal direction. Hot air passes through fluid bed from bottom to up and does heat exchange with damp material. After the powder is collected by cyclone separator, damp air is exhausted out. Dried product is discharged from discharging port.
Fluid Bed Dryer Working Principle
The material feeding port into the machines, in the air flow and vibration of the dual role, materials for continuous casting along the fluidized bed forward movement. Hot air upward through the fluidized bed and wet materials back out heat, dust removal by the cyclone separator after discharge, dry material by the material mouth eduction.
Fluid Bed Dryer Feature
- . Raw material is heated evenly, heat exchange is fully, and large intensity of drying
- .Use vibration motor as vibration source. It is smooth in running and convenient in maintenance. The noise is low and the life is long.
- .The state of fluidization is uniform and no dead gaps and broken phenomenon. Therefore the dried, cool can be got.
- .It is good in adjustment and width in field of application. The thickness of raw material and the speed of raw material to be moved inside the machine and the change of vibration breadth can be realized through steeples.
- .It is small to damage the surface of raw material, so it can be used for raw materials that are easy broken. If the granule is not normal, the effect of process can not be effected.
- .Because of adapting the structure of fully seat, it is effective to prevent from the cross pollution of raw materials and the working environment is clean.
- .Basically the drying time is on average, the staying time is short, and the thickness of fluidized bed is also very short, 2-5cm.
Fluid Bed Dryer Charactaristics
♦Materials have been heated evenly, full exchanged the heat. It is a process of large intensity of drying.
♦ The vibration motor drive has been used, with the advantages of smooth operation, easy maintenance, low noise, long life
♦ It flows stability, with no dead angle and blown through phenomenon.
♦ It is adjustable, wide adaptation. The moving speed of the bed depth and the material in the dryer can achieve stepless adjustment by the changes of the amplitude.
♦ It makes small damage to the surface of the material, can be used for the drying of the fragile materials and will not affect the work results if the particles are irregular.
♦ It uses full closed structure; effectively prevent the cross-contamination of the materials and air, clean operation environment.
♦ Materials drying time is basic equality, residence time is short, bed depth is small, usually 2 ~ 5cm.
Fluid Bed Dryer Technical Parameters
| Model | A | B | C | D | E | F | Weight(kg) |
| VFBD-3x0.3 | 3000 | 300 | 1350 | 900 | 430 | 1650 | 1250 |
| VFBD-4.5x0.3 | 4500 | 300 | 1350 | 900 | 430 | 1650 | 1560 |
| VFBD-4.5X0.45 | 4500 | 450 | 1550 | 950 | 430 | 1700 | 1670 |
| VFBD-4.5X0.6 | 4500 | 600 | 1650 | 950 | 430 | 1700 | 1910 |
| VFBD-6x0.45 | 6000 | 450 | 1650 | 950 | 430 | 1700 | 2100 |
| VFBD-6x0.6 | 6000 | 600 | 1700 | 1000 | 500 | 1700 | 2410 |
| VFBD-6x0.75 | 6000 | 750 | 1850 | 1000 | 600 | 1850 | 2340 |
| VFBD-6x0.9 | 6000 | 900 | 2000 | 1000 | 600 | 1850 | 3160 |
| VFBD-7.5x0.6 | 7500 | 600 | 1850 | 1000 | 600 | 1850 | 3200 |
| VFBD-7.5x0.75 | 7500 | 750 | 2000 | 1000 | 600 | 1850 | 3600 |
| VFBD-7.5x0.9 | 7500 | 900 | 2100 | 1000 | 600 | 1850 | 4140 |
| VFBD-7.5x1.2 | 7500 | 1200 | 2500 | 1150 | 800 | 2050 | 5190 |
| VFBD-7.5x1.5 | 7500 | 1500 | 2850 | 1570 | 800 | 2370 | 6426 |
| VFBD-8x1.8 | 8000 | 1800 | 3250 | 1800 | 900 | 2700 | 8600 |
| Model | Area of fluidized bed(M2) | Inlet air temperature(oC) | Outlet air temperature(oC) | Water evaporation(kg/h) | Vibration motor model | Vibration motor power |
| VFBD-3x0.3 | 0.9 | 70-140 | 40-70 | 20-35 | YZS8-6 | 0.75x2 |
| VFBD-4.5x0.3 | 1.35 | 35-50 | YZS10-6 | 0.75x2 | ||
| VFBD-4.5X0.45 | 2.025 | 50-70 | YZS15-6 | 1.1x2 | ||
| VFBD-4.5X0.6 | 2.7 | 70-90 | YZS15-6 | 1.1x2 | ||
| VFBD-6x0.45 | 2.7 | 80-100 | YZS15-6 | 1.5x2 | ||
| VFBD-6x0.6 | 3.6 | 100-130 | YZS20-6 | 1.5x2 | ||
| VFBD-6x0.75 | 4.5 | 120-170 | YZS20-6 | 2.2x2 | ||
| VFBD-6x0.9 | 5.4 | 140-170 | YZS30-6 | 2.2x2 | ||
| VFBD-7.5x0.6 | 4.5 | 130-150 | YZS30-6 | 2.2x2 | ||
| VFBD-7.5x0.75 | 5.625 | 150-180 | YZS40-6 | 3.0x2 | ||
| VFBD-7.5x0.9 | 6.75 | 160-210 | YZS40-6 | 3.0x2 | ||
| VFBD-7.5x1.2 | 9.0 | 200-280 | YZS50-6 | 3.7x2 | ||
| VFBD-7.5x1.5 | 11.25 | 230-330 | YZS50-6 | 3.7x2 | ||
| VFBD-8x1.8 | 14.4 | 290-420 | YZS75-6 | 5.5x2 |
Fluid Bed Dryer Application
.Inorganic: sulfate, fine bleaching pink, sodium metasilicate, silica sand, boric acid sodium, activated carbon, sulfate, sodium chlorate, borax, boric acid, XiuHuaJia, brominated sodium
.Organic matter: benzene 2 phenol, oxalic acid, hydroquinone, fumarate, cologne acid, catechol, between the benzene 2 phenol, coke powder, tartaric acid, dichloroisocyanurate, G salt, R salt.
.Food and feed additive: soybean protein isolated, glutamic acid, caramel pigment, yeast powder, citric acid, citric acid sodium, glucose, lactose, sugar.
.Pesticide: willy aldehyde in spirit of rotor granules.
.Chemical agents: sodium percarbonate
.The high polymer: PE, PAM
Fluid Bed Dryer Flow

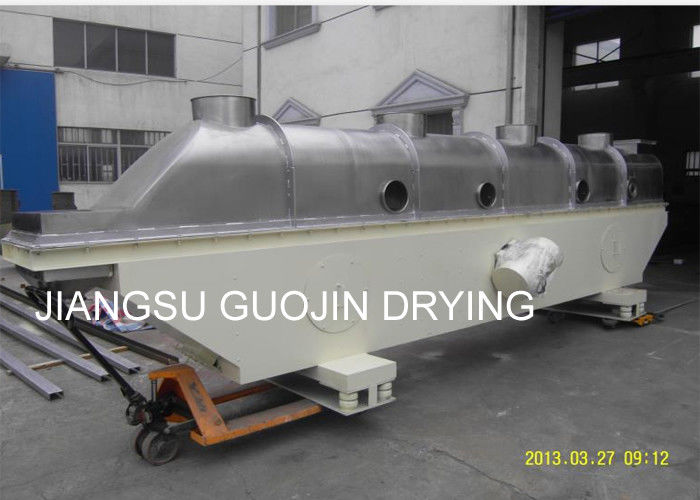

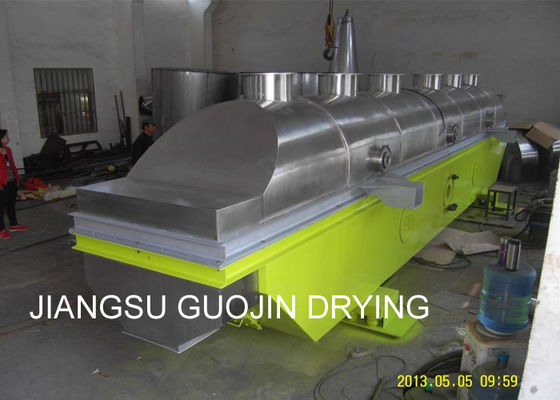

Fluid Bed Dryer Show
