2.8M2 Milk Powder Continuous Compact Vibrating Fluid Bed Dryer
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | CE |
| Model Number: | VFBD-6x0.45 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Continuous Milk Powder Compact Vibrating Fluid Bed Dryers | Model Type: | VFBD-6x0.45 |
|---|---|---|---|
| Application: | Food Processing | Area Of Fluidzed Bed: | 2.8M2 |
| Inlet Air Temperature: | 70-140 | Outlet Air Temperature: | 40-70 |
| Water Evaporation: | 80-100kg/h | Vibration Motor Model: | YZS 15-6 |
| Vibration Motor Power: | 1.5x2kw | Heating Source: | Steam, Electricity |
| Highlight: | Compact Vibrating Fluid Bed Dryer,Milk Powder Vibrating Fluid Bed Dryer,2.8M2 Continuous Fluid Bed Dryer |
||
Product Description
Continuous Milk Powder Compact Vibrating Fluid Bed Dryers
Material is fed into the dryer from feeding port, under the action of vibrating force, material moves forward with the fluidized
state continuously along the horizontal direction. Hot air passes through fluid bed from bottom to up and does heat exchange with damp material. After the powder is collected by cyclone separator, damp air is exhausted out. Dried product is discharged from discharging port.
Fluid Bed Dryer Working Principle
The material has been feed into the salt fluidized bed dryer / fluidized bed cooler, under the dual function of the vibration and air flow, the material move along the fluid bed as throwing forward continuously. Hot air upward through the fluid bed and wet materials from the heat after the exchange, after the cyclone dust emissions from dry materials from discharging from the discharging end.
Fluid Bed Dryer Features
1.Upper bed and bottom bed adopt the new quit-open type structure, upper bed can be moved quickly. It is easy to clean completely.
2.Bed plate adopts laser punching way to make, it can avoid the plate be out of shape during the common punching process
3.Bottom plate is supported by stainless steel seamless tube, the structure of bed is stronger, and operational life is long
4.Material is heated uniformly, heat exchange is full, drying intensity is high, energy saving is about 30% than common dryer.
5.Vibrating source is vibrating motor, its work is stable, easy to maintain, noisy is low, life is long.
6.Fluidized state is stable, no dead corner or broken out phenomenon
7.Adjustability is good, and application scope is wide
8.Small damage to the surface of material, it can be used for drying breakable materials. It doesn’ effect the work efficiency
when the shape of material is irregular.
9.Adopts all closed structure, it can avoid the cross pollution between material and air effectively. Work environment is clean.
Fluid Bed Dryer Charactaristics
♦Materials have been heated evenly, full exchanged the heat. It is a process of large intensity of drying.
♦ The vibration motor drive has been used, with the advantages of smooth operation, easy maintenance, low noise, long life
♦ It flows stability, with no dead angle and blown through phenomenon.
♦ It is adjustable, wide adaptation. The moving speed of the bed depth and the material in the dryer can achieve stepless adjustment by the changes of the amplitude.
♦ It makes small damage to the surface of the material, can be used for the drying of the fragile materials and will not affect the work results if the particles are irregular.
♦ It uses full closed structure; effectively prevent the cross-contamination of the materials and air, clean operation environment.
♦ Materials drying time is basic equality, residence time is short, bed depth is small, usually 2 ~ 5cm.
Fluid Bed Dryer Technical Parameters
| Model | A | B | C | D | E | F | Weight(kg) |
| VFBD-3x0.3 | 3000 | 300 | 1350 | 900 | 430 | 1650 | 1250 |
| VFBD-4.5x0.3 | 4500 | 300 | 1350 | 900 | 430 | 1650 | 1560 |
| VFBD-4.5X0.45 | 4500 | 450 | 1550 | 950 | 430 | 1700 | 1670 |
| VFBD-4.5X0.6 | 4500 | 600 | 1650 | 950 | 430 | 1700 | 1910 |
| VFBD-6x0.45 | 6000 | 450 | 1650 | 950 | 430 | 1700 | 2100 |
| VFBD-6x0.6 | 6000 | 600 | 1700 | 1000 | 500 | 1700 | 2410 |
| VFBD-6x0.75 | 6000 | 750 | 1850 | 1000 | 600 | 1850 | 2340 |
| VFBD-6x0.9 | 6000 | 900 | 2000 | 1000 | 600 | 1850 | 3160 |
| VFBD-7.5x0.6 | 7500 | 600 | 1850 | 1000 | 600 | 1850 | 3200 |
| VFBD-7.5x0.75 | 7500 | 750 | 2000 | 1000 | 600 | 1850 | 3600 |
| VFBD-7.5x0.9 | 7500 | 900 | 2100 | 1000 | 600 | 1850 | 4140 |
| VFBD-7.5x1.2 | 7500 | 1200 | 2500 | 1150 | 800 | 2050 | 5190 |
| VFBD-7.5x1.5 | 7500 | 1500 | 2850 | 1570 | 800 | 2370 | 6426 |
| VFBD-8x1.8 | 8000 | 1800 | 3250 | 1800 | 900 | 2700 | 8600 |
| Model | Area of fluidized bed(M2) | Inlet air temperature(oC) | Outlet air temperature(oC) | Water evaporation(kg/h) | Vibration motor model | Vibration motor power |
| VFBD-3x0.3 | 0.9 | 70-140 | 40-70 | 20-35 | YZS8-6 | 0.75x2 |
| VFBD-4.5x0.3 | 1.35 | 35-50 | YZS10-6 | 0.75x2 | ||
| VFBD-4.5X0.45 | 2.025 | 50-70 | YZS15-6 | 1.1x2 | ||
| VFBD-4.5X0.6 | 2.7 | 70-90 | YZS15-6 | 1.1x2 | ||
| VFBD-6x0.45 | 2.7 | 80-100 | YZS15-6 | 1.5x2 | ||
| VFBD-6x0.6 | 3.6 | 100-130 | YZS20-6 | 1.5x2 | ||
| VFBD-6x0.75 | 4.5 | 120-170 | YZS20-6 | 2.2x2 | ||
| VFBD-6x0.9 | 5.4 | 140-170 | YZS30-6 | 2.2x2 | ||
| VFBD-7.5x0.6 | 4.5 | 130-150 | YZS30-6 | 2.2x2 | ||
| VFBD-7.5x0.75 | 5.625 | 150-180 | YZS40-6 | 3.0x2 | ||
| VFBD-7.5x0.9 | 6.75 | 160-210 | YZS40-6 | 3.0x2 | ||
| VFBD-7.5x1.2 | 9.0 | 200-280 | YZS50-6 | 3.7x2 | ||
| VFBD-7.5x1.5 | 11.25 | 230-330 | YZS50-6 | 3.7x2 | ||
| VFBD-8x1.8 | 14.4 | 290-420 | YZS75-6 | 5.5x2 |
Fluid Bed Dryer Application
Vibrating fluid bed dryer is widely used in light industry, chemical industry, foodstuff, agricultural products, powder, granule,
and small block material in pharmaceutical industry. Material examples are as following: refined salt, aginomoto, citric acid,
oxalate, potassium permanganate, sesame, pentaerythritol, HPAM, feed, hypha protein, sodium sulfate, plastic archon, catalyst,
stripping and slicing potato, baking soda, detergent, quartz sand, soybean billet, ban pulp, metal powder, boric acid, sodium
borate, activated clay, compound fertilizer, etc.
Fluid Bed Dryer Flow

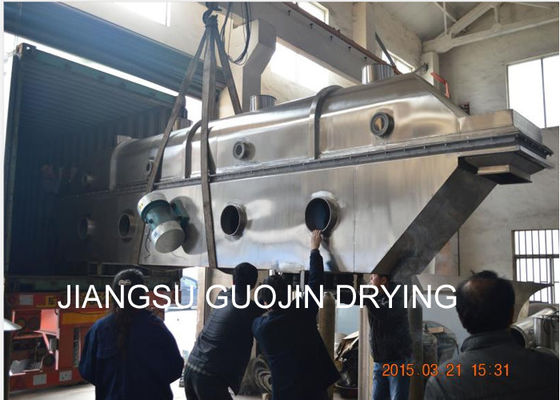

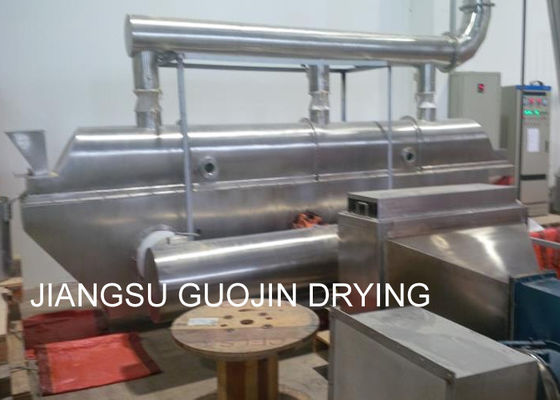

Fluid Bed Dryer Show
