Rectilinear Vibrating Fluid Bed Drying Equipment 2.7M2

Rectilinear Vibrating Fluid Bed Drying Equipment 2.7M2

Product Details:

Place of Origin: China
Brand Name: Guojin
Certification: CE
Model Number: VFBD-4.5x0.6

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export Carton
Delivery Time: 20-30days
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Item Name: Customized Rectilinear Vibrating Chicken Essence Fluid Bed Drying Equipment Model Type: VFBD-4.5x0.6
Application: Food Processing Area Of Fluidzed Bed: 2.7M2
Inlet Air Temperature: 70-140 Outlet Air Temperature: 40-70
Water Evaporation: 70-90kg/h Vibration Motor Model: YZS15-6
Vibration Motor Power: 1.1x2kw Heating Source: Steam, Electricity
Highlight:

Rectilinear Fluid Bed Drying Equipment

,

Fluid Bed Drying Equipment 2.7M2

,

Rectilinear Vibrating Fluid Bed Dryer

Product Description

Customized Rectilinear Vibrating Chicken Essence Fluid Bed Drying Equipment

Material is fed into the dryer from feeding port, under the action of vibrating force, material moves forward with the fluidized
state continuously along the horizontal direction. Hot air passes through fluid bed from bottom to up and does heat exchange with damp material. After the powder is collected by cyclone separator, damp air is exhausted out. Dried product is discharged from discharging port.

Fluid Bed Dryer Working Principle

The material has been feed into the salt fluidized bed dryer / fluidized bed cooler, under the dual function of the vibration and air flow, the material move along the fluid bed as throwing forward continuously. Hot air upward through the fluid bed and wet materials from the heat after the exchange, after the cyclone dust emissions from dry materials from discharging from the discharging end.



Fluid Bed Dryer Features

1. The vibration is created by motor. It is stable in operation and convenient in maintenance, low noise and long life.
2. High heat efficiency, raw material is heated evenly and heat exchange is fully used and dry capacity is high. Compared with ordinary drier, the energy can be saved about 30%. The state of fluidization is uniform and no dead gaps or broken phenomenon so as to have dry, cool products.
3. It is good in regulation and wide in suitability. The thickness of raw material layer and movable speed inside the machine and the amplitude can be adjusted.
4. It is small for damaging the surface of raw material. The equipment can be used for drying raw materials that are easy broken. The drying effect can not be affected even if raw materials have irregular shape.
5. It is effective to prevent cross pollution between raw material and air because the equipment adapts fully closed structure. 6. 6. The environment of operation is clean.
7. You can string multi-set to raised capacity of raw materials, such as polyacrylamide.



Fluid Bed Dryer Charactaristics

♦Materials have been heated evenly, full exchanged the heat. It is a process of large intensity of drying.
♦ The vibration motor drive has been used, with the advantages of smooth operation, easy maintenance, low noise, long life
♦ It flows stability, with no dead angle and blown through phenomenon.
♦ It is adjustable, wide adaptation. The moving speed of the bed depth and the material in the dryer can achieve stepless adjustment by the changes of the amplitude.
♦ It makes small damage to the surface of the material, can be used for the drying of the fragile materials and will not affect the work results if the particles are irregular.
♦ It uses full closed structure; effectively prevent the cross-contamination of the materials and air, clean operation environment.
♦ Materials drying time is basic equality, residence time is short, bed depth is small, usually 2 ~ 5cm.



Fluid Bed Dryer Technical Parameters

Model A B C D E F Weight(kg)
VFBD-3x0.3 3000 300 1350 900 430 1650 1250
VFBD-4.5x0.3 4500 300 1350 900 430 1650 1560
VFBD-4.5X0.45 4500 450 1550 950 430 1700 1670
VFBD-4.5X0.6 4500 600 1650 950 430 1700 1910
VFBD-6x0.45 6000 450 1650 950 430 1700 2100
VFBD-6x0.6 6000 600 1700 1000 500 1700 2410
VFBD-6x0.75 6000 750 1850 1000 600 1850 2340
VFBD-6x0.9 6000 900 2000 1000 600 1850 3160
VFBD-7.5x0.6 7500 600 1850 1000 600 1850 3200
VFBD-7.5x0.75 7500 750 2000 1000 600 1850 3600
VFBD-7.5x0.9 7500 900 2100 1000 600 1850 4140
VFBD-7.5x1.2 7500 1200 2500 1150 800 2050 5190
VFBD-7.5x1.5 7500 1500 2850 1570 800 2370 6426
VFBD-8x1.8 8000 1800 3250 1800 900 2700 8600



Model Area of fluidized bed(M2) Inlet air temperature(oC) Outlet air temperature(oC) Water evaporation(kg/h) Vibration motor model Vibration motor power
VFBD-3x0.3 0.9 70-140 40-70 20-35 YZS8-6 0.75x2
VFBD-4.5x0.3 1.35 35-50 YZS10-6 0.75x2
VFBD-4.5X0.45 2.025 50-70 YZS15-6 1.1x2
VFBD-4.5X0.6 2.7 70-90 YZS15-6 1.1x2
VFBD-6x0.45 2.7 80-100 YZS15-6 1.5x2
VFBD-6x0.6 3.6 100-130 YZS20-6 1.5x2
VFBD-6x0.75 4.5 120-170 YZS20-6 2.2x2
VFBD-6x0.9 5.4 140-170 YZS30-6 2.2x2
VFBD-7.5x0.6 4.5 130-150 YZS30-6 2.2x2
VFBD-7.5x0.75 5.625 150-180 YZS40-6 3.0x2
VFBD-7.5x0.9 6.75 160-210 YZS40-6 3.0x2
VFBD-7.5x1.2 9.0 200-280 YZS50-6 3.7x2
VFBD-7.5x1.5 11.25 230-330 YZS50-6 3.7x2
VFBD-8x1.8 14.4 290-420 YZS75-6 5.5x2











Fluid Bed Dryer Application

Vibrating fluid bed dryer is widely used in light industry, chemical industry, foodstuff, agricultural products, powder, granule,
and small block material in pharmaceutical industry. Material examples are as following: refined salt, aginomoto, citric acid,
oxalate, potassium permanganate, sesame, pentaerythritol, HPAM, feed, hypha protein, sodium sulfate, plastic archon, catalyst,
stripping and slicing potato, baking soda, detergent, quartz sand, soybean billet, ban pulp, metal powder, boric acid, sodium
borate, activated clay, compound fertilizer, etc.







Fluid Bed Dryer Flow

Rectilinear Vibrating Fluid Bed Drying Equipment 2.7M2 0

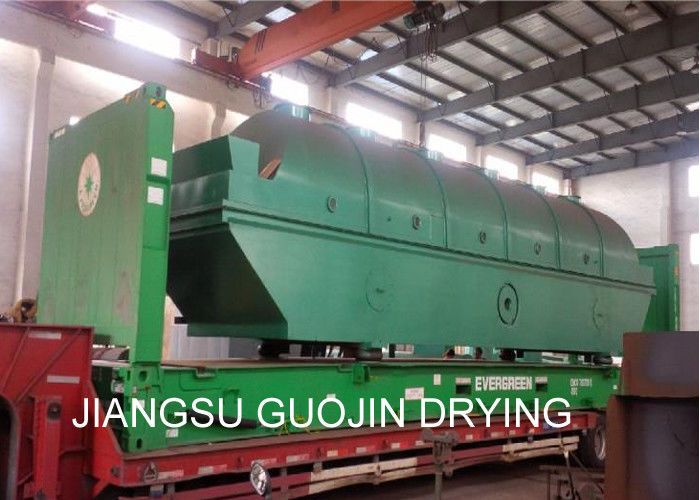

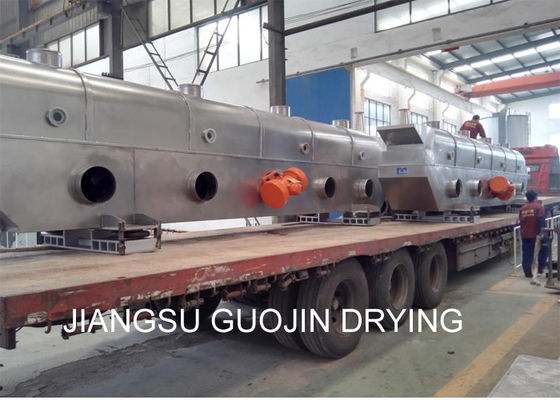

Fluid Bed Dryer Show

Rectilinear Vibrating Fluid Bed Drying Equipment 2.7M2 1
