2.025M2 Foodstuff Sea Salt Vibration Fluid Bed Dryer
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | CE |
| Model Number: | VFBD-4.5x0.45 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Foodstuff Sea Salt Vibration Fluid Bed Dryer | Model Type: | VFBD-4.5x0.45 |
|---|---|---|---|
| Application: | Food Processing | Area Of Fluidzed Bed: | 2.025M2 |
| Inlet Air Temperature: | 70-140 | Outlet Air Temperature: | 40-70 |
| Water Evaporation: | 50-70kg/h | Vibration Motor Model: | YZS15-6 |
| Vibration Motor Power: | 1.1x2kw | Heating Source: | Steam,Electricity |
| Highlight: | Foodstuff Vibration Fluid Bed Dryer,2.025M2 Vibration Fluid Bed Dryer,2.025M2 Fluidized Bed Dryer |
||
Product Description
Foodstuff Sea Salt Vibration Fluid Bed Dryer
The drier is suitablity in chemical industry, light industry, pharmaceutical, food, plastic, oil, slang, salt, sugar and so on, for drying, cooling and weting.
Fluid Bed Dryer Working Principle
The material has been feed into the salt fluidized bed dryer / fluidized bed cooler, under the dual function of the vibration and air flow, the material move along the fluid bed as throwing forward continuously. Hot air upward through the fluid bed and wet materials from the heat after the exchange, after the cyclone dust emissions from dry materials from discharging from the discharging end.
Fluid Bed Dryer Features
1. The vibration is created by motor. It is stable in operation and convenient in maintenance, low noise and long life.
2. High heat efficiency, raw material is heated evenly and heat exchange is fully used and dry capacity is high. Compared with ordinary drier, the energy can be saved about 30%. The state of fluidization is uniform and no dead gaps or broken phenomenon so as to have dry, cool products.
3. It is good in regulation and wide in suitability. The thickness of raw material layer and movable speed inside the machine and the amplitude can be adjusted.
4. It is small for damaging the surface of raw material. The equipment can be used for drying raw materials that are easy broken. The drying effect can not be affected even if raw materials have irregular shape.
5. It is effective to prevent cross pollution between raw material and air because the equipment adapts fully closed structure. 6. 6. The environment of operation is clean.
7. You can string multi-set to raised capacity of raw materials, such as polyacrylamide.
Fluid Bed Dryer Charactaristics
♦Materials have been heated evenly, full exchanged the heat. It is a process of large intensity of drying.
♦ The vibration motor drive has been used, with the advantages of smooth operation, easy maintenance, low noise, long life
♦ It flows stability, with no dead angle and blown through phenomenon.
♦ It is adjustable, wide adaptation. The moving speed of the bed depth and the material in the dryer can achieve stepless adjustment by the changes of the amplitude.
♦ It makes small damage to the surface of the material, can be used for the drying of the fragile materials and will not affect the work results if the particles are irregular.
♦ It uses full closed structure; effectively prevent the cross-contamination of the materials and air, clean operation environment.
♦ Materials drying time is basic equality, residence time is short, bed depth is small, usually 2 ~ 5cm.
Fluid Bed Dryer Technical Parameters
| Model | A | B | C | D | E | F | Weight(kg) |
| VFBD-3x0.3 | 3000 | 300 | 1350 | 900 | 430 | 1650 | 1250 |
| VFBD-4.5x0.3 | 4500 | 300 | 1350 | 900 | 430 | 1650 | 1560 |
| VFBD-4.5X0.45 | 4500 | 450 | 1550 | 950 | 430 | 1700 | 1670 |
| VFBD-4.5X0.6 | 4500 | 600 | 1650 | 950 | 430 | 1700 | 1910 |
| VFBD-6x0.45 | 6000 | 450 | 1650 | 950 | 430 | 1700 | 2100 |
| VFBD-6x0.6 | 6000 | 600 | 1700 | 1000 | 500 | 1700 | 2410 |
| VFBD-6x0.75 | 6000 | 750 | 1850 | 1000 | 600 | 1850 | 2340 |
| VFBD-6x0.9 | 6000 | 900 | 2000 | 1000 | 600 | 1850 | 3160 |
| VFBD-7.5x0.6 | 7500 | 600 | 1850 | 1000 | 600 | 1850 | 3200 |
| VFBD-7.5x0.75 | 7500 | 750 | 2000 | 1000 | 600 | 1850 | 3600 |
| VFBD-7.5x0.9 | 7500 | 900 | 2100 | 1000 | 600 | 1850 | 4140 |
| VFBD-7.5x1.2 | 7500 | 1200 | 2500 | 1150 | 800 | 2050 | 5190 |
| VFBD-7.5x1.5 | 7500 | 1500 | 2850 | 1570 | 800 | 2370 | 6426 |
| VFBD-8x1.8 | 8000 | 1800 | 3250 | 1800 | 900 | 2700 | 8600 |
| Model | Area of fluidized bed(M2) | Inlet air temperature(oC) | Outlet air temperature(oC) | Water evaporation(kg/h) | Vibration motor model | Vibration motor power |
| VFBD-3x0.3 | 0.9 | 70-140 | 40-70 | 20-35 | YZS8-6 | 0.75x2 |
| VFBD-4.5x0.3 | 1.35 | 35-50 | YZS10-6 | 0.75x2 | ||
| VFBD-4.5X0.45 | 2.025 | 50-70 | YZS15-6 | 1.1x2 | ||
| VFBD-4.5X0.6 | 2.7 | 70-90 | YZS15-6 | 1.1x2 | ||
| VFBD-6x0.45 | 2.7 | 80-100 | YZS15-6 | 1.5x2 | ||
| VFBD-6x0.6 | 3.6 | 100-130 | YZS20-6 | 1.5x2 | ||
| VFBD-6x0.75 | 4.5 | 120-170 | YZS20-6 | 2.2x2 | ||
| VFBD-6x0.9 | 5.4 | 140-170 | YZS30-6 | 2.2x2 | ||
| VFBD-7.5x0.6 | 4.5 | 130-150 | YZS30-6 | 2.2x2 | ||
| VFBD-7.5x0.75 | 5.625 | 150-180 | YZS40-6 | 3.0x2 | ||
| VFBD-7.5x0.9 | 6.75 | 160-210 | YZS40-6 | 3.0x2 | ||
| VFBD-7.5x1.2 | 9.0 | 200-280 | YZS50-6 | 3.7x2 | ||
| VFBD-7.5x1.5 | 11.25 | 230-330 | YZS50-6 | 3.7x2 | ||
| VFBD-8x1.8 | 14.4 | 290-420 | YZS75-6 | 5.5x2 |
Fluid Bed Dryer Flow

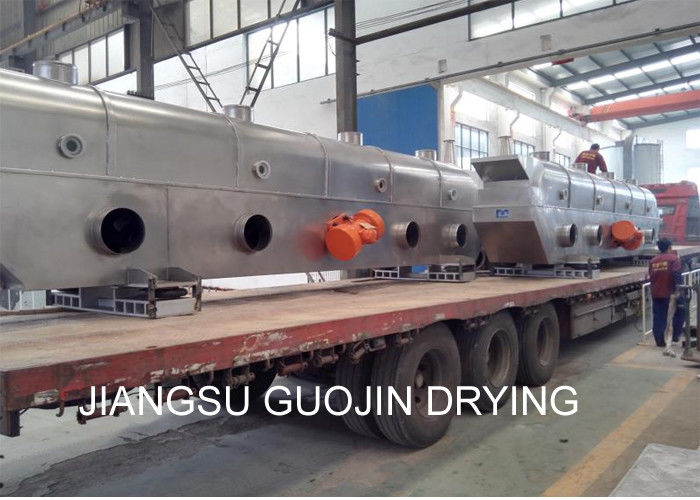

Fluid Bed Dryer Show
