LPG Heating 21KW Pipeline Type Starch Drying Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | CE |
| Model Number: | PCD200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Airflow Flash Pipeline Type Starch Drying Machine | Model Type: | PCD200 |
|---|---|---|---|
| Water Evaporation: | 200 Kg/h | Equipped Power: | 21 KW |
| Occupied Area: | 35 M2 | Height: | 11 M |
| Heating Source: | Steam,Natural Gas, LPG, Coal, Electricity | ||
| Highlight: | 21KW Starch Drying Machine,LPG Heating Starch Drying Machine,21KW Pipeline Dryer |
||
Product Description
Airflow Flash Pipeline Type Starch Drying Machine
The PCD Series Airflow Dryer is a mass quantity drying equipment, which adopts instant drying technology. It utilizes the
fast-moving hot air to lead the wet material and keep it suspended in the hot air and this strengthen the drying process and improve heat and mass transfer rate. The unbound water of dried material is almost completely removed (for example: the initial moisture of starch material is ≤40%, the final moisture can be 13.5%). The dried material will not deteriorate which ensure higher quality than common dryers and ensure the users can achieve a higher economic return in the short time.
PCD Pneumatic Conveying Dryer Features
1. Powerful drying. Little invest and the amount of evaporated moisture is high ( from 50kgH2O/h to 2000kgH2O/h)
2. The drying time is short. The series is suitable in strong heat sensitive materials. The finished product is seperated from outside, and no pollution with high quality.
3. The equipment is a total set, the heat source can be shoose from steam, coal fuel, oil fuel and gas fuel hot air furnace.
PCD Pneumatic Conveying Dryer Application
This dryer is suitable for high moisture materials, paste materials, and other raw materials that can’t be dried with other airflow dryers; such as copolymer of vinyl acetate and chloroethylene, cellulose acetate, catalyst, C.M.C, CT-1 resin, burnt plaster, electrolytic manganese dioxide, anthraquinone ammonium sulphonate, flour, diatomaceous, silica gel catalyst, born powder, potassium perchlorate sulfonamide, synthesis resin, active gluten, active argil, chemical filter cake, titanium dioxide, decanedioic acid, cooper sulphate, aluminum sulphate, sodium sulphate, calcium phosphate, starch, dyestuff, calcium citrate, coal earth, cement, compounds, ferric oxide, organic fuel, maize albumen feed, mica powder, medicine, dyestuff, paper pulp of potassium perchromate, lees residue, and etc.
PCD Pneumatic Conveying Dryer Technical Parameters
|
Type |
Moisture(kg/h) |
Equipped power(kw) |
Occupied area(m2) |
Height(m) |
|
PCD50 |
50 |
7 |
16 |
9 |
|
PCD100 |
100 |
13 |
26 |
11 |
|
PCD200 |
200 |
21 |
35 |
11 |
|
PCD250 |
250 |
24 |
51 |
13 |
|
PCD500 |
500 |
43 |
78 |
13 |
|
PCD1000 |
1000 |
100 |
105 |
15 |
|
PCD1500 |
1500 |
150 |
200 |
16 |
PCD Pneumatic Conveying Dryer Working Principle
The PCD Series Airflow Dryer can rapidly remove moisture from the granules or powder that is easy to dehydrate (mainly water in surface). Because of the raw material stayed in the dryer only for a short time so the quality of finished products can be controlled to the best conditions. Our factory developed a reinforced device with stepless speed exchange based on basic dryer. When the wet raw material is fed through screw feeder, it will be fully mixed with hot airflow and the rotating knives will crush it into fine granule. The granule dries during the movement to the outlet and it finally enters the drying pipe under absorbing of air force. The humidity and heavy granule that is not absorbing of air force. At the place it is dried further. The humidity and heavy granule that is not absorbed by air will be continuously crushed and dried until it entering the drying pipe.
PCD Pneumatic Conveying Dryer Sketch of Structure

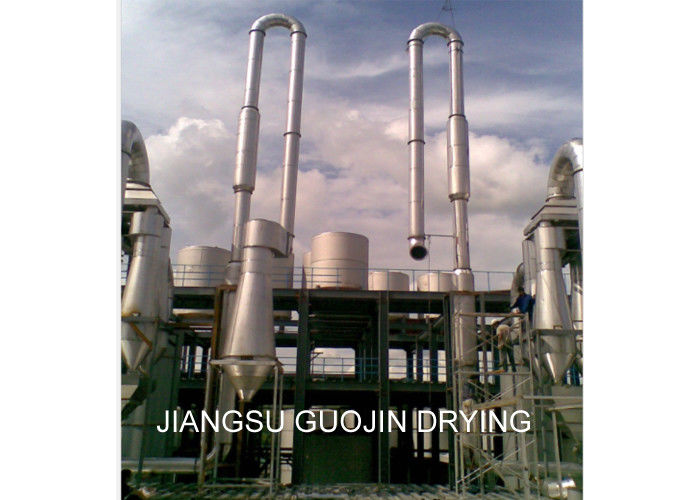

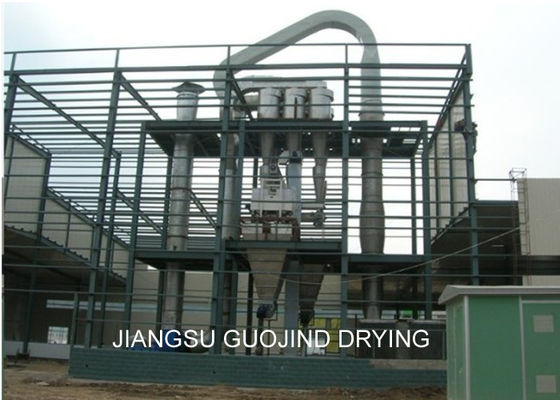

PCD Pneumatic Conveying Dryer Show
