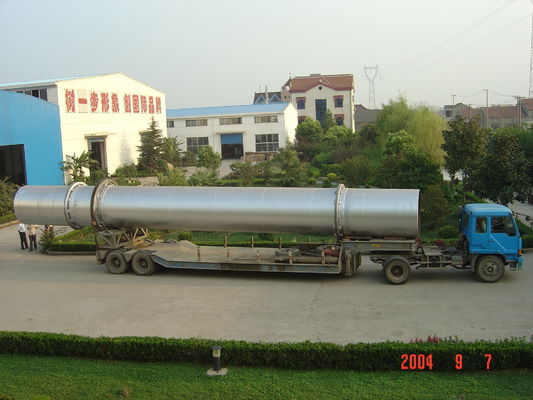

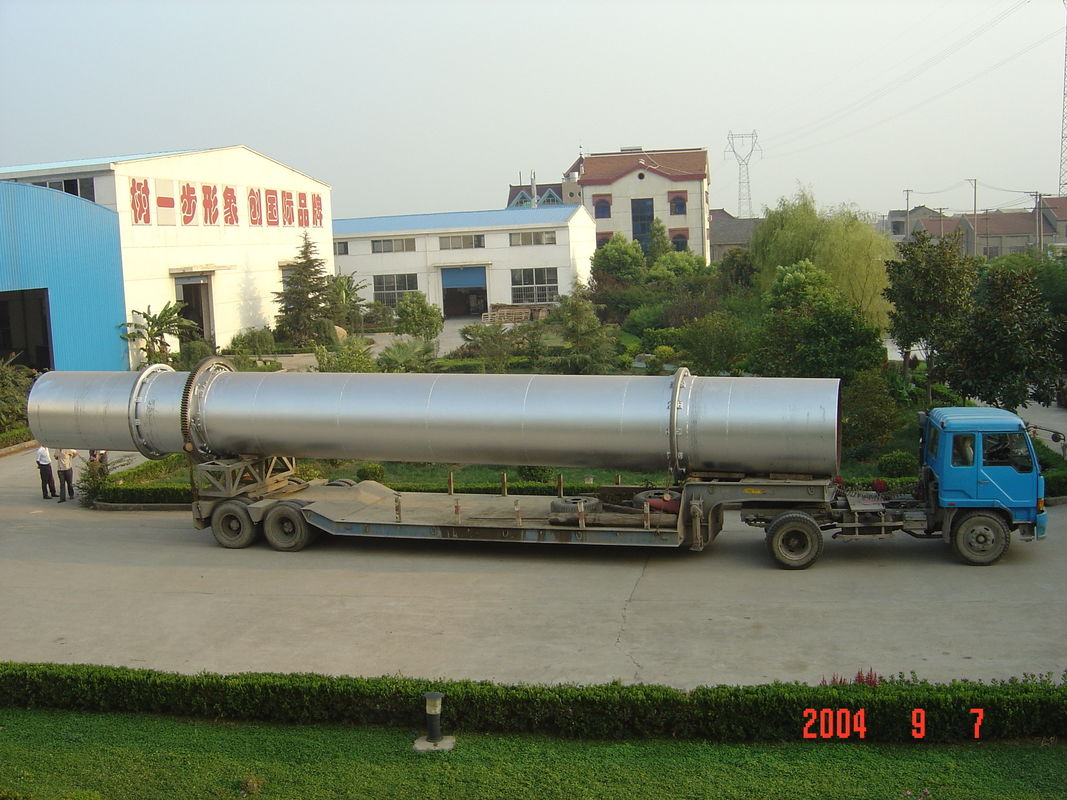

Abb / Siemens Motor Hot Air Industrial Dryer Machine , Rotary Barrel Drying Line
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | YIBU |
| Certification: | CE / UL / SGS / EAC / CR – TU |
| Model Number: | HYG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Woodencase |
| Delivery Time: | 10 WEEKS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 SETS PER MONTH |
|
Detail Information |
|||
| Matal Material: | SUS316/SUS304/ CARBON STEEL ,ETC | Heat Source: | Steam / Electrical / Natural Gas / Diesel / Etc; |
|---|---|---|---|
| Temp: | 100-500℃ | Power: | Customized |
| Weight: | 3000-20000kg | Motor: | ABB / SIEMENS/ SEW |
| Highlight: | rotary drying machine,rotary vacuum dryer |
||
Product Description
HYG Series Rotary barrel hot air dryer machine (Rotary barrel dryer)
Detailed Product Description
1. Continuous operating
2. Lower manual cost
3. Nonstandard, different capacity
4. Installing and commissioning on site
Usually the biggest feature of wood,wood chips ,sawdust drying is big capacity. So rotary drum dryer can meet it.The operatng and manufacturing cost of rotary drum dryer is much lower than normal drying equipmets if your capacity is very big.
Working Principle of Rotary drum dryer
Wet material is loaded from one head of the dryer, and then it is stirred by the bafflers that is uniformly distributed in the barrel. Material is uniformly distributed and dispersed in the dryer, fully contact the hot air of parallel (or counter) flow, so the drying process is expedited, and the impulsion power of media transfer is enhanced. During the drying process, material is under the effect of angled baffler and hot air, moves to the star shape unloader that is at the other head of the drver.
Features Rotary Drum Dryer
1, The motorization level of the barrel is high, and the production capacity is high.
2, The resistance that the material passes through the barrel is less, and the power consumption is low.
3, Application capability to different characters of materials is high.
4, The operation is stable, the operation fee is low, and the uniformity of product drying is good.
Preface
Wet material is loaded from one head of the dryer, and then it is stirred by the bafflers that is uniformly distributed in the barrel. Material is uniformly distributed and dispersed in the dryer, fully contact the hot air of parallel (or counter) flow, so the drying process is expedited, and the impulsion power of media transfer is enhanced. During the drying process, material is under the effect of angled baffler and hot air, moves to the star shape unloader that is at the other head of the dryer.
Structures

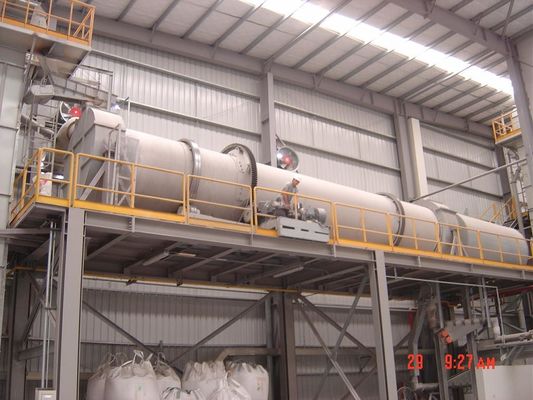

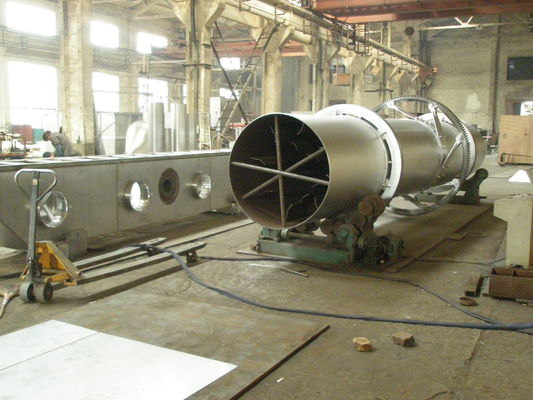

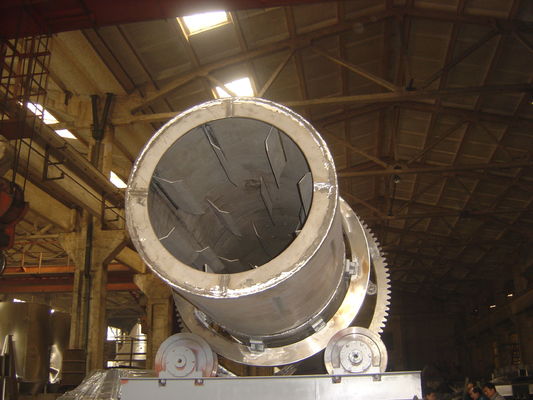

The rotary dryer is mainly composed by the revolving body, lifting plate, driving device, supporting device, sealing ring and other components. So it has the advantages of reasonable structure, perfect in workmanship, high yield, low energy consumption, convenient to operate.
Features
| Model | Direct heating clockwise flow spec | Direct heating clockwise flow spec | Heat directly countercurrent spec |
Heat directly |
Complex heat | Complex heat |
| Kinds of raw material | ore | vesiccant | blast fumace | ammonium sulfate | phosphorus fertilizer | coal |
| Amount to be treated kg/h | 1000 | 466 | 15000 | 20000 | 12000 | 5000 |
| Primary moisture % | 30 | 13 | 6 | 1.5 | 5 | 6.5 |
| Final moisture % | 15 | 0.3 | 1 | 0.1 | 0.1 | 0.1 |
| Average diameter mm | 6.5 | 0.05 | 4.7 | 0.5-1.7 | 0.5 | 5 |
| Bulk density of raw material kg/m2 | 770 | 800 | 1890 | 1100 | 1500 | 750 |
| Amount of hot air kg/h | 39000 | 5400 | 10750 | 9800 | 6500 | 16000 |
| Temperature of air at inlet ℃ | 600 | 165 | 500 | 180 | 650 | 570 |
| Temperature of raw material at outlet ℃ | 42 | 100 | 70 | 80 | 75 | |
| Way of heating | gas | electric heating | heavy oil | fuel hot furnace | heavy oil | heavy oil |
| Loading efficiency % | 6.3 | 7 | 7.5 | 7.8 | 18 | |
| Revolution r.p.m | 4 | 4 | 3.5 | 3 | 4 | 2 |
| gradient m/m | 0.04 | 0.005 | 0.03 | 0.05 | 0.05 | 0.043 |
| Quantity of stirring-up rake | 12 | 24 | 12 | 22 | outer of inner cylinder 8 inner of out cylinder 16 |
6 12 |
| Diameter of dryer m | 2.0 | 1.5 | 2 | 2.3 | out cylinder 2 inner cylinder 0.84 | out cylinder 2.4 inner cylinder 0.95 |
| Length of dryer m | 20 | 12 | 17 | 15 | 10 | 16 |
| Driving power Kw | 22 | 7.5 | 15 | 11 | 11 | 15 |
1. The motorization level of the barrel is high, and the production capacity is high;
2. The resistance that the material passes through the barrel is less, and the power consumption is low.
3. Application capability to different characters of materials is high.
4. The operation is stable, the operation fee is low, and the uniformity of product drying is good.
5.The rotary dryer is mainly composed by the revolving body, lifting plate, driving device, supporting device, sealing ring and other components. So it has the advantages of reasonable structure, perfect in workmanship, high yield, low energy consumption, convenient to operate.
