Heavy Duty Palm Fiber Tripe Barrel / Single Drum Dryer
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE;ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Matal Material: | SUS316/SUS304/ CARBON STEEL ,ETC | Heat Source: | Steam / Electrical / Natural Gas / Diesel / Etc; |
|---|---|---|---|
| Temp: | 100-500℃ | Power: | Customized |
| Weight: | 3000-20000kg | Capacity: | 500kg- 5000kg |
| Name: | Single Drum Dryer | ||
| Highlight: | Palm Fiber Single Drum Dryer,Triple Barrel Single Drum Dryer,Heavy Duty hot air drying machine |
||
Product Description
Heavy Duty Palm Fiber Tripe Barrel / Single Drum Dryer
Convenient Palm fiber rotary dryer/single-drum dryer/tripe-barrel drying machine is mainly consist of the heat source, material lifting machine, feeding machine, rotary drum, material exit machine, induced draft fan, material discharge machine, power cabinet and cooling system.

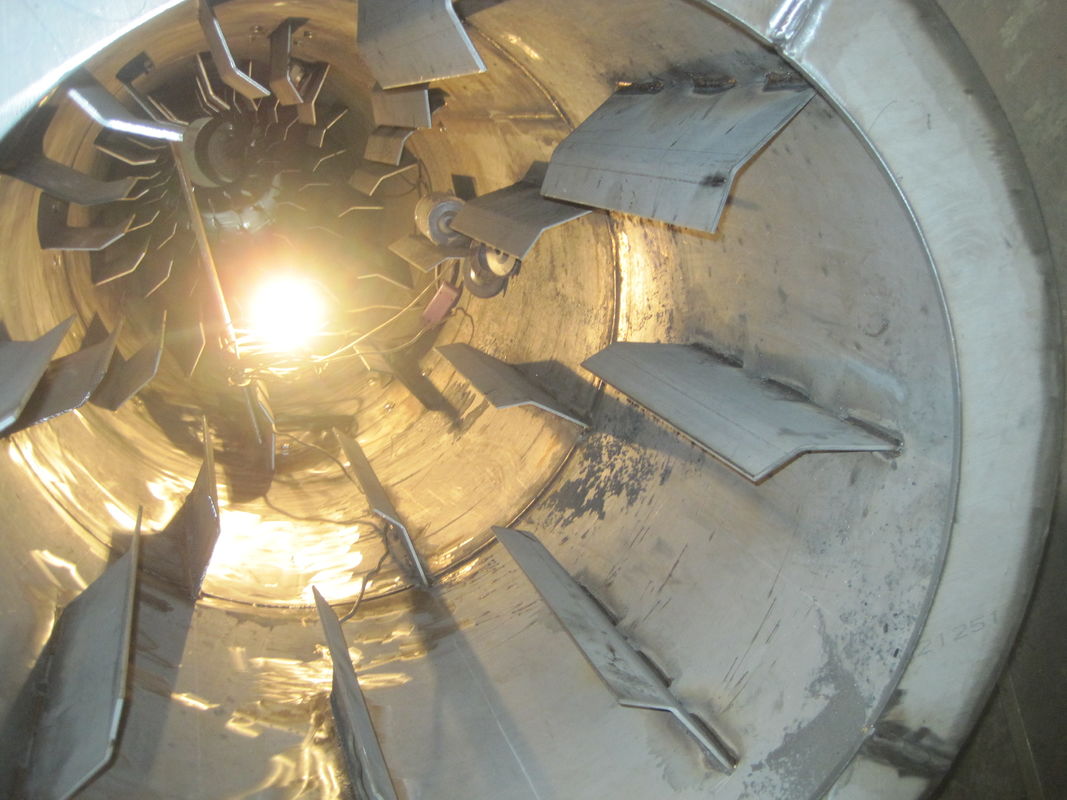

Wet material is loaded from one head of the dryer, and then it is stirred by the bafflers that is uniformly distributed in the barrel. Material is uniformly distributed and dispersed in the dryer, fully contact the hot air of parallel (or counter) flow, so the drying process is expedited, and the impulsion power of media transfer is enhanced. During the drying process, material is under the effect of angled baffler and hot air, moves to the star shape unloader that is at the other head of the dryer.
Structures

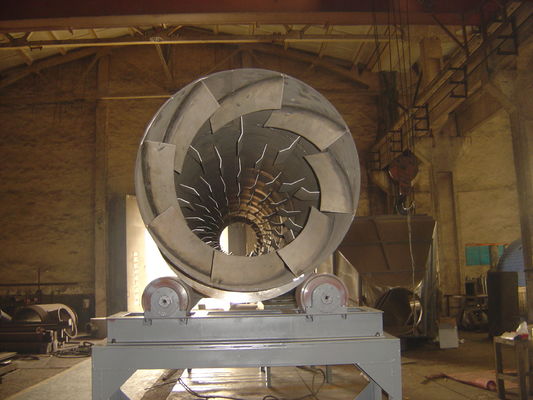

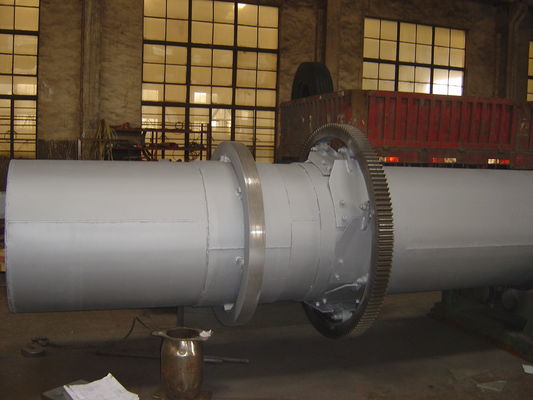

The heavy duty rotary dryer is mainly composed by the revolving body, lifting plate, driving device, supporting device, sealing ring and other components. So it has the advantages of reasonable structure, perfect in workmanship, high yield, low energy consumption, convenient to operate.
| Model | Direct heating clockwise flow spec | Direct heating clockwise flow spec | Heat directly countercurrent spec |
Heat directly countercurrent spec |
Complex heat | Complex heat |
| Kinds of raw material | ore | vesiccant | blast fumace | ammonium sulfate | phosphorus fertilizer | coal |
| Amount to be treated kg/h | 1000 | 466 | 15000 | 20000 | 12000 | 5000 |
| Primary moisture % | 30 | 13 | 6 | 1.5 | 5 | 6.5 |
| Final moisture % | 15 | 0.3 | 1 | 0.1 | 0.1 | 0.1 |
| Average diameter mm | 6.5 | 0.05 | 4.7 | 0.5-1.7 | 0.5 | 5 |
| Bulk density of raw material kg/m2 | 770 | 800 | 1890 | 1100 | 1500 | 750 |
| Amount of hot air kg/h | 39000 | 5400 | 10750 | 9800 | 6500 | 16000 |
| Temperature of air at inlet ℃ | 600 | 165 | 500 | 180 | 650 | 570 |
| Temperature of raw material at outlet ℃ | 42 | 100 | 70 | 80 | 75 | |
| Way of heating | gas | electric heating | heavy oil | fuel hot furnace | heavy oil | heavy oil |
| Loading efficiency % | 6.3 | 7 | 7.5 | 7.8 | 18 | |
| Revolution r.p.m | 4 | 4 | 3.5 | 3 | 4 | 2 |
| gradient m/m | 0.04 | 0.005 | 0.03 | 0.05 | 0.05 | 0.043 |
| Quantity of stirring-up rake | 12 | 24 | 12 | 22 | outer of inner cylinder 8 inner of out cylinder 16 |
6 12 |
| Diameter of dryer m | 2.0 | 1.5 | 2 | 2.3 | out cylinder 2 inner cylinder 0.84 | out cylinder 2.4 inner cylinder 0.95 |
| Length of dryer m | 20 | 12 | 17 | 15 | 10 | 16 |
| Driving power Kw | 22 | 7.5 | 15 | 11 | 11 | 15 |
Features
1. The motorization level of the barrel is high, and the production capacity is high;
2. The resistance that the material passes through the barrel is less, and the power consumption is low.
3. Application capability to different characters of materials is high.
4. The operation is stable, the operation fee is low, and the uniformity of product drying is good.
5.The rotary dryer is mainly composed by the revolving body, lifting plate, driving device, supporting device, sealing ring and other components. So it has the advantages of reasonable structure, perfect in workmanship, high yield, low energy consumption, convenient to operate.
Characteristics
1. Full PLC intelligent control, can ensure the color of product after drying is yellow. It’s palatability, and animal like to eat.
2. The rotary drum’s thermal insulation efficiency can be up to 70% (traditional monocular dryer thermal efficiency is only 35%), which can improve the thermal efficiency of over 50%.
3. Reduce the floor area to almost 50% of the single cylinder dryer, save about 50% construction investment.
4. Using frequency regulating speed control system to control the material flow, can easily control the desired final moisture indicators according to users’ needs.
5. Equipped with new energy-saving stove, energy efficient, thermal control, simple operation, coal consumption deduct by as much as 60%. Power consumption reduced by 60%. Lower running cost.
