Industrial Stainless Steel 8000kg Hot Air Dryer Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE;ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Matal Material: | SUS316/SUS304/ CARBON STEEL ,ETC | Heat Source: | Steam / Electrical / Natural Gas / Diesel / Etc; |
|---|---|---|---|
| Temp: | 100-500℃ | Power: | Customized |
| Weight: | 3000-20000kg | Capacity: | 500kg - 8000kg |
| Name: | 8000kg Hot Air Dryer Machine | Warranty: | 1 Year |
| Type: | Rotary Drying Equipment | Condition: | New |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | ||
| Highlight: | 8000kg Hot Air Dryer Machine,Stainless Steel Hot Air Dryer Machine,8000kg hot air drying machine |
||
Product Description

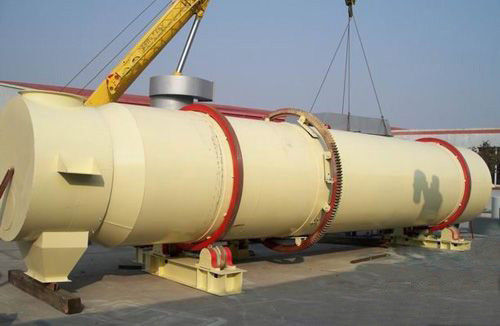

Industrial Stainless Steel 8000kg Hot Air Dryer Machine
Rotary drier/drier machine/barrel dryer/rotary klin Working Principle
The raw material plate is arranged conveniently to allow adjustable angle positions. The material to be dried is inserted to the rotary cylinder through the raw material plate. Hot air flows within the cylinder causing the separation of water from the material by converting it into vapor which is discharged into the atmosphere. At this point, the material becomes dry.
Preface
Wet material is loaded from one head of the dryer, and then it is stirred by the bafflers that is uniformly distributed in the barrel. Material is uniformly distributed and dispersed in the dryer, fully contact the hot air of parallel (or counter) flow, so the drying process is expedited, and the impulsion power of media transfer is enhanced. During the drying process, material is under the effect of angled baffler and hot air, moves to the star shape unloader that is at the other head of the dryer.
Structure

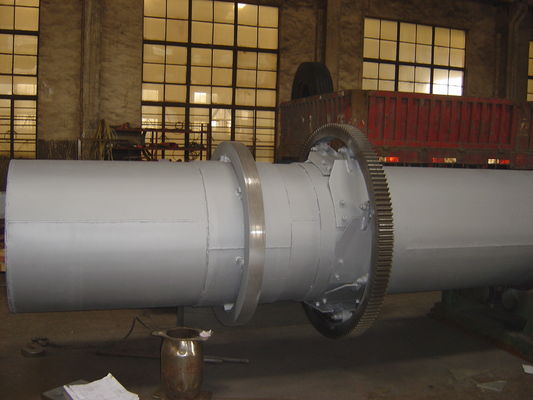

The rotary drier/drier machine/barrel dryer/rotary klin is mainly composed by the revolving body, lifting plate, driving device, supporting device, sealing ring and other components. So it has the advantages of reasonable structure, perfect in workmanship, high yield, low energy consumption, convenient to operate.
charcteristics :
1. The internal adopts assembled structure which has improved the accuracy of the equipment and it is easy to transport and install.
2. According to the characteristics of different fertilizers ,we have arranged the second granulation zone reasonably so as to improve the granulation effect .
3. Adopts assembled hoist board so as to exchange heat fully and lower the energy consumption .
4. Temperature induction monitor ,uniform vibration and airproof setting , which improve performance and productivity efficiently .
5. The assorted combustion furnace is a type of energy efficient and has the characteristics of smaller area , easy regulation and equipped with greenhouse
| Model | Direct heating clockwise flow spec | Direct heating clockwise flow spec | Heat directly countercurrent spec |
Heat directly |
Complex heat | Complex heat |
| Kinds of raw material | ore | vesiccant | blast fumace | ammonium sulfate | phosphorus fertilizer | coal |
| Amount to be treated kg/h | 1000 | 466 | 15000 | 20000 | 12000 | 5000 |
| Primary moisture % | 30 | 13 | 6 | 1.5 | 5 | 6.5 |
| Final moisture % | 15 | 0.3 | 1 | 0.1 | 0.1 | 0.1 |
| Average diameter mm | 6.5 | 0.05 | 4.7 | 0.5-1.7 | 0.5 | 5 |
| Bulk density of raw material kg/m2 | 770 | 800 | 1890 | 1100 | 1500 | 750 |
| Amount of hot air kg/h | 39000 | 5400 | 10750 | 9800 | 6500 | 16000 |
| Temperature of air at inlet ℃ | 600 | 165 | 500 | 180 | 650 | 570 |
| Temperature of raw material at outlet ℃ | 42 | 100 | 70 | 80 | 75 | |
| Way of heating | gas | electric heating | heavy oil | fuel hot furnace | heavy oil | heavy oil |
| Loading efficiency % | 6.3 | 7 | 7.5 | 7.8 | 18 | |
| Revolution r.p.m | 4 | 4 | 3.5 | 3 | 4 | 2 |
| gradient m/m | 0.04 | 0.005 | 0.03 | 0.05 | 0.05 | 0.043 |
| Quantity of stirring-up rake | 12 | 24 | 12 | 22 | outer of inner cylinder 8 inner of out cylinder 16 |
6 12 |
| Diameter of dryer m | 2.0 | 1.5 | 2 | 2.3 | out cylinder 2 inner cylinder 0.84 | out cylinder 2.4 inner cylinder 0.95 |
| Length of dryer m | 20 | 12 | 17 | 15 | 10 | 16 |
| Driving power Kw | 22 | 7.5 | 15 | 11 | 11 | 15 |
