7KW Pneumatic Sawdust Flash Dryer With Natural Gas Heating
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | CE |
| Model Number: | PCD50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Pneumatic Airflow Sawdust Wood Chips Flash Dryer | Model Type: | PCD50 |
|---|---|---|---|
| Water Evaporation: | 50 Kg/h | Equipped Power: | 7 KW |
| Occupied Area: | 16 M2 | Height: | 9 M |
| Heating Source: | Steam,Natural Gas, LPG, Coal, Electricity | ||
| Highlight: | Sawdust Flash Dryer,Pneumatic Flash Dryer,7KW Hot Air Drying Machine |
||
Product Description
Pneumatic Airflow Sawdust Wood Chips Flash Dryer
Pneumatic and Airflow dryer drying machine is used to suspend the wet material in the process of air flow through the hot air flow. High heat transfer coefficient, large heat transfer area and short drying time. Airflow dryer drying is also known as "instantaneous drying", which is the application of solid fluidization in drying.
The method is to make direct contact with the heating medium and solid particles being dry, and make the stay dry solid particles suspended in a fluid, and two large contact areas, to strengthen the heat and mass transfer process, is widely used for material drying unit operation.
PCD Pneumatic Conveying Dryer Features
1. Powerful drying. Little invest and the amount of evaporated moisture is high ( from 50kgH2O/h to 2000kgH2O/h)
2. The drying time is short. The series is suitable in strong heat sensitive materials. The finished product is seperated from outside, and no pollution with high quality.
3. The equipment is a total set, the heat source can be shoose from steam, coal fuel, oil fuel and gas fuel hot air furnace.
PCD Pneumatic Conveying Dryer Application
Ceramic industry: Kaolin, bentonite, clay, etc.
Foodstuff industry: Soybean protein, gelatinized starch, vinasse, triticum, wheat starch, etc.
Organics: Atrazine, lauric acid cadmium, benzoic acid, sodium oxalate, acetyl cellulose, etc.
Dyestuff: Anthraquinones, black iron oxide, indigo dye, butyrate, titanium oxide, zinc sulfide, various azo dye intermediates, etc.
Inorganic: Borax, calcium carbonate, hydrogen peroxide, etc.
Substance: Copper suifate, ferrix oxide, three antimony oxide, all kinds of metal salt, synthetic cryolite, etc
PCD Pneumatic Conveying Dryer Technical Parameters
|
Type |
Moisture(kg/h) |
Equipped power(kw) |
Occupied area(m2) |
Height(m) |
|
PCD50 |
50 |
7 |
16 |
9 |
|
PCD100 |
100 |
13 |
26 |
11 |
|
PCD200 |
200 |
21 |
35 |
11 |
|
PCD250 |
250 |
24 |
51 |
13 |
|
PCD500 |
500 |
43 |
78 |
13 |
|
PCD1000 |
1000 |
100 |
105 |
15 |
|
PCD1500 |
1500 |
150 |
200 |
16 |
Sketch of Structure

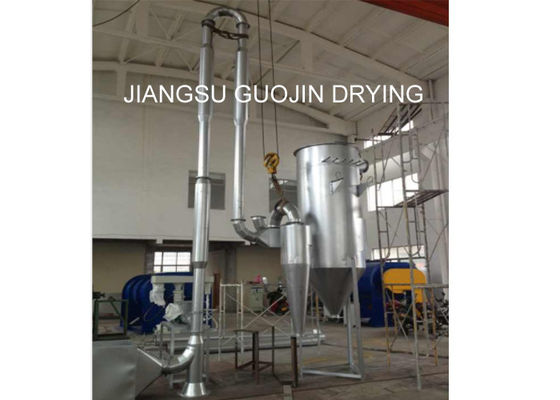

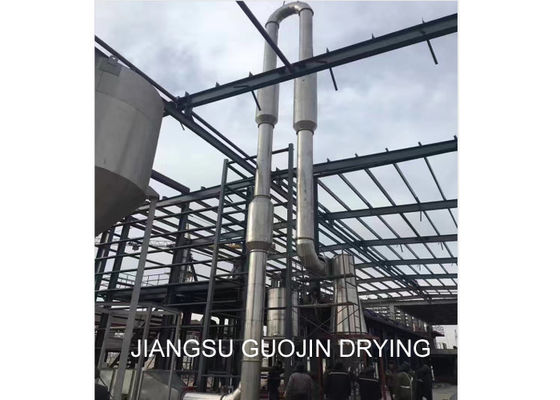

PCD Pneumatic Conveying Dryer Show
