Single Layer 1.6M Width Conveyor Mesh Belt Dryer For Vegetable
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO,CE |
| Model Number: | SPCD-1.6-8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Vegetable Single Layer Tunnel Conveyor Mesh Belt Dryer | Model Type: | SPCD-1.6-8 |
|---|---|---|---|
| Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing | Unit No.: | 5 |
| Belt Width: | 1.6M | Length Of Drying Section: | 8M |
| Thickness Of Maaterial Covered: | 10-80 Mm | Temperature: | 60-150Deg. C |
| Steam Pressure: | 0.2-0.8 Mpa | Steam Consumption: | 150-375 Kg/h |
| Drying Time: | 0.2-1.2h | Blower Power: | 9kw |
| Equipment Power: | 9.55kw | Heat Source: | Electricity,Steam |
| Highlight: | Single Layer Conveyor Mesh Belt Dryer,Vegetable Conveyor Mesh Belt Dryer,1.6m width belt dryer machine |
||
Product Description
Vegetable Single Layer Tunnel Conveyor Mesh Belt Dryer
1, Single layer Mesh Belt Dryer / Vegetable Mesh Belt Dryer / Vegetable Dryer
2, Good mobility and dissolving
3, Easy operation and control
Product Descriptions
SPCD Single Pass/Single Plate Conveyor Dryer is continuous dryer for large production. It is used for drying sheet materials, bar masterials granules materials that have good air permeability. As to dehydrated vegetable Chineseherb pieces which have high moisture and need low drying temperature, SPCD belt dryer is specially suitable.
Product Application
The vegetable dryer is an industrial continuous drying equipment. It is widely used for chemical industry, foodstuff industry( fruit and vegetable or nut ), pharmaceutical industry, construction materials industry, electronic industry and so on. Especially it is suitable for drying raw materials that are good in breathability and have the shape of pieces or strip of granule. It is also possible to dry the pasted raw materials such as filter cake after shaped through granulator or extruder.
Technical Parameters
| Type | SPCD-1.2-8 | SPCD-1.2-10 | SPCD-1.6-8 | SPCD-1.6-10 | SPCD-2-8 | SPCD-2-10 |
| Unit number | 4 | 5 | 5 | 5 | 4 | 5 |
| Belt width(m) | 1.2 | 1.2 | 1.6 | 1.6 | 2 | 2 |
| Length of drying section(m) | 8 | 10 | 8 | 10 | 8 | 10 |
| Thickness of the mataerial to be covered(mm) | 10~80 | |||||
| Temperature(oC) | 60~150 | |||||
| Steam pressure(Mpa) | 0.2~0.8 | |||||
| Steam consumption(kg/h) | 120-300 | 150-375 | 150-375 | 170-470 | 180-500 | 225-600 |
| Drying time(h) | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 |
| Drying efficiency(kg H2O/h) | 60-160 | 80-220 | 75-220 | 95-250 | 100-260 | 120-300 |
| Total power of the blower(kw) | 6.6 | 8.8 | 9 | 12 | 12 | 16 |
| Total power of the equipment(kw) | 7.15 | 9.55 | 9.55 | 12.75 | 12.55 | 16.75 |
Product Feature
1, Air quantity, heating temperature, materials staying time and feeding speed can be adjusted to achieve the best drying effect.
2, The equipment configuration is flexible, mesh belt washing system and materials cooling system can be used.
3, Most air is recycled to realize saving energy
4, The machine is equipped with unique air dividing apparatus, it makes the hot air distribute uniform better and guarantee the quality of products is constant.
5, Heating source can be steam, conduction oil,, electricity, coal (oil), or hot air furnace.

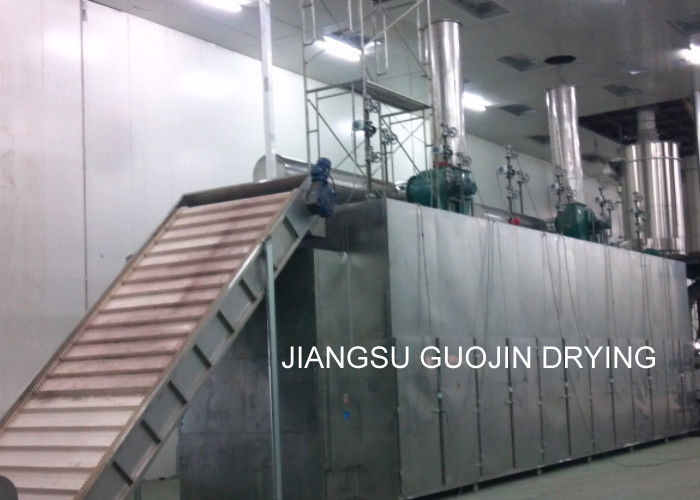

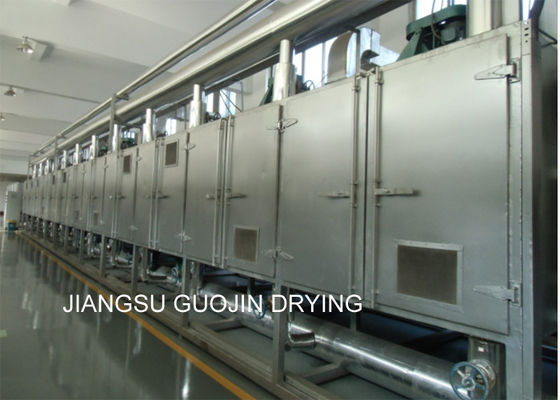

Product Show
