CT Hot Air Circulating Drying Oven for Salt Drying
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | CE |
| Model Number: | CT-C-II |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | CT Hot Air Circulating Drying Oven For Salt Drying | Model Type: | CT-C-II |
|---|---|---|---|
| Application: | Foodstuff Industry, Chinese Herb Medicine Industry, Medical Industry | Tray: | 96pcs |
| Trolley: | 4 | Evaporatioin Area: | 28.3M2 |
| Efficient Volume: | 4.9M3 | Radiator Area: | 40M3 |
| Steam Consumption: | 36kg/h | Electric Heating Power: | 30 KW |
| Fan Volume: | 6900M3/h | Drying Capacity: | 240kg/batch |
| Highlight: | hot air dryer,hot air dryer machine |
||
Product Description
CT Hot Air Circulating Drying Oven for Salt Drying
CT-C series oven is our factory initiate product of our country, was upgraded and regenerated for several times and has reached to advanced level both at China and all over the world. The CT series is the first generation product, average heat efficiency about 30%, adapt centrifugal fan, box body out circle, handwork control temperature way. Through many times reformation, form the CT-C series oven, the series all adopt axes flow fan, match with auto constant temperature control system, and have computer control system for choice.
The heat efficiency reach about 70% , it use seam or electric heater as heating source, use axial fan, heat exchanger to heat air in convective way. The laminar flow of hot air passes through the baking trays and will carry out heat transmission with material. Fresh air will enter into the oven from inlet to supply and then discharge from damp outlet. Fresh air is supplied, wet and hot air is discharged continuously. In this way, suitable RH in saves energy source, which makes thermal efficiency of oven raise from 3-8% of traditional drying oven to about 35-50%. Before application, customer can adjust fan blade in order to make the temperature difference at the best state.
Product Feature
1,Most of hot air is circled inside the oven. The hot efficiency is high, The energy source can be saved.
2,Enhanced ventilation is used and it is equipped with adjustable air divider plate inside the oven. Raw materials can be dried evenly. The hot sources can be steam, hot water, electricity of far infrared.
3,The machine has low noise and stable operation. The temperature can be controlled automatically. The installation and maintenance are very convenient.
4,The applied fields are wide and can be suitable for all kinds of raw materials, lt is a comprehensive dry.
More Advantages
1. Options of heat source: steam, electricity, or far infrared, or both steam electricity.
2. Drying temperature: steam heating 50-130 °C, Max.140 °C.
3. Electricity and far infrared:50-300 °C .Automatic control system and computer control system on request.
4. Commonly used steam pressure 0.2-0.8Mpa (2-8 bar).
5. For CT-C-I, electric heated, rated power consumption: 15Kw, real consumption: 5-8Kw.
6. The special requirements should be indicated at the time of order.
7. Please consult as for any special requirements.
8. For operation temperature of over 140 °C or less than 60 °C, please indicate when order.
9. The dimension of the standard drying tray is 460×640×45 mm.
10.The ovens and baking trays made by our factory are uniform in dimensions, and can be exchanged each other.
Technical Parameters
| Model | MField standard model | drying capacity(kg/batch) | Radiator area(m3) | Steam consumption(kg/h) | Electric heating power(kw) | Fan Power(kw) | Overall dimensions(WxDxHmm) | Equipped drying cart(set) | Drying pallet tobe equipped(pc) | Total weight(kg) |
| CT-C-O | RXH-7-C | 60 | 10 | 10 | 6 | 0.45 | 1380x1200x2000 | 1 | 24 | 820 |
| CT-C-I | RXH-14-C | 120 | 20 | 18 | 15 | 0.45 | 2260x1200x2000 | 2 | 48 | 1580 |
| CT-C-II | RXH-27-C | 240 | 40 | 36 | 30 | 0.45x2 | 2260x2200x2000 | 4 | 96 | 1800 |
| CT-C-IIA | RXH-27-C | 240 | 40 | 36 | 30 | 0.45x2 | 4280x1200x2270 | 4 | 96 | 1880 |
| CT-C-III | RXH-41-C | 360 | 80 | 60 | 45 | 0.45x3 | 2260x3200x2000 | 6 | 144 | 2100 |
| CT-C-IIIA | RXH-41-C | 360 | 80 | 60 | 45 | 0.45x3 | 3240x2200x2000 | 6 | 144 | 2210 |
| CT-C-IV | RXH-54-C | 480 | 120 | 80 | 60 | 0.45x4 | 4280x2200x2270 | 8 | 192 | 2800 |
| CT-I | RXH-14-B | 120 | 23 | 20 | 15 | 1.1 | 2480x1200x2375 | 2 | 48 | 1220 |
| CT-II | RXH-27-B | 240 | 48 | 40 | 30 | 1.5 | 2480x2200x2438 | 4 | 96 | 1530 |
| CT-III | RXH-41-B | 360 | 72 | 60 | 45 | 2.2 | 3430x2200x2620 | 6 | 144 | 2110 |
| CT-IV | RXH-54-B | 480 | 96 | 80 | 60 | 3 | 4460x2200x2620 | 8 | 192 | 2300 |
Product Application
This drying oven is suitable for the material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming, side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.

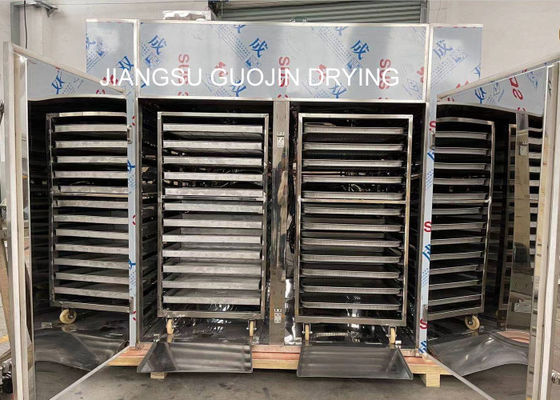

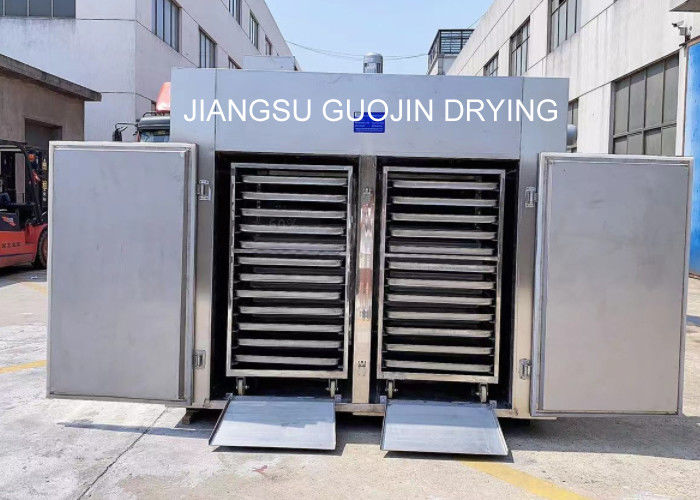

Product Show
