DCM Series Double Cone Mixer
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | DCM-180 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | DCM Series Double Cone Mixer | Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Model Type: | DCM-180 | Total Volume: | 0.18M3 |
| Productive Capacity: | 40kg/batch | Mixing Time: | 4-8min |
| Revolution Of Cylinder: | 12rpm | Power: | 1.1kw |
| Rotation Height: | 1850mm | Weight: | 280kg |
| Overall Dimension: | 1400x800x1850mm | ||
| Highlight: | mixing equipment,blending machine |
||
Product Description
DCM Series Double Cone Mixer
Product Principle Work
Through the vacuum conveyor for the machine, send the powder or grain state materials into the double-taper container, or send the materials into the container manually. As the container rotates continously, the materials moves complexly in the container so as to get the uniform mixing.
Energy saving, convenient operation, low labor intensity, high work efficiency.
Technical Parameters
| Model | 180 | 300 | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 |
| Total volume(L) | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 |
| Productive capacity(kg/batch) | 40 | 60 | 100 | 200 | 300 | 400 | 500 | 600 | 800 |
| Mixing time(min) | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
| Revolution of cylinder(rpm) | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 7.8 | 7.8 |
| Power(kw) | 1.1 | 1.1 | 2.2 | 4 | 4 | 7.5 | 7.5 | 7.5 | 11 |
| Overall dimension(mm) |
1400*800 *1850 |
1685*800 *1850 |
1910*800 *1940 |
2765*1500 *2370 |
2960*1500 *2480 |
3160*1900 *3500 |
3386*1900 *3560 |
4450*2200 *3600 |
4750*2500 *3680 |
| Rotation height(mm) | 1850 | 1850 | 1950 | 2460 | 2540 | 3590 | 3650 | 3700 | 3730 |
| Weight(kg) | 280 | 310 | 550 | 810 | 980 | 1500 | 2150 | 2500 | 3200 |
Product Application
The machine is widely applied for the mixing of powder materials by pharmacy, chemicals and foodstuff industries, as well as for the quick and even mixing of various materials in different granules and gravity.

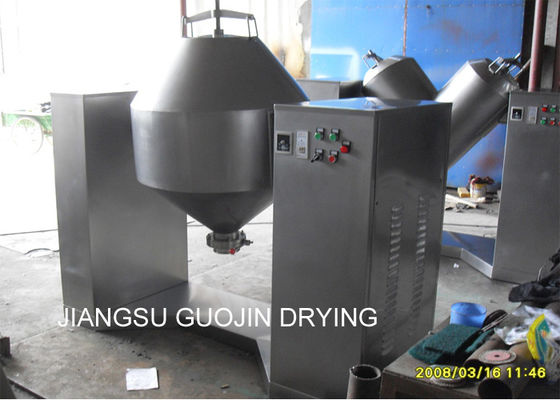

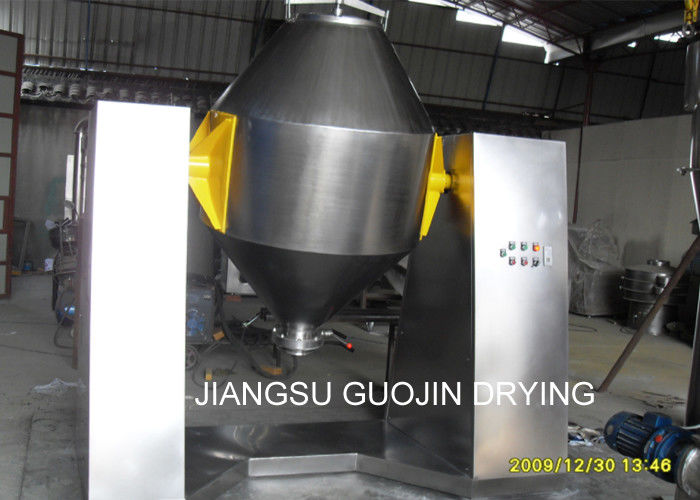

Product Show
