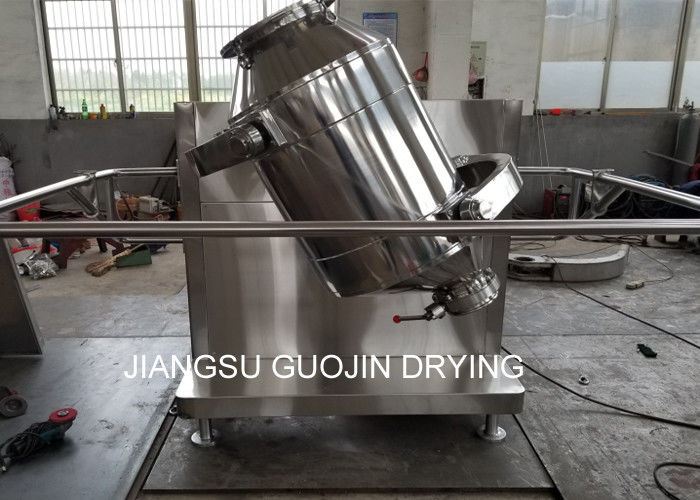

THDM Series Three Dimensional Mixer Machines
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | THDM-5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | THDM Series Three Dimensional Mixer Machines | Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Model Type: | THDM-5 | Barrel Volume: | 5L |
| Max Loading Volume: | 4.25L | Max Loading Weight: | 5kg |
| Spindle Rotation Speed: | 24r/min | Motor Power: | 0.37kw |
| Weight: | 150kg | Overall Dimension: | 600x1000x1000mm |
| Highlight: | mixing equipment,blending machine |
||
Product Description
THDM Series Three Dimensional Mixer Machines
Because the mixing drum has multi directional motion, it makes raw material inside the drum has many cross-mixing points, therefore the mixing effect is good. Its degree of uniformity may be over 99.9%. Its Max loading efficiency may be 0.9(the loading efficiency of ordinary mixer is 0.4-0.6). Its mixing time is short and its efficiency is high.
The design of mixing drum is unique. Its inner wall is polished finely. Its advantages are no dead corner, no pollution to raw material, convenient in discharge, easy in clean and so on.
Technical Parameters
| Type | THDM-5 | THDM-100 | THDM-200 | THDM-400 | THDM-600 | THDM-800 | THDM-1000 |
| Material barrel volume(L) | 5 | 100 | 200 | 400 | 600 | 800 | 1000 |
| Max loading volume(L) | 4.25 | 85 | 170 | 340 | 510 | 680 | 850 |
| Max loading weight(kg) | 5 | 80 | 150 | 200 | 300 | 400 | 500 |
| Spindle rotation speed(r/min) | 24 | 15 | 12 | 10 | 10 | 10 | 10 |
| Motor power(kw) | 0.37 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 |
| Overall dimensions(mm) | 600*1000*1000 | 1200*1800*1500 | 1300*1600*1500 | 1500*2200*1500 | 1850*2500*1650 | 1900*2400*2100 | 1950*2500*2400 |
| Weight(kg) | 150 | 500 | 750 | 1200 | 1500 | 1650 | 1800 |
Product Working Principle
During the period of operation, because the mixing drum has multi-directional actions of motion, it speeds up the fluid and diffused effect of raw material. Meanwhile it avoids the phenomenon of segregation and accumulation caused by centrifugal effect in ordinary mixer and no dear corner. It can guarantee the best quality of mixed raw material.
Structure: this machine consists of stand, transmission system, electric control system, multi-directional motion mechanism, mixing drum and so on. The mixing drum contacted with raw material is made of stainless steel. The inner and outer wall of drum is polished.

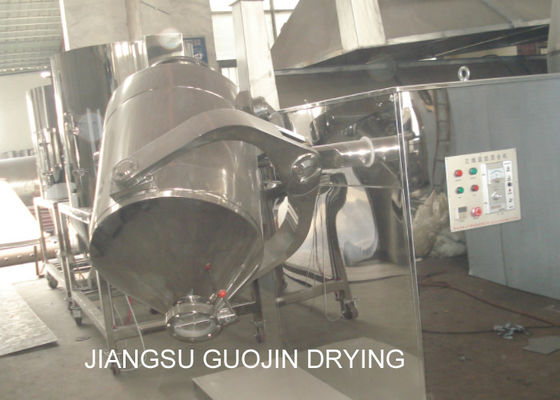

Production Show
