HPM Series Horizontal Ploughshare Mixer
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | HPM-0.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | HPM Series Horizontal Ploughshare Mixer | Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Model Type: | HPM-0.1 | Mixed Amount: | 40-60kg/batch |
| Equipped Power: | 6kw | Weight: | 430kg |
| Mixing Type: | Batch Mixing | Heating Source: | Electrical |
| Highlight: | mixing equipment,blending machine |
||
Product Description

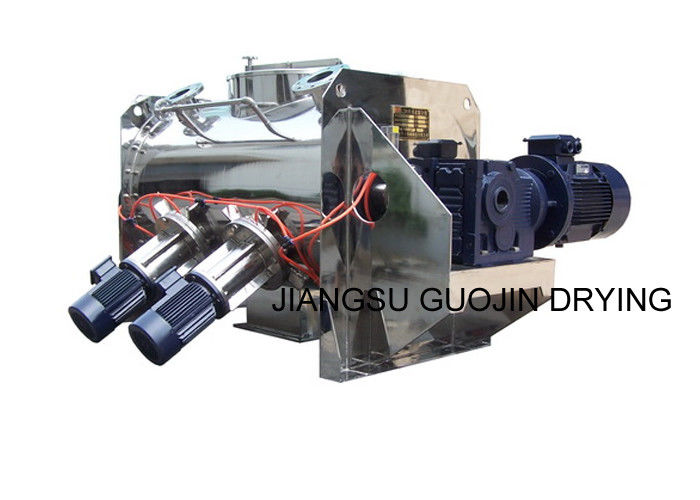

HPM Series Horizontal Ploughshare Mixer
This machine consists of four parts: transmission mechanism, horizontal cylinder, plow blade and fly blade. The material flows axially along the cylinder wall under the action of the plow blade, and is thrown by the high-speed rotating fly blades when flowing through the fly blades, thus achieving uniform mixing in a short time.
Technical Parameters
| Model | HPM-0.1 | HPM-0.3 | HPM-0.5 | HPM-1 | HPM-2 | HPM-4 | HPM-6 | HPM-8 | HPM-10 | HPM-15 |
| Mixed a mount/batch(kg) | 40-60 | 120-180 | 200-300 | 400-600 | 800-1200 | 1600-2400 | 2400-3600 | 3200-4800 | 4000-6000 | 6000-9000 |
| Equipped power(kw) | 6 | 8.4 | 9.9 | 23 | 30.5 | 38 | 38 | 46 | 53 | 82.5 |
| Weight(kg) | 430 | 950 | 1100 | 1800 | 2520 | 3220 | 6750 | 7200 | 7500 | 9200 |
Product Feature
1. The mixing time is short, and it has good adaptability to the mixing of materials with large diference in particle size and density.
2. The strucral characteristics are especially suitable for liquid additioin mixing and wet granulation, and the particle size iss between 0.3-3mm and 3mm.

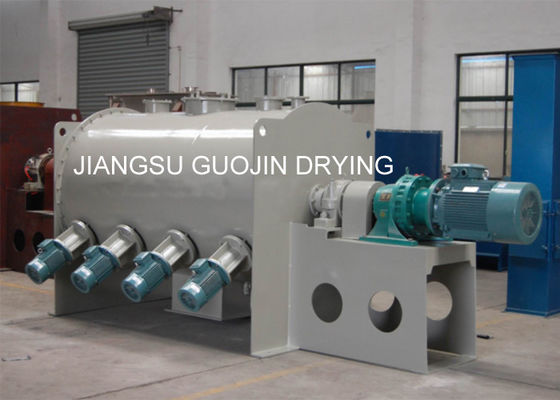

Product Show
electrical, steam, natural gas or other
