SPCD Series Single Pass/Single Stage Conveyor Mesh Belt Dryer
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO,CE |
| Model Number: | SPCD-1.2-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | SPCD Series Single Pass/Single Stage Conveyor Mesh Belt Dryer | Model Type: | SPCD-1.2-10 |
|---|---|---|---|
| Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing | Unit No.: | 5 |
| Belt Width: | 1.2M | Length Of Drying Section: | 10M |
| Thickness Of Maaterial Covered: | 10-80mm | Temperature: | 60-150 Deg. C |
| Steam Pressure: | 0.2-0.8Mpa | Steam Consumption: | 150-375kg/h |
| Drying Time: | 0.25-1.5h | Blower Power: | 8.8kw |
| Equipment Power: | 9.55kw | Heat Source: | Electricity, Steam |
| Highlight: | hot air dryer,hot air dryer machine |
||
Product Description
SPCD Series Single Pass/Single Stage Conveyor Mesh Belt Dryer
1, Single layer Mesh Belt Dryer / Vegetable Mesh Belt Dryer / Vegetable Dryer
2, Good mobility and dissolving
3, Easy operation and control
Product Descriptions
The raw material after washed should be distributed on the conveyer belt through suitable mechanism such as star distributor, swing conveyor, crusher or granulator, the conveyer passes through the channel including of one or several heating unit. Each heating unit is equipped with air heater and circle system. Each channel has one or several damp discharge systems. When the conveyer passes through it, hot air will pass through the raw material from up to down or from down to up. In this way the raw material can be dried uniformly.
Product Application
The vegetable dryer is an industrial continuous drying equipment. It is widely used for chemical industry, foodstuff industry( fruit and vegetable or nut ), pharmaceutical industry, construction materials industry, electronic industry and so on. Especially it is suitable for drying raw materials that are good in breathability and have the shape of pieces or strip of granule. It is also possible to dry the pasted raw materials such as filter cake after shaped through granulator or extruder.
Product Feature
1, Air quantity, heating temperature, materials staying time and feeding speed can be adjusted to achieve the best drying effect.
2, The equipment configuration is flexible, mesh belt washing system and materials cooling system can be used.
3, Most air is recycled to realize saving energy
4, The machine is equipped with unique air dividing apparatus, it makes the hot air distribute uniform better and guarantee the quality of products is constant.
5, Heating source can be steam, conduction oil,, electricity, coal (oil), or hot air furnace.
Technical Parameters
| Type | SPCD-1.2-8 | SPCD-1.2-10 | SPCD-1.6-8 | SPCD-1.6-10 | SPCD-2-8 | SPCD-2-10 |
| Unit number | 4 | 5 | 5 | 5 | 4 | 5 |
| Belt width(m) | 1.2 | 1.2 | 1.6 | 1.6 | 2 | 2 |
| Length of drying section(m) | 8 | 10 | 8 | 10 | 8 | 10 |
| Thickness of the mataerial to be covered(mm) | 10~80 | |||||
| Temperature(oC) | 60~150 | |||||
| Steam pressure(Mpa) | 0.2~0.8 | |||||
| Steam consumption(kg/h) | 120-300 | 150-375 | 150-375 | 170-470 | 180-500 | 225-600 |
| Drying time(h) | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 |
| Drying efficiency(kg H2O/h) | 60-160 | 80-220 | 75-220 | 95-250 | 100-260 | 120-300 |
| Total power of the blower(kw) | 6.6 | 8.8 | 9 | 12 | 12 | 16 |
| Total power of the equipment(kw) | 7.15 | 9.55 | 9.55 | 12.75 | 12.55 | 16.75 |
Sketch of Structure

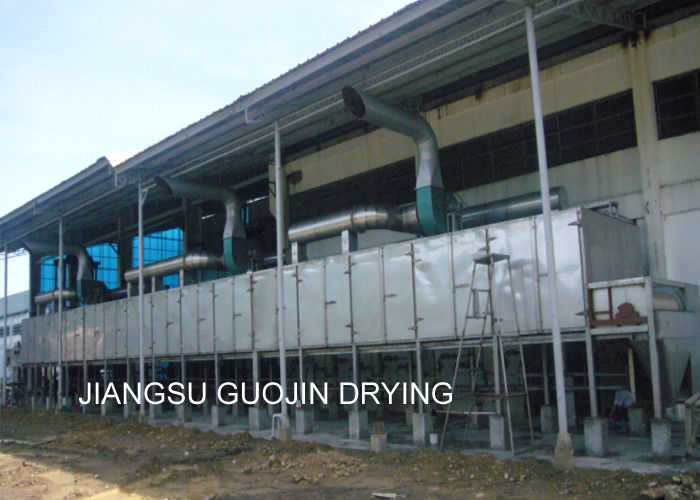

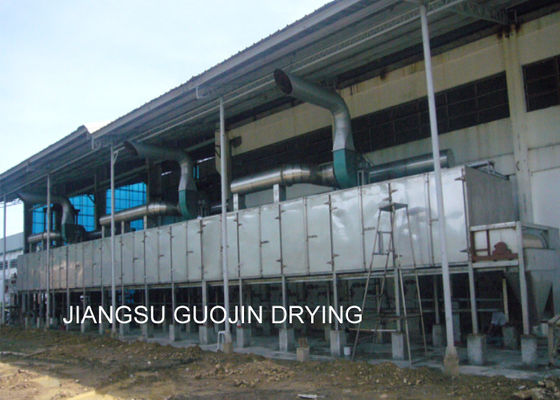

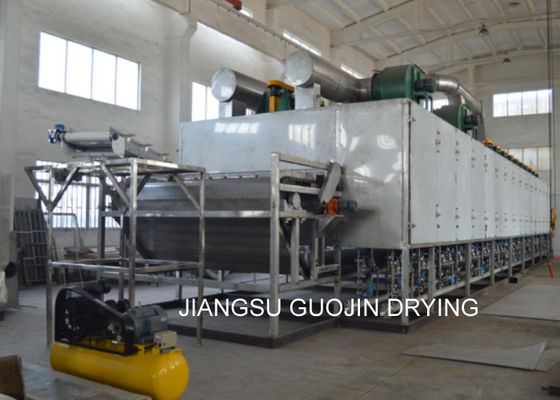

Product Show
