HFBD Horizontal Continuous GMP Fluidized Bed Dryer
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | CE |
| Model Number: | HFBD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | HFBD Horizontal Continuous GMP Fluidized Bed Dryer | Model Type: | Fluid Bed Drying Equipment |
|---|---|---|---|
| Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing | Condition: | New |
| Place Of Origin: | Jiangsu, China | Voltage: | 220V - 450V |
| Power: | Depand On The Model | Certification: | ISO9001,CE |
| Key Selling Points: | Long Service Life | Warranty: | 1 Year |
| Material: | Stainless Steel , Carbon Steel | Drying Type: | Continuing Drying |
| Heating Source: | Steam,Natural Gas, LPG, Coal, Electricity | ||
| Highlight: | GMP Fluidized Bed Dryer,Horizontal Fluidized Bed Dryer,continuous vfbd dryer |
||
Product Description
HFBD Series Horizontal Continuous GMP Fluidized Bed Dryer
The fluidize bed dryer consists of air filter, heater, fluidized-bed main machine, feeder, cyclone separator, cloth bag duster, high-pressure centrifuge fan, and operation table. The dust collector shall be equipped according to the properties of raw materials. You can use cyclone separator or cloth bag duster according to the materials characteristics, the cyclone separator is mainly used for high specific gravity materials and the cloth bag duster is mainly used for powder and small granule materials. The air feeding device and belt conveyor is optional. The heat source can use steam, electricity, hot air furnace as per customer requirements.
Product Working Principle
The granular solid material is fed to fluidized bed dryer by the feeder. The blower will blows the filtered clean hot air heated into the fluidized bed at the bottom of the distribution plate and fluidization to gas-solid heat and mass exchange to heat the solid material. The dried material is discharged from the discharge outlet. The exhaust gas is discharged from the top of the fluidized bed and the solid power will be collected by the cyclone separator or cloth bag duster.
Product Application
This dryer is widely used for medicines, chemical raw materials, foodstuff, grain processing, feed, and etc.
Example applicable materials such as raw medicine, tablet, Chinese medicine, health care products, drinks, feed, resin, citric acid and other powders. The suitable drying diameter of raw material is 0.1~6mm. The best drying diameter of raw material will be 0.5~3mm.
Technical Parameters
| Model | Bed layer area(M2) | Drying capacity(kg/h) | Air blower power(kw) | Air blower air pressure(Pa) | Air Volume(M3/h) | Air intake temp.(oC) | Material discharge temp.(oC) | Steam consumption(kg/h) | Elec power(kw) | |
| HFBD-10A | 0.25 | 10-15 | 5.5 | 4900 | 2300 | 60--140 | 40-80 | 50 | 30 | |
| HFBD-10B | 0.25 | 4 | 3800 | 2300 | ||||||
| HFBD-20A | 0.5 | 20-25 | 7.5 | 5000 | 3100 | 100 | 60 | |||
| HFBD-20B | 0.5 | 5.5 | 3500 | 3100 | ||||||
| HFBD-30A | 1.0 | 30-45 | 15 | 6000 | 4200 | 150 | 90 | |||
| HFBD-30B | 1.0 | 11 | 4700 | 4200 | ||||||
| HFBD-50A | 2.0 | 50-80 | 22 | 7400 | 6000 | 250 | 150 | |||
| HFBD-50B | 2.0 | 18.5 | 5900 | 6000 | ||||||
Sketch of Structure
Cyclone Model

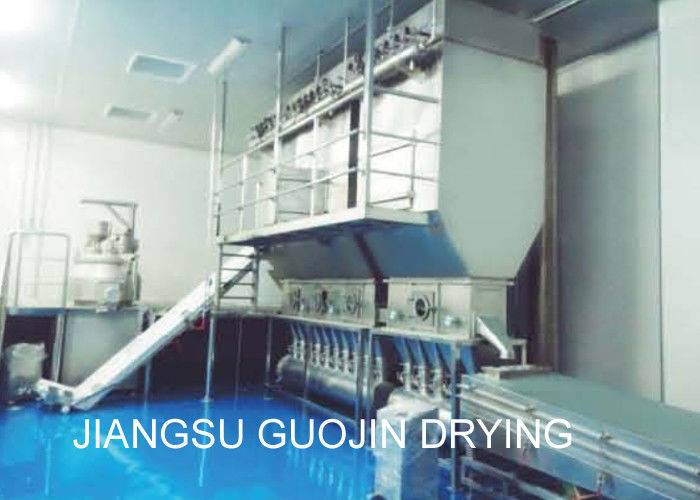

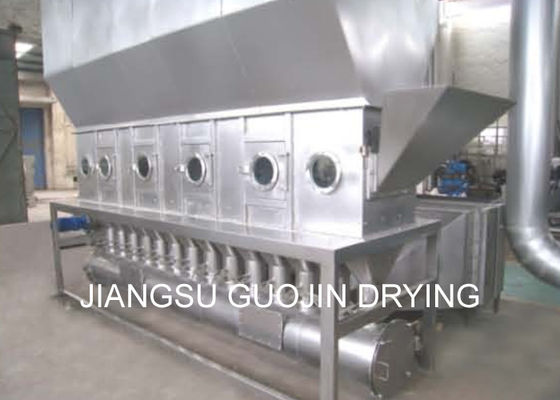

Product Show
