BVFB Series Vertical Fluid Bed Dryer 2500mm Height For Granule Drying
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | CE |
| Model Number: | BVFB-30 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | BVFB Series Vertical Fluid Bed Dryer 2500mm Height For Granule Drying | Model Type: | BVFB-30 |
|---|---|---|---|
| Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing | Steam Consumption: | 70kg/batch |
| Compressed Air Amount: | 0.3M3/min | Fan Power: | 5.5kw |
| Temperature: | Auto Adjust 120 Deg.C | Yield: | >99 |
| Operation Time: | 15-30min | Noise: | <75dB |
| Main Machine Height: | 2500mm | Drying Type: | Batch Drying |
| Heating Source: | Steam,Natural Gas, LPG, Coal, Electricity | ||
| Highlight: | Granule Fluid Bed Dryer,Fluid Bed Dryer 2500mm Height,vertical fluidized bed dryer |
||
Product Description
BVFB Series Vertical Fluid Bed Dryer 2500mm Height For Granule Drying
The powder granule in fluid bed appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the
same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains
adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out
continuously. Finally it forms ideal, uniform and porous granules.
Product Application
1.Drugs granulation and coating
2.Granulation: Tablet particles, granule particles, capsule particles
3.Coating: particles, pill covers, color-prepared, slow-release, films, enteric coating
4.Food granulation and coating Granulated sugar, coffee, cacao powder, cream, juice powder, amino acids, sauce, puffed food
5.Pesticide, paint pigment, dry granulation Powder, granules, block materials
Product Function
1.By using powder granulation, to improve the liquidity and thinner dust.
2.By using powder granulation, to improve solubility property.
3.Mixing—granulation—drying can be finished in one device (one-step granulation)
4.To adopt antistatic filtering mediums, to ensure safe operation.
5.Caking agent atomizer adopts multi-fluid spray gun to maintain uniform spray particles and to increase the rate of qualified products greatly.
6.No dead-corner of equipment; it is easy and rapid of feeding or discharging materials and clean of washing to satisfy the GMP standard.
Technical Parameters
| Type | 3 | 5 | 30 | 60 | 120 | 200 | 300 | 500 | ||
| Container of raw material | dia. | mm | 300 | 400 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 |
| volume | L | 12 | 22 | 100 | 220 | 420 | 670 | 1000 | 1500 | |
| Production capacity | Min | kg/batch | 1.6 | 4 | 15 | 30 | 80 | 100 | 150 | 250 |
| Max | kg/batch | 4 | 6 | 36 | 72 | 140 | 240 | 360 | 600 | |
| Consume of Steam | kg/batch | 12 | 23 | 70 | 140 | 211 | 282 | 366 | 465 | |
| Amount of compressed air | m3/min | 0.3 | 0.3 | 0.3 | 0.6 | 0.6 | 0.9 | 1.1 | 1.6 | |
| Fan Power | kw | 2.2 | 4 | 5.5 | 11 | 18.5 | 22 | 30 | 45 | |
| Temperature | oC | Normal temperature to 120oC | ||||||||
| Yield | % | >99 | ||||||||
| Operation time | min | 15~30 | ||||||||
| Content at final term. | % | ~0.2 | ||||||||
| Noise | dB | <75 | ||||||||
| Height of main machine | mm | 2100 | 2300 | 2500 | 3000 | 3300 | 3800 | 4000 | 4400 | |

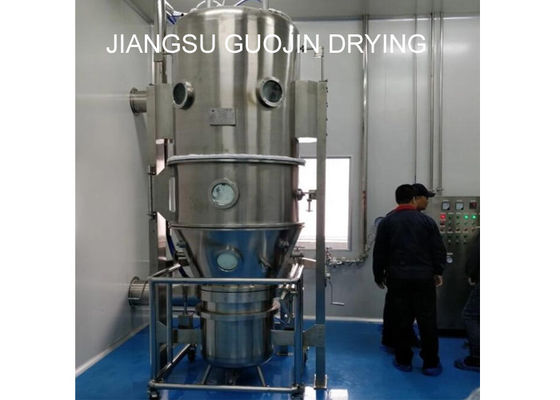

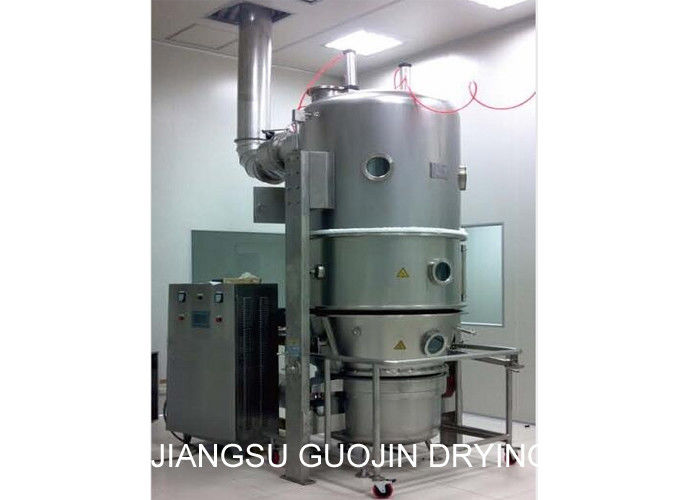

Product Show
