SFBD Series 11rpm Vertical Fluid Bed Dryer With Internal Stirrer
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | CE |
| Model Number: | SFBD-100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | SFBD Series 11rpm Vertical Fluid Bed Dryer With Internal Stirrer | Model Type: | SFBD-100 |
|---|---|---|---|
| Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing | Air Volume: | 3488m3/h |
| Air Pressure: | 533mmH2O | Fan Power: | 11kw |
| Stirring Power: | 0.55kw | Stirring Speed: | 11rpm |
| Steam Consumption: | 170kg/h | Operation Time: | 15-30 According To The Condition |
| Drying Type: | Batch Drying | Heating Source: | Steam,Natural Gas, LPG, Coal, Electricity |
| Highlight: | 11rpm Fluid Bed Dryer,Internal Stirrer Vertical Fluid Bed Dryer,11rpm fluidized bed dryer |
||
Product Description
SFBD Series 11rpm Vertical Fluid Bed Dryer With Internal Stirrer
Use screw to extrude and vibrate granule and granulate using the methods of humidity, high speed and mixing.
This machine is suitable for drying humidity block or powder raw material in the fields such as pharmaceutical, foodstuff, feedstuff, chemical industries and so on.
The raw material is large in granule and small in block and having adhesive property.
Suitable for raw materials, its volume will be changed when dry, such as giant arum, polyacrylamide, etc.
Working Principle
When air purified and heated, it is introduced from the bottom of induced-draft fan and passed through the screen plate of raw material. In working chamber, the state of fluidization is formed through stirring and negative effect. The moisture is evaporated and removed rapidly and the material is dried quickly.
Features
1.The structure of fluidized bed is round so as to avoid dead corner.

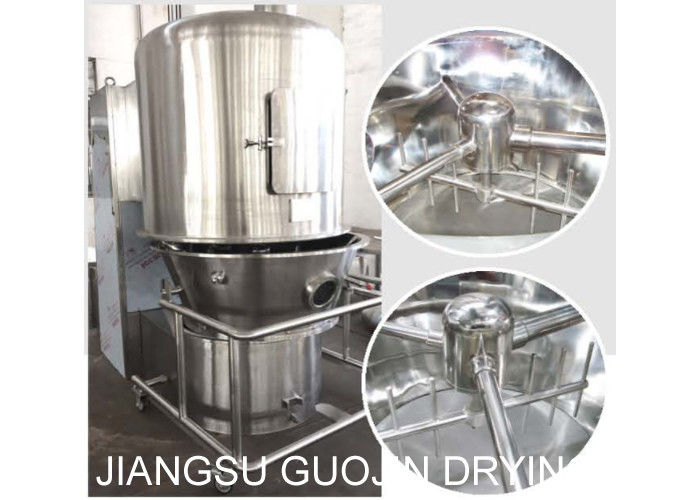

2.Inside the hopper there is a stirrer in order to avoid agglomeration of raw material and forming canal of flow.
3.The granule is discharged through the method of turning over. In this way it is very convenient and full. The discharging system can be designed as request too.
4.It is operated at the conditions of negative pressure and seal. The air is filtered. Therefore it is simple in operation and convenient in clean. It is an ideal equipment that is in conformity with the requirements of GMP.
5.The drying speed is fast and the temperature is uniform. In general the drying time is 20-30 minutes for each batch.
Technical Parameters
| Item | Unit | Type | |||||||
| Raw material | Kg | 60 | 100 | 120 | 150 | 200 | 300 | 500 | |
| Fan | Air volume | m3/h | 2361 | 3488 | 3400 | 4901 | 6032 | 7800 | 10800 |
| Air pressure | mmH2O | 594 | 533 | 533 | 679 | 787 | 950 | 950 | |
| Power | kw | 7.5 | 11 | 15 | 15 | 22 | 30 | 45 | |
| Stirring power | kw | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.75 | 1.1 | |
| Stirring speed | rpm | 11 | |||||||
| Steam consumption | kg/h | 141 | 170 | 170 | 240 | 282 | 366 | 451 | |
| Operation time | min | 15-30 according to the condition | |||||||
| Height of maine machine | Square | mm | 2750 | 2850 | 2850 | 2900 | 3100 | 3300 | 3650 |
| Round | mm | 2700 | 2900 | 2900 | 2900 | 3100 | 3600 | 3850 | |
Flowchart

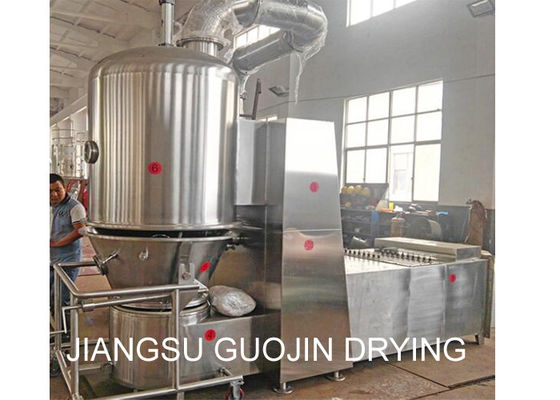

Product Show
