50kg Food Vacuum Commercial Freeze Dryer

50kg Food Vacuum Commercial Freeze Dryer

Product Details:

Place of Origin: China
Brand Name: OEM
Certification: CE;ISO

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export Carton
Delivery Time: 20-30days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Type: Vacuum Drying Equipment Drying Capacity (kg): 50 Kg
Application: Medicine Processing, Chemicals Processing, Food Processing Condition: New
Voltage: Customized, 220V/380V Power(W): 16kw
Dimension(L*W*H): 3000*1500*1800mm Key Selling Points: High Safety Level
Warranty: 2 Years After-sales Service Provided: Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
Weight (KG): 1500 Applicable Industries: Food & Beverage Factory, Farms
Local Service Location: None Showroom Location: None
Weight: 1500kg Power: 16kw
Dry Area: 5m2 Water Removal Speed: 50kg/12h
Tray Number: 12 Temperature: -55-120℃
Highlight:

Vacuum Commercial Freeze Dryer

,

50kg Commercial Freeze Dryer

,

Food Commercial Freeze Dryer

Product Description

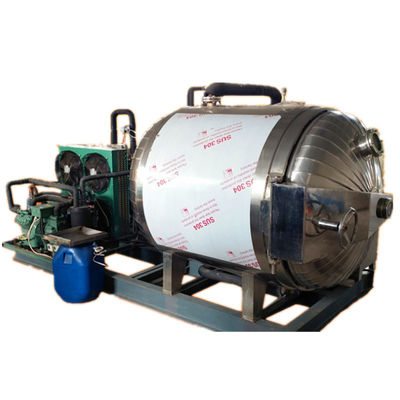

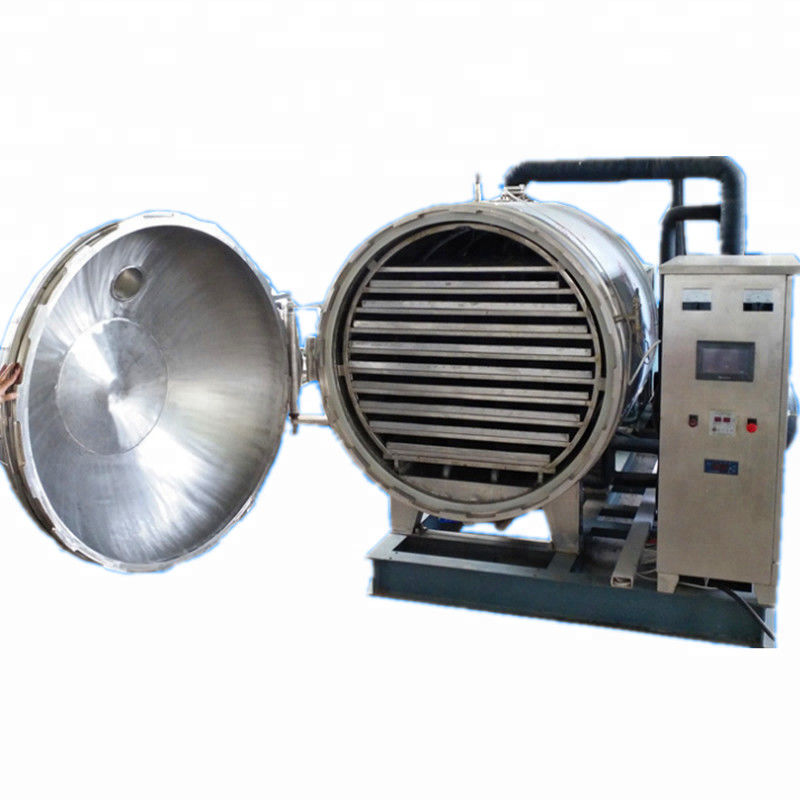

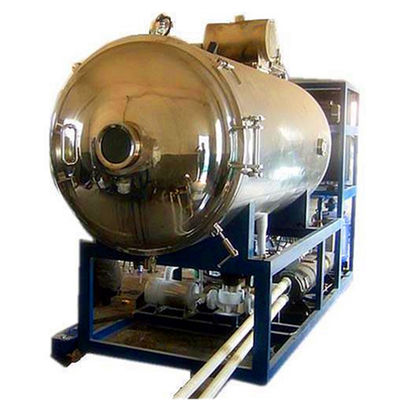

50kg Food Vacuum Commercial Freeze Dryer





Product Introduction Of Vacuum Freeze Dryer :



Freeze-drying is a technique of drying by the principle of sublimation. It is a process in which the dried substance is rapidly frozen at a low temperature, and then the frozen water molecules are directly sublimated into a water vapor escape process under a suitable vacuum environment. The product obtained by drying is referred to as a lyophilizate, and the process is referred to as lyophilization. The substance is always in a low temperature (freezing state) before drying, and the ice crystals are uniformly distributed in the substance, and the sublimation process does not cause concentration due to dehydration, thereby avoiding side effects such as foaming and oxidation caused by water vapor. The dry material is porous in the shape of a dry sponge, the volume is basically unchanged, and it is easily soluble in water and restored to its original state. It is very resistant to the physical and biological changes of dry matter.



Vacuum freeze dryer components: food pre-freezing system, freeze drying tank, heating system, vacuum system, refrigeration system, material transfer system and monitoring system.





Technical Parameters Of Vacuum Freeze Dryer:

Model MST-ZK1 MST-ZK5 MST-ZK10
Dry area 1m2 5m2 10m2
Loading capacity 10kg 50kg 100kg
Power 6kw 16kw 28kw
Tray size 300*800*25 600*800*25 600*1000*25
Shelf number 8 13 18
Tray number 7 12 17
Shelf temperature                           -55∼120
Water removal speed 10kg/12h 50kg/12h 100kg/12h
Dimension(mm) 1300*700*1300 3000*1500*1800 3200*1600*2000



50kg Food Vacuum Commercial Freeze Dryer 0



Our Service:

1. Each machine is manufactured by professional experienced staff.



2. Production process is under strict supervision and adopts China and world toppest production engineering.



3. The warranty time is two years. Quick-wear part is excluded.When warranty date expires, lifetime maintenance service is provided.



4. Inspected by the Inspection Institution of Bureau Veritas Certification.


5. 100% QC inspection Before Shipment.


6. Best Quality & Best Service with Competitive price.





FAQ:



Q: How can I pay my order?

A: We accept T/T, Western Union , Alibaba Trade assurance. Especially Alibaba Trade assurance,. Which is guaranteed by Alibaba, it is more safe and effective. For those orders less than 500USD, we also can accept PayPal payment.



Q: Can you show how the machine works?

A: Certainly, we will send you the Operating video & instruction to you together with machines, to help you use the machines better.


Q: How can I know your machine works well?

A: Before delivery, we will test and adjust the machine working condition for you, then you can use directly when you get it.



Q: How can I know your machine is designed for my product?

A: You can send us samples of your product and we test it on machine.





Q: Do you have a CE certificate?

A: For every model of machine, it has a CE certificate
