Food Sterilization Microwave Freeze Drying Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE;ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Type: | Drying Oven | Application: | Medicine Processing, Chemicals Processing, Food Processing, Food Fruit Chemical Medicine Herb |
|---|---|---|---|
| Condition: | New | Voltage: | Customer Made |
| Power(W): | 22kw 40kw 50kw 60kw | Dimension(L*W*H): | 1200*1500*2100 |
| Key Selling Points: | High Safety Level | Warranty: | 1 YEAR, One Year |
| After-sales Service Provided: | Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, No After-sales Service | After Warranty Service: | Field Maintenance And Repair Service |
| Applicable Industries: | Food & Beverage Factory | Local Service Location: | None |
| Showroom Location: | None | Name: | Microwave Drying Machine |
| Heating Source: | Microwave Drying | Capacity: | 100-2000kg |
| Material: | Stainless Steel | Function: | Drying , Ripening,sterilizing |
| Installation: | Guide By Engineer | Weight: | 2000kg -3000kg |
| Highlight: | Microwave Freeze Drying Machine,Sterilization Freeze Drying Machine,1200*1500*2100mm Freeze Drying Machine |
||
Product Description

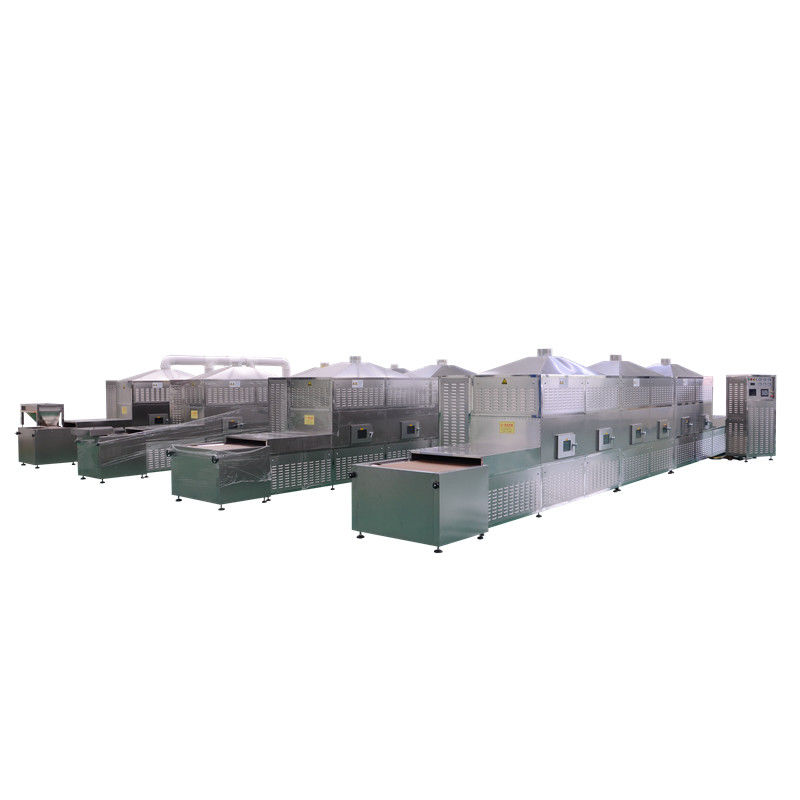

Food Sterilization Microwave Freeze Drying Machine
Description
Microwave sterilization drying equipment is a new type of highefficiency drying equipment. It has the functions of fixation, drying, terilizing, killing insects, baking, puffing, heating, unfreeze etc. The microwave directly acts on the material itself, material inside and outside be heated at the same time, no heat loss, continuous Production, high efficiency
Bean microwave drying machine can be widely used in metallurgical, chemical, pharmaceutical, food,wood and other fields .it can provide fast ,
energy saving , high efficiency of microwave drying , microwave sterilization, microwave dehydration, microwave extraction, microwave heating and microwave sintering process and etc.
Main Features
1) Time saving and speed is fast.
2) Keep nutrients and traditional flavor-low temperature sterilization.
3) Energy saving and uniform processing
4) Easy control and labor saveing
5) Improve woking conditions and save cover area.
|
Model |
GX-20HMV |
GX-30HMV |
GX-40HMV |
GX-60HMV-8X |
GX-120HMV-12X |
GX-200HMV-18X |
|
Rated Input Apparent Power |
≤20kw |
≤30 kw |
≤40 kw |
≤60 kw |
≤120 kw |
≤200 kw |
|
Microwave Output Power |
≥20 kw |
≥30 kw |
≥40 kw |
≥50 kw |
≥110 kw |
≥180 kw |
|
Work Process Temperature |
70~200℃( Controllable) |
|||||
|
Equipment Cooling Method |
Water cooling /Air cooling |
|||||
|
Inlet And Outlet Height |
40~100mm |
40~100mm |
40~100mm |
40~100mm |
40~100mm |
40~60mm |
|
Transmission Belt Height |
600~1000mm |
|||||
|
Dehydration Rate |
16-20kg/hr |
24-30kg/hr |
32-35kg/hr |
40~50kg/hr |
80~100kg/hr |
140~170kg/hr |
|
Dimensions (L*W*H) |
8640 *1200 *2200(mm) |
11000 *1200 *2200(mm) |
11000 *1500 *2200(mm)
|
12500*1600*2200 (mm) |
16500*1800*2200 (mm) |
24500*1800*2200 (mm) |
Detail
1. ENUIRONHENTAL POLLUTION-FREE
Microwave drying equipment does not produce environment of high temperature, dust and noise, without waste water and exhaust gas in the process of operation, no waste is generated.
2. HEATING UNIFORHITY
Material can generate heat at the same time under the action of electromagnetic waves from microwave.there will be no coke endogenous phenomenon.
3. ADUANCED TECHNOLOGY EASY TO CONTROL
Microwave heating just have the basic conditions of water, electricity, as long as control power of microwave which can realize the automatic control of heating process immediately.
4. SHALL FOOTPRINT SAFE AND HARHLESS
Because the microwave energy is control in metal heating indoor and work in the waveguide tube, so rarely microwave leak, no radiation damage and harmful gas emissions, and does not produce waste heat and dust pollution.
Application
Application : Microwave dryer has four function -drying ,ripening, fixation, sterilization ,down below
is our different material working case .
