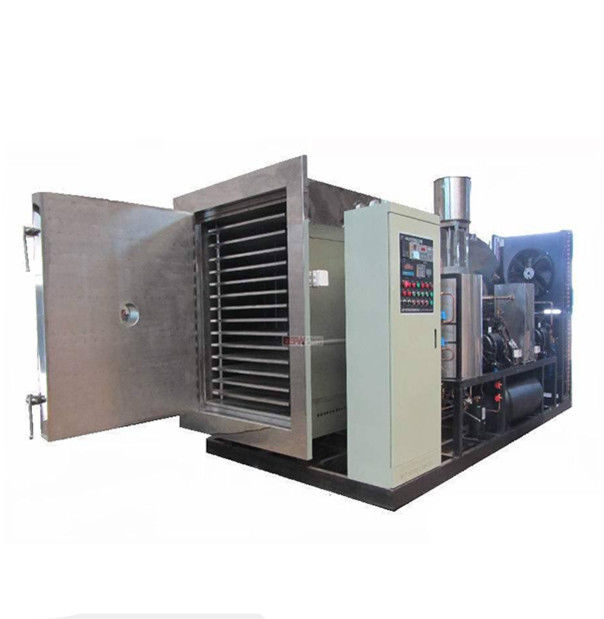

Seafood / Condiments 792 Trays Freeze Drying Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE;ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Type: | Vacuum Drying Equipment | Application: | Medicine Processing, Food Processing, FREEZE DRYING |
|---|---|---|---|
| Condition: | New | Voltage: | 380v |
| Power(W): | 85kw | Dimension(L*W*H): | 8300*2300*2700mm |
| Warranty: | 2 Years | After-sales Service Provided: | Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Engineers Available To Service Machinery Overseas |
| Weight: | 15 T | ||
| Highlight: | 792 Trays Freeze Drying Machine,Seafood Freeze Drying Machine,Condiments Freeze Drying Machine |
||
Product Description
Vacuum freeze drying technology is the most advanced technology for food dehydration processing at present. Compared with the common drying method, the freeze-dried food produced with this technology features long period of quality assurance, good re-hydration nature, good-looking color, good flavor, taste, shape and high content of nutritious components. The dried food basically remains unchanged in its volume and shape, it looks like sponge and has no shrinking. This kind drying technology can be widely used in process of vegetables, fruits, condiments, aquatic products, biological products, medicine, beverage and etc.
Working principle
Instead of traditional vaporization dehydration method, the vacuum freeze drying technology is dehydrate products by sublimation directly from ice to vapor. During the Freeze drying process, the materials will be frozen to -18°c, then move into the vacuum drying tank for dehydration, automatic control system will set the vacuum and heating temperature according to the freeze drying cirve of each products to maintain the proper circumstances for FD processing. The materials stay in frozen status during the drying process and water vapor will be condensed on the surface of cold trap coils to absort the water out from the materials.
Application
The vacuum freezing and drying machine can be widely used in various fields, such as vegetables, fruits, condiments, seafood, biological products, medicine, beverage, specimen, etc.
Parameter
|
Parameters |
Model |
FDGY-0.5 |
FDGY-10 |
FDGY-20 |
FDGY-50 |
FDGY-100 |
FDGY-150 |
FDGY-200 |
FDGY-280 |
|
Drying area (m2) |
0.5 |
10 |
20 |
50 |
100 |
150 |
200 |
275 |
|
|
Mean dehydrating amount (kg/h) |
0.6 |
12 |
20 |
50 |
100 |
150 |
200 |
275 |
|
|
Size of material tray (m) |
310×540×30 |
745×635×30 |
435×555×30 |
540×635×30 |
|||||
|
Number of material tray (pcs) |
3 |
21 |
80 |
144 |
288 |
480 |
576 |
792 |
|
|
Size of pot (M) |
1.5×1.6×1.6 |
φ1.4×2.1 |
φ1.8×2.4 |
φ2.4×4.8 |
φ2.4×8.9 |
φ2.4×12.8 |
φ2.4×16.6 |
φ2.4×21.9 |
|
|
Operation vacuum (pa) |
13.3~200 |
26.6~200 |
|||||||
|
Heating plate T (°C) |
Normal temperature~+120°C |
||||||||
|
Electric heating (Kw) |
2 |
21 |
40 |
||||||
|
Steam consumption (Kg/h 0.7Mpa) |
|
|
|
140 |
270 |
450 |
540 |
750 |
|
|
Cold load consumption (Kw) |
1.5 |
21.6 |
36 |
90 |
180 |
280 |
360 |
490 |
|
|
Installed power (Kw) |
6.5 |
55.8 |
104.5 |
41.2 |
69.7 |
92.5 |
117.5 |
125.5 |
|
1. We provide English manual, one year warranty,life-long maintenance.
2. If customer need, our engineers will provide assembling and training the workers.
The buyer shall bear the engineers round trip tickets fees, basic accommodation and Transportation,the allowance shall be paid by buyer.
3 we are factory
4.what capacity do you want. and we provide both half automatic and full automatic machines
5. pls tell me detail functions of machine , so that we can recommend the best quality and the best price machine for you.
