Double Shafts KJG-10 Vacuum Hollow Paddle Dryer For Maleic Anhydride
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | KJG-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Double Shafts KJG-10 Vacuum Hollow Paddle Dryer For Maleic Anhydride | Application: | Industry Processing/Chemical Processing |
|---|---|---|---|
| Heat Transfer Area: | 10 M2 | Vacuum: | 40mbar |
| Heating Source: | Steam | Rotating Speed: | 1-15RPM |
| Transmission Power: | 7.5KW | ||
| Highlight: | Double Shafts Hollow Paddle Dryer,Maleic Anhydride Hollow Paddle Dryer,5000kg/h Vacuum Drying Machine |
||
Product Description
Double Shafts KJG-10 Vacuum Hollow Paddle Dryer For Maleic Anhydride
The continuous horizontal paddle dryer consists of a jacketed trough and two hollow shafts with hollow paddles. On the trough is a cover with the inlet for the material to be dried. The material is dried by heat transfer with the heating medium like steam, thermal oil or hot water which is flowing through the hollow shafts, hollow paddles and dimple jacket or half pipe jacket. The dried product is removed from the discharge chute via a shaftless screw conveyor. The exhaust vapors leave the dryer through an exhaust outlet on the cover. The absence of air during the drying process results in a very safe operation due to lowest oxygen content, a small and compact odour treatment and it offers the possibility of a heat recovery system in the vapour condensing unit due to the high dew point of the off-gas.
Product Main Feature
1. Continuously drying of sewage sludge, animal manures and industrial sludges;
2. Heating area: 3-200 M2
3. Drying capacity: 50-5000 kg/h
4. Vapor tight or vacuum designs are available
5. Heat source: steam, hot water or hot oil
HEAT SOURCES(Temperature at 180ºC - 250ºC)
Heating by Steam
Steam enters the hollow shaft through a rotary joint and is evenly distributed to all paddles. Condensate is removed with each revolution.
Heating by Hot Oil(thermal fluid)
Hot oil(thermal fluid) enters and exits the hollow shaft through a rotary joint. Pressure from the supply pump forces liquid through the hollow paddles.
Product Application
• The materials from such as the medicine t food , chemical industry, etc. can be dried.
• Suitable for pulpiness, paste-like mixture or power raw material.
• Temperature sensing material requiring the low temperature to be dried.
• Raw materials that are easy to oxidize or explode and have strong irritative or toxic.
• Demand to retrieve of the organic solvent.
Product Advantages
• Maximum efficiency • Coolant circulation provides optimum heat transfer
• Dust-tight or gas-tight • High heated surface area in a small process volume; small footprint
• No sweep gas • Limited off-gas treatment • Easy solvent recovery (at high temperatures)
• Constant plug flow • Gentle to fragile product • low rotational speed, low wear • Self cleaning effect on inter meshing paddles
• Good mixing in radial direction
• Plug flow in axial direction • Interplay of paddles have self-cleaning function • Small volume of gas required and little dust generated
• Compact and small footprint • high heat transfer coefficient and high energy efficiency • Handle material with high moisture content
• Low rate of revolution ensure no damage to granules
Technical Parameters
| Model | KJG-3 | KJG-9 | KJG-13 | KJG18 | KJG-29 | KJG-41 | KJG-52 | KJG-68 | KJG-81 | KJG-95 | KJG-110 | KJG-125 | KJG-140 |
| Heat transfer area(m2) | 3 | 9 | 13 | 18 | 29 | 41 | 52 | 68 | 81 | 95 | 110 | 125 | 140 |
| Effective volume(m3) | 0.06 | 0.32 | 0.59 | 1.09 | 1.85 | 2.8 | 3.96 | 5.21 | 6.43 | 8.08 | 9.46 | 10.75 | 12.18 |
| Speed range(rpm) | 5-20 | 5-20 | 5-20 | 5-20 | 5-20 | 5-10 | 5-10 | 5-10 | 5-10 | 1-8 | 1-8 | 1-8 | 1-8 |
| Transmission power(kw) | 2.2 | 4 | 5.5 | 7.5 | 11 | 18.5 | 30 | 37 | 45 | 55 | 75 | 90 | 110 |
| Device width(m) | 306 | 584 | 762 | 940 | 1118 | 1296 | 1474 | 1655 | 1828 | 2032 | 2210 | 2480 | 2610 |
| Overall width(m) | 736 | 841 | 1066 | 1320 | 1474 | 1676 | 1854 | 2134 | 2186 | 2438 | 2668 | 2732 | 2935 |
| Equipment length(m) | 1956 | 2820 | 3048 | 3328 | 4114 | 4724 | 5258 | 5842 | 6020 | 6124 | 6850 | 7500 | 7860 |
| Total length(m) | 2972 | 4876 | 5486 | 5918 | 6808 | 7570 | 8306 | 9296 | 9678 | 9704 | 10300 | 11800 | 12900 |
| Center height(m) | 380 | 450 | 534 | 610 | 762 | 915 | 1066 | 1220 | 1430 | 1560 | 1650 | 1760 | 1856 |
| Total Equipment height(m) | 762 | 838 | 1092 | 1270 | 1524 | 1778 | 2032 | 2362 | 2464 | 2566 | 2668 | 2769 | 2838 |

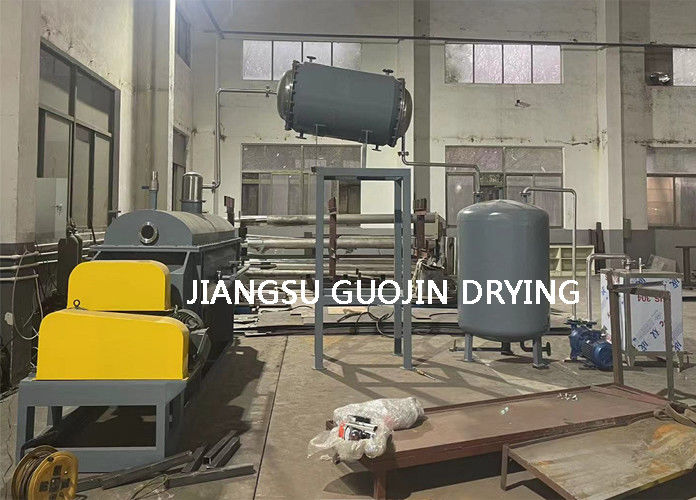

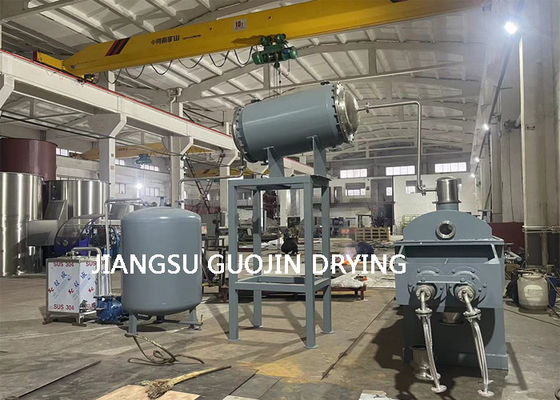

Product Show
