High Efficiency 3000L Harrow Vacuum Drying Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE;ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Vacuum Harrow Drying Machine | Application: | Medicine, Food, Chemical Industry, Etc. |
|---|---|---|---|
| Color: | Painted As Customers' Needs | Size & Weight: | According Top The Specific Design Of Drying Machine |
| Heating Way: | Intermediate With Mixing At The Same Time Inside | Certification: | CE, ISO |
| Warranty: | 1 Year | Condition: | New |
| Material: | Stainless Steel | ||
| Highlight: | 3000L Vacuum Drying Machine,Harrow Vacuum Drying Machine,3000L Vacuum Drying Equipment |
||
Product Description

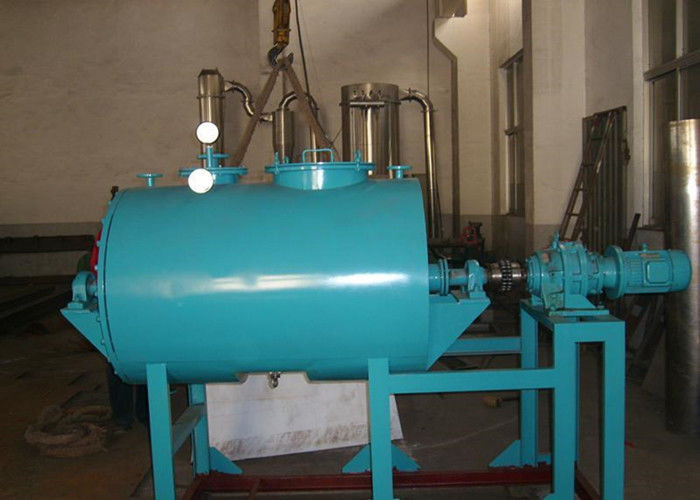

High Efficiency 3000L Harrow Vacuum Drying Machine
Description:
Vacuum Harrow drying machine has a simple structure, convenient operation, use cycle is long, stable and reliable performance, small amount of steam consumption and applicable performance is strong, good product quality, especially suitable for high temperature resistant, flammable, easy oxidation under thermal control paste material drying.
Technical Paraneters:
| Spec | ZKG-500 | ZKG-1000 | ZKG-2000 | ZKG-3000 | ZKG-4000 | ZKG-5000 |
| Working Volum (L) | 300 | 600 | 1200 | 1800 | 2400 | 3000 |
| Heating Area (m2) | 3.2 | 5.1 | 81 | 10.6 | 12.3 | 14.2 |
| Stirring Revolution (rpm) | 8-18 | |||||
| Power (kw) | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 |
| Design Pressure of Jacket (mpa) | 0.3 | |||||
Pressure in the Cylinder | -0.096-0.15 | |||||
Features:
- This vacuum harrow drying machine adopts the intermediate layer with mixing the heating way at the same inside, heat transfer one is great, thermal efficiency is high.

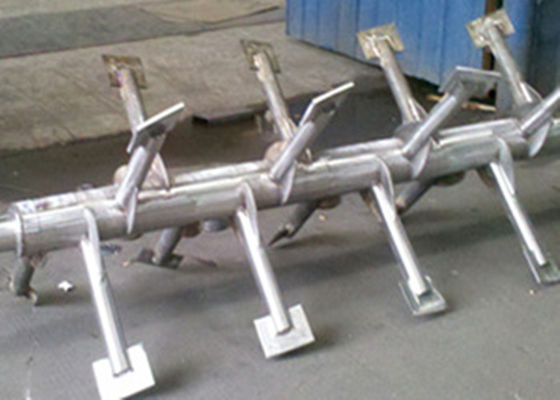

- Machine this is it mix to set up, make supplies is it circulate the state in succession to form in tube, improve the degree of consistency that the supplies are heated further.
- This machine is set and mixed, it is dry thus can carry on thick liquid form, the form of the lotion, pastel supplies smoothly.
Application:
1. Such trades as the medicine, food, chemical industry, etc. carry on the following supplier drily.
2. Suitable for thick liquid form, the pastel of the lotion, powdery supplies.
3. Temperature sensing supplies requiring the low temperature to be dry.
4. Explosive, strong, stimulating, drama poisonous substance material easy to oxidize.
5. Demand to retrieve the supplies of the organic solvent.
