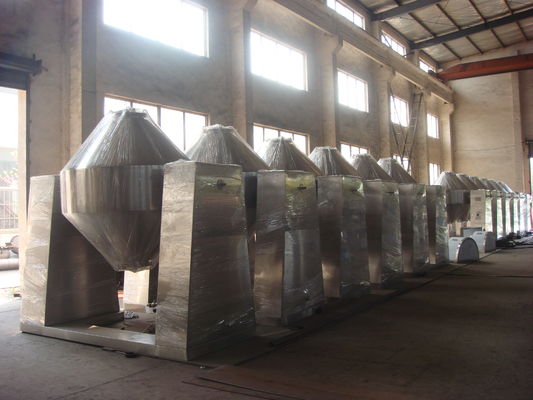

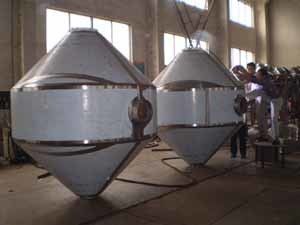

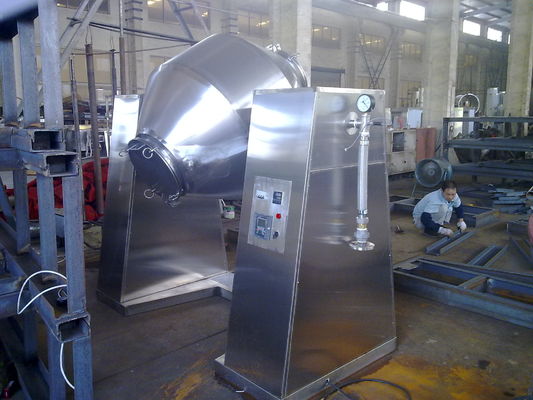

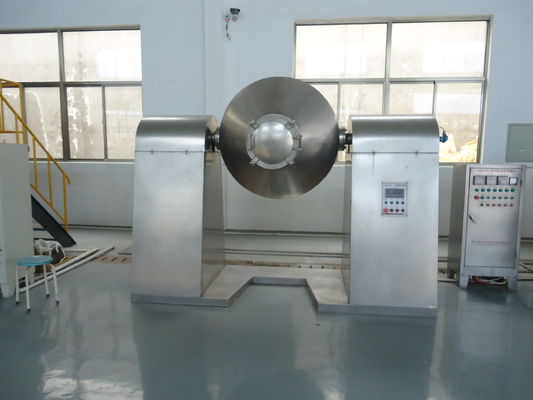

2000L Rotary Double Cone Vacuum Drying Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE;ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Metal Material: | SUS316/SUS304/ CARBON STEEL ,ETC | Heating Source: | Steam / Hot Water / Thermal Oil |
|---|---|---|---|
| Temperature: | 100-300℃ | Vacuume: | Customized |
| Density: | Customized | Vacuum Degree: | Customized |
| Warranty: | 1 Year | Condition: | New |
| Application: | Food Processing,Medicine Processing,Chemicals Processing | ||
| Highlight: | Rotary Vacuum Drying Machine,Double Cone Vacuum Drying Machine,2000L Vacuum Drying Equipment |
||
Product Description
2000L Rotary Double Cone Vacuum Drying Machine
Main Application
Cosmetic powder double cone vacuum dryer, the machine can mix and dry the powder, crystal material and granule material in chemical industry, pharmaceutical industry, foodstuff industry, metallurgy industry, construction, etc. It can also be used for the concentration of the liquor, disinfection and germicide of the material. The moisture of the material can be dried to be lower than 0.5%.Themachine can save energy sources with low labor and high efficiency, and it only needs 2-4 hours to dry the material (<40% humidity content).
Working Principle
Put the material in the vacuum and heat the material indirectly by the fixture coat.When dried, it rotates slowly, and refreshes the heating surface continuously to enhance the dry speed. The vacuum pump can absorb the moisture continuously and the steam impregnate can be reclaimed by the cooler.
Technical parameter
| Model | SZG-100 | SZG-350 | SZG-500 | SZG-750 | SZG-1000 | SZG-1500 | SZG-2000 | |
| Total volume (L) | 100 | 350 | 500 | 750 | 1000 | 1500 | 2000 | |
| Loading volume (L) | ≤50 | ≤175 | ≤250 | ≤375 | ≤500 | ≤750 | ≤1000 | |
| Rotary speed (r/min) | 3-13 | |||||||
| Motor power (kw) | 0.75 | 1.1 | 1.5 | 2 | 3 | 3 | 4 | |
| Rotary height (m) | 1.75 | 2.1 | 2.25 | 2.49 | 2.8 | 2.94 | 2.99 | |
| Tank inner pressure (Mpa) | -0.1-0.15 | |||||||
| Clip set pressure (Mpa) | ≤0.3 | |||||||
| Working temp.(°C) | Inner tank ≤85 Clip set≤ 140 | |||||||
| Heating media | Steam, Hot water, Heat transfer oil | |||||||
| Weight (kg) | 800 | 1100 | 1200 | 1500 | 2800 | 3300 | 3600 | |
| Floor area (L*W) | 2160*800 | 2260*800 | 2350*800 | 2550*1000 | 2860*1300 | 3260*1400 |
3760*1800 |
|
Ordering Information
1. Please choose the suitable model according to the primary moisture content, final moisture content, temperature, vacuum degree, and drying time. The heat source can use steam, hot water, thermal oil, and electricity. If the customer required increasing the drying capacity by add more trays, please specify in the order.
2. If the customer required installation or spare parts, please specify in the order.
3. Customized design service available.
4. We guarantee the quality of the dryer and we ensured the spare parts for the dryer is available in a long term.
Features of Rotary Vacuum Dryer
- Design is GMP
- All Product contact parts AISI 316/ 316L & non-contact parts AISI 304. Or completely 304.
- Simple & compact Design for Easy to operate, clean, convenient & user friendly.
- Automated mixing and Drying process in single bowl.
- Dust free operation.
- High vacuum operation
- Low temperature drying.
- Solvent recovery
- Continuous rotation of container, material will make complex impacting motion in the container and reach to uniform mixing and drying at low temperature..
- Continues vacuum maintenance during process.
- Vacuumed closed system with condenser, Receiver for solvent recovery & Cyclone separator to recovery the solid particle.
- Rapid & Complete discharge / Zero holdup after discharge
- The product dried is homogeneous with uniform properties.
- Very low value of final moisture even at low drying temperatures.
- Inside Filter assembly with 5 Micron.
