Pharmaceutical Synthetic Drugs Condensates Double Cone Dryer 600L Max Capacity

600L Max Loading Capacity Pharmaceutical Synthetic Drugs Condensates Double Cone Dryer

DCRD double cone vacuum dryer is a new type of drying equipment which combines similar product technologies at both home and abroad. This rotary vacuum dryer possesses a belt and chain two-stage elastic connection modes. With a low center of gravity, this drying machine can operate smoothly. Heating medium and vacuum system adopt reliable mechanical seal or rotating joint, so as to avoid defects such as the regular packing seal are easy to leak. On this basis, we modify this double cone vacuum dryer. It not only embodies the humanized design concept but also meets the GMP standards.
Biconical rotating vacuum dryer is the dryer suitable for ultra vacuum drying of all kinds of humid, crystalline and amorphous products.
Fully heated and insulated drum, rotating at low speed under high vacuum, continuously renovating the product in contact with the heated walls.



Working Principle

Confined to the surface of thermal-energy (such as hot water or low pressure steam the HTF), the heat was passed in the shell dry materials.
In the drive, as slowly rotating the tank, the tank materials continuously mixed, so as to achieve the purpose of strengthening drying.
Materials in a vacuum, steam decline in the material surface water (solvent) reached saturation point and evaporation, and the vacuum pump from the timely recovery. Materials internal water (solvent) continuously to the surface infiltration, evaporation from the three ongoing process, the material in a very short time to dry purpose.





Product Application

Apply chemical, pharmaceutical, food and other industries powdery, granular and fiber concentration, mixing, drying and low-temperature drying of materials needed (such as biochemical products more easily applied to oxidation, volatile, thermosensitive, strong stimulation, toxic materials, and not allow the destruction of crystalline materials dry.





Technical Parameters

Model	100	350	500	750	1000	1500	2000	3500	4500	5000
Volume inside of tank(L)	100	350	500	750	1000	1500	2000	3500	4500	5000
Max loading capacity(L)	40	140	200	300	400	600	800	1400	1800	2000
Max loading weight(kg)	20	70	100	150	200	300	400	700	900	1000
Revolution(rpm)	3-13					6	5	4	4	4
Heating area(M2)	1.1	2.3	2.8	3.9	5.1	6.5	8.2	12.2	16.5	18.2
Motor power(kw)	0.75	1.1	1.5	2.2	3	4	5.5	7.5	11	15
Occupied area(mm)	2160*800	2160*800	2350*800	2560*1000	2860*1300	3060*1300	3260*1400	3760*1800	3960*2000	4400*2500
Rotating height(mm)	1750	2100	2250	2490	2800	2940	2990	3490	4100	4200
Design pressure of tank(Mpa)	-0.1~0.15
Desing pressure of jacket(Mpa)	<0.3
Weight(kg)	800	1100	1200	1500	2800	3300	3600	6400	7500	8600





Schmatic of Installation

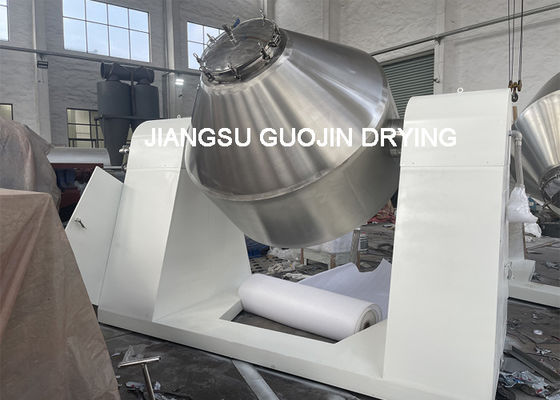

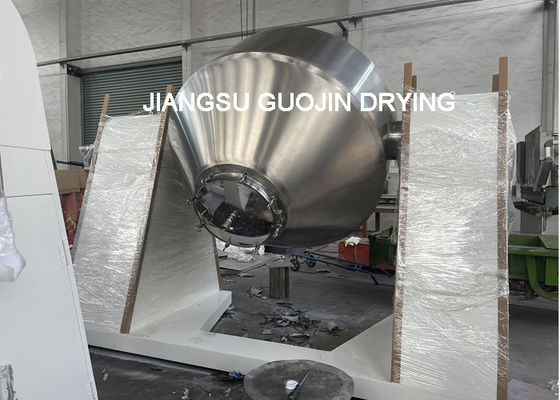

Product Show
