3kw Power KJG-5 Hollow Paddle Dryer Stainless Vacuum Drying Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | KJG-5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | 3kw Power KJG-5 Hollow Paddle Dryer Stainless Vacuum Drying Machine | Application: | Chemical Processing |
|---|---|---|---|
| Paddle Heat Transfer Area: | 3.5Square Meter | Jacket Heat Transfer Area: | 1.5Square Meter |
| Total Heat Transfer Area: | 5Square Meter | Heating Source: | Steam |
| Rotating Speed: | 5-20rpm | Water Evaporation: | 50KG/H |
| Power: | 3KW | ||
| Highlight: | 3kw Continuous Horizontal Paddle Dryer,W Shaped Structure Vacuum Drying Machine |
||
Product Description
3kw Power KJG-5 Hollow Paddle Dryer Stainless Vacuum Drying Machine
The continuous horizontal paddle dryer consists of a jacketed trough and two hollow shafts with hollow paddles. On the trough is a cover with the inlet for the material to be dried. The material is dried by heat transfer with the heating medium like steam, thermal oil or hot water which is flowing through the hollow shafts, hollow paddles and dimple jacket or half pipe jacket. The dried product is removed from the discharge chute via a shaftless screw conveyor. The exhaust vapors leave the dryer through an exhaust outlet on the cover. The absence of air during the drying process results in a very safe operation due to lowest oxygen content, a small and compact odour treatment and it offers the possibility of a heat recovery system in the vapour condensing unit due to the high dew point of the off-gas.
KJG-5 Horizontal Hollow Paddle Dryer Main Feature
Wedge-shaped hollow blades are densely arranged on the hollow shaft, and the thermal medium flows through the blades through the hollow shaft. The unit effective volume has a large heat transfer area. The temperature of the thermal medium ranges from - 40 ° C to 320 ° C, which can be water vapor or liquid type: such as hot water, heat transfer oil, etc. Indirect conduction heating does not carry air to take away heat. Heat is used to heat materials. The heat loss is only the heat dissipation to the environment through the insulation layer of the reactor body. The heat transfer surface of the wedge-shaped blade has the function of self-cleaning. The relative movement of the material particles and the wedge-shaped surface can wash off the attached materials on the wedge-shaped surface, so that the clean heat transfer surface is kept in motion all the time.
KJG-5 Horizontal Hollow Paddle Dryer Technical Parameters
| No. | Item | Parameters | Note |
| 1, | Model | KJG-5 | |
| 2, | Paddle heat transfer area [m2] | 3.5 | Including shaft surface area |
| 3, | Jacket heat transfer area [m2] | 1.5 | |
| 4, | Total heat transfer area [m2] | 5 | |
| 5, | Water evaporation [kg/h] | 50 | |
| 6, | Output capacity [kg/h] | 15-20 | |
| 7, | Diameter of paddle [mm] | 260 | |
| 8, | Effective volume [m3] | 1 | |
| 9, | Speed of rotation [rpm] | 1-15 | |
| 10, | Standard motor rating [kW] | 3 | |
| 11, | Carrier gas flow [m3/h] | 300-500 | |
| 12, | Carrier gas exhaust fan motor rating [kW] | 0.75 | |
| 13, | Machine floor space [L×W×H] | 2816X760X1370 | |
| 14, | Standard lifting weight [kg] | 1500 |

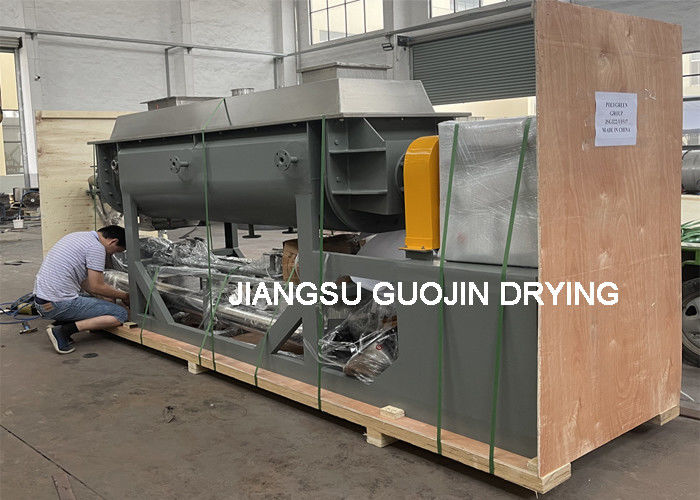

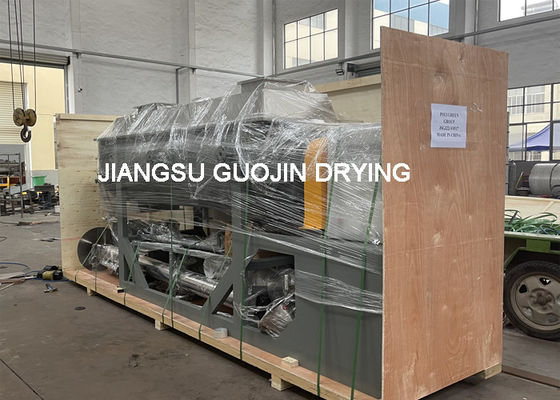

KJG-5 Horizontal Hollow Paddle Dryer Show
