Automatic Fluid Bed Granulator For Foodstuff Pharmaceutical Processing
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | FL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Automatic Pharmaceutical Multi-function Fluid Bed Granulator | Application: | Foodstuff Processing, Chemical Processing，Pharmaceutical |
|---|---|---|---|
| Model: | FL-200 | Container Volume: | 670L |
| Diameter: | 1400MM | Max Capacity: | 300KG |
| Min Capacity: | 100KG | Fan Capacity: | 6000M3/H |
| Fan Pressure: | 950mmH2O | Fan Power: | 22KW |
| Dimension: | 2.34x1.7x3.8M | ||
| Highlight: | Air Flow Control Fluid Bed Granulator,Explosion Proof Fluidized Bed Granulator,Fluid Bed Granulator 6000M3/H |
||
Product Description
Automatic Pharmaceutical Multi-function Fluid Bed Granulator
- The machine is mainly used for the operations of mixing, granulating, drying and coating of granule “Top Spraying”, etc of powder material in pharmaceutical industry, foodstuff industry, chemical industry, etc. Such as granule of tablet, granule for quick resolving drinking, condiment.
- Mixing-granulating-drying in one-step.
- Adopting double chamber filtering bags system, removing dust completely.
- Adopting multi-fluid nozzle, it guarantees that the formed granule is uniform and the content of powder is very low.
- Can choose 2 bar explosion-proof design.
- Designed, manufactured and laid out by GMP.
FL-200 Fluid Bed Granulator Features
1. GMP Design: 150 grit exterior finish, mirror finish on internal surfaces. The system can meet GMP standard;
2. HEPA air filter: The air filter consists of primary stage, secondary stage and high efficiency stage air filter and the air cleanness can reach 100,000 grade;
3. Automatic pneumatic sealing: two pneumatic cylinders lift the granulation bowl for sealing with the top chamber; the inflated square rubber ring will seal the bottom chamber to create a completely sealed granulation chamber;
4. Two-bag-filter-chamber system: The top bag filtering system has two chambers which work alternately to avoid air pressure onto the filter bag. The product rate can reach 99%.
5. Accurate air flow control: The exhaust fan is combined with Siemens inverter to accurately control the air flow rate for achieving perfect fluidization.
6. Good working condition: The whole system is working under negative pressure, so there is no powder leaking at all. Exhaust fan is equipped with silencer as well as isolated installation, the noise is below 75 dB(A).
7. Safety measures: The whole system adopts following measure to 100 % make sure safety during operation:
1) Function interlocked: All the function buttons in the control panel are interlocked (only proper operation steps can run the system) to prevent any mistakable operation to the machine.
2) Explosion proof design: Granulation chamber is equipment with venting. When the pressure inside the chamber is getting higher than the rated one (say 2 bar), the rupture membrane will break to release the pressure.
3) Pressure monitoring: Pressure sensor is equipped to monitor pressure change inside the granulation chamber. When pressure is getting higher (especially when the bag filter is choked) and positive pressure condition is formed, electrical heater and exhaust fan will stop automatically and pressure release valve will open.
FL-200 Fluid Bed Granulator Technical Advantage
FL series fluid bed granulator is a batch type top spray powder granulation/agglomeration processor which has been widely used in pharmaceutical, chemical and foodstuff industry. Raw materil (free-flowing dry powder or small granules ) is loaded in the granulating bowl of which the bottom is made by perforated plate. Clean hot air flows through the perforated plate to completely fluidize the material. Meanwhile, liquid binder is sprayed onto the fluidized material. Fine powder collides with droples and stick together to form granules or agglomerates with good flowability and instant solubility.
Technical Parameters
| Item | Unit | FL-200 Type | |
| Container | Volume | L | 670 |
| Diameter | mm | 1400 | |
| Capacity | Min | kg | 100 |
| Max | kg | 300 | |
| Fan | Capacity | m3/h | 6000 |
| Pressure | mmH2O | 950 | |
| Power | kw | 22 | |
| Steam expenditure | kg/h | 282 | |
| Compressed air ecpenditure | m3/min | 1.1 | |
| Main body weight | kg | 1500 | |
| Steam pressure | Mpa | 0.3-0.6 | |
| Temperature | oC | adjustable at the range from foom temperature to 120oC | |
| Working time | min | decided in accordance with the proplerities of raw materials | |
| Field | % | >99 | |
| Noise | dB(A) | <75dB(A)(when installation, main machine is separated from fan) | |
| Size | m | 2.34x1.7x3.8 | |

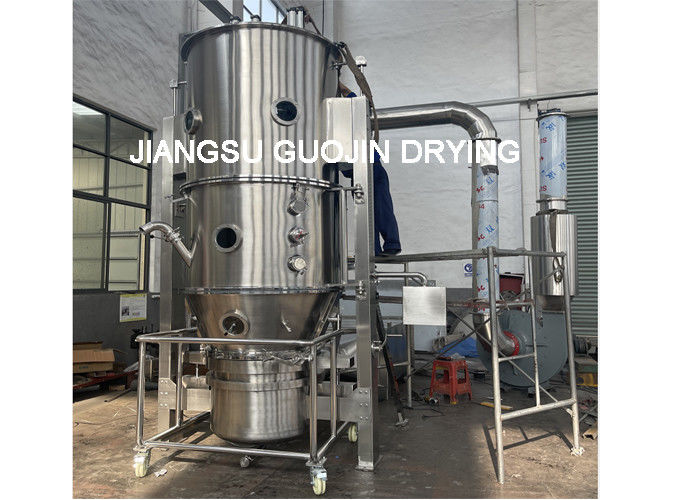

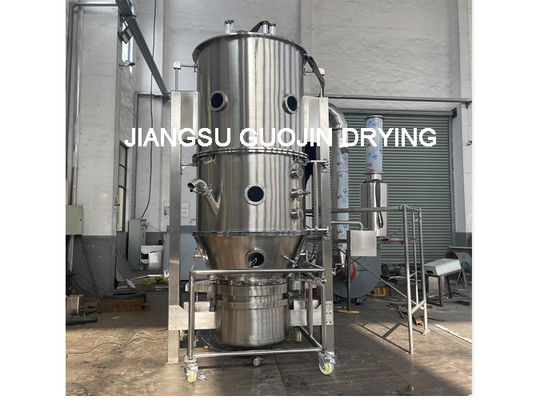

Product Show
electrical, steam, natural gas or other
