Hot Air Centrifugal Egg White / Coffee / Milk Powder Dryer
Product Details:
Place of Origin: | China |
Brand Name: | OEM |
Certification: | CE;ISO |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Standard export Carton |
Delivery Time: | 20-30days |
Payment Terms: | L/C, T/T |
Supply Ability: | 10 sets per month |
Detail Information |
|||
Type: | Spray Drying Equipment | Application: | Medicine Processing, Food Processing |
---|---|---|---|
Condition: | New | Voltage: | Can Be Customed |
Power(W): | 3-75kw | Dimension(L*W*H): | 1.8X0.93X2.2 |
Key Selling Points: | Competitive Price | Warranty: | 1year |
Applicable Industries: | Manufacturing Plant, Food & Beverage Factory | Inlet Temperature (℃): | 140~350 |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training, Field Maintenance And Repair Service | Water Evaporation Capacity(kg/h): | 200~2000 |
Outlet Temperature (℃): | 80~90 | Diameter Of Atomizing Disc (mm): | 180~240 |
Revolution (rpm): | 8000~15500 | Weight: | 2.9-104.9t |
Port: | SHANGHAI | ||
Highlight: | Hot Air Milk Powder Dryer,Coffee Milk Powder Dryer,2000kg/h Milk Powder Dryer |
Product Description

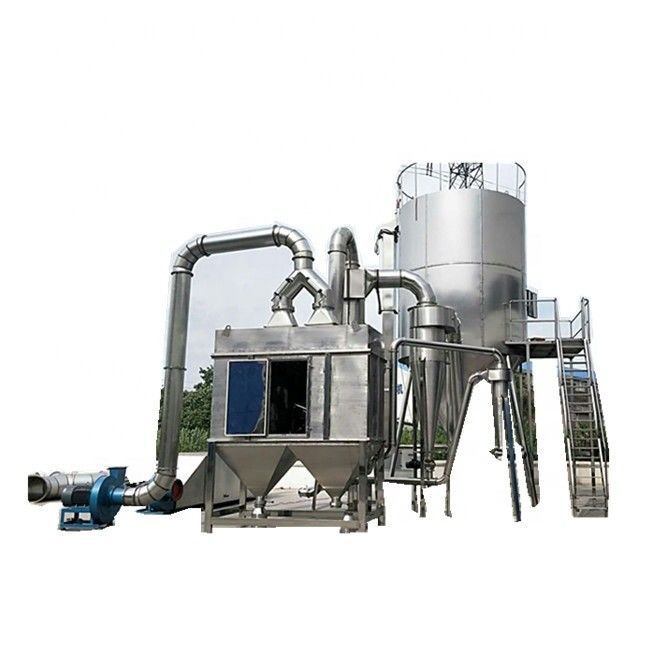

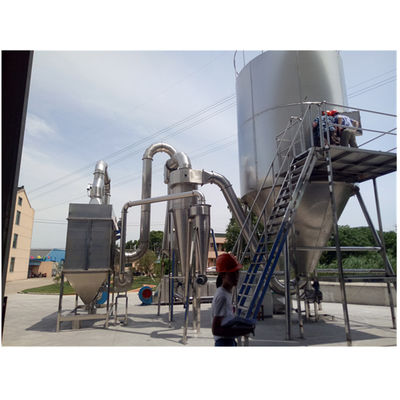

Hot Air Centrifugal Egg White / Coffee / Milk Powder Dryer
Air is turned into hot air through heater and enters into hot air distributor at the top of dry chamber and then enters into dry chamber and rotates in the state of helix. At the same time liquid of raw material is sent to centrifugal atomizer at the top of dry chamber through stepless variable screw pump. In which liquid of raw material atomizes small drops. Air and liquid of raw material flow and contact each other. The moisture vaporizes rapidly. Liquid of raw material is dried into finished product in a short time. The finished product is discharged through the bottom cyclone separator of drier and the wasted air is exhausted through fan.
FEATURES
The drying speed is very quick. When raw material is atomized, the surface area increases greatly. 65~98% of moisture can be vaporized in hot air stream momentary. The dry time to be used is only 5~15 seconds. Especially, it is suitable for drying thermal sensitive raw materials.
The size of finished product is uniform and the flow and solubility are good. The purity and quality of product are good too.
The operation is stable and simple. The regulation and control is very convenient. It is easy to realize automatic operation.
The operation process is simplified and the operation environment is superior and can avoid powder dust during the period of operation.
SCOPE OF APPLICATION
Chemical industry: sodium (potassium) fluoride, alkali dyestuff and pigment, dyestuff intermediate, compound fertilizer, catalyst, amino acid, white black and so on
plastic resin: ABS emulsion liquid, urea formaldehyde resin, phenol formaldehyde resin, formaldehyde resin, PE, PVC and so on
Foodstuff industry:
egg and milk products: rich lipoprotein powdered milk, cocoa powdered milk, baby meal, egg white, vitalize and so on, food and juice of plant, oat, chicken juice, coffee, crystalline tea, condiment and flavor, protein bean, earthnut protein, protein, hydrolysis and so on
sugar: maize paste, maize starch, glucose, pectin, maltose, potassium seriate and so on
Ceramic: aluminum oxide, ceramic tile material, magnesium oxide, pencil stone and so on
NOTICE IN ORDER
You need fully complete the following Requirements Sheet in order to design and manufacture a high quality dryer satisfying all your requirements. Please kindly advise us when make inquiry,
Technical specifications
MODEL |
LPG-5 |
LPG-25 |
LPG-50 |
LPG-100 |
LPG-150 |
LPG-200~2000 |
||||||
Inlet temperature (℃) |
140~350 |
|||||||||||
Outlet temperature (℃) |
80~90 |
|||||||||||
Water evaporation capacity(kg/h) |
5 |
25 |
50 |
100 |
150 |
200~2000 |
||||||
Revolution (rpm) |
25000 |
18000 |
18000 |
18000 |
15500 |
8000~15500 |
||||||
Diameter of atomizing disc (mm) |
50 |
120 |
120 |
120 |
150 |
180~240 |
||||||
Heat source |
Electricity |
Electricity |
Steam+electricity, oil, fuel, gas |
Solved by user |
||||||||
Max. power of electric heater (kw) |
9 |
48 |
72 |
81 |
99 |
/ |
||||||
Overall dimensions (m) |
1.8X0.93X2.2 |
3X3.2X5.1 |
3.7X3.2X5.1 |
4.6X4.2X6 |
5.5X4.5X7 |
1800 |
||||||
Recovery rate of dry powder (%) |
≥95 |
