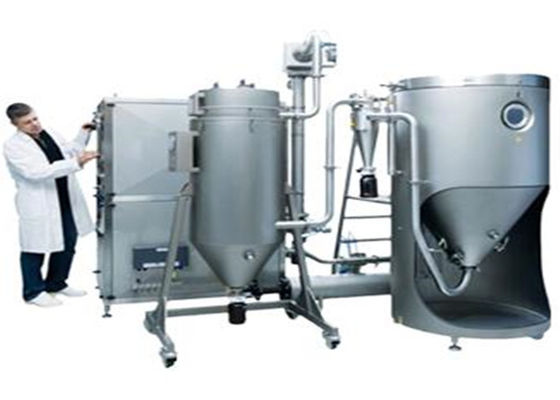

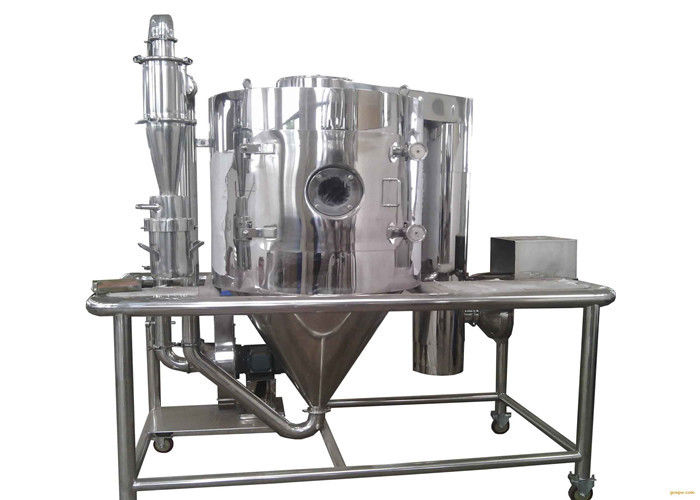

Vertical Stainless Steel Mini Lab Milk Drying Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE;ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Type: | Spray Drying Machine | Voltage & Power:: | As Customers' Requirements |
|---|---|---|---|
| Material: | Stainless Steel | Heating Source: | Electricity Steam, Fueloil And Gas ,oil,coal Or Steam |
| Dried Powder Collecting: | ≥ 95% | Color: | Silver, White, Blue, Etc. |
| Application: | Powder Drying Material | Parts Of Machine: | Atonizerm, Burner, Pressure Pump And So On |
| Highlight: | Lab Milk Drying Machine,Vertical Milk Drying Machine,Lab Milk Powder Dryer |
||
Product Description
Vertical Stainless Steel Mini Lab Milk Drying Machine
Principle:
After the air been filtered and heated the air enters into the air distributor on the top of the dryer. The hot air enters into the drying room in the spiral form and uniformly.
Passing through the high-speed centrifugal sprayer on the top of the tower, the material liquid will rotate and be sprayed into the extremely fine mist liquid beads.
Through the very short time of contacting the heat air, the materials can be dried into the final products. The final products will be discharged continuously from the bottom of the drying tower and from the cyclones. The waste gas will be discharged from blower.
| Item Name | High Speed Centrifugal Spray Dryer, Spray Drying Machine |
| Inlet Temperature | 140-350 ℃, automatically controlled |
| Outlet Temperature | 80-90 ℃ |
| Rotation Speed | 25,000 rpm |
| Heat Supply | electric-steam, fuel oil or gas |
| Dried Powder Collecting | ≥ 95% |
| Color | silver, white, blue, etc. |
| Heating Source | electricity steam, fueloil and gas ,oil,coal or steam |
| Material | stainless steel |
Cases Available for Spray Drying Machine:
Case I: (1). Peristaltic pump feeding; (2). Compressed-air drive; (3). Rotation Speed: 35,000rpm; (4). Spray disc plate: diameter 50mm; (5). Elecreic Power Suply: electric, 9Kw; (6). Spray tray: rotating and electric
Case II: (1). Drying Material: egg liquid; (2). Primary Moisture: 62% to 68%; (3). Final Moisture: 3% to 4%; (4). Temperature: max is 350 degree centigrade; (5). Heating Source: steam and electric-heating compensation; (6). 380-440V, 50Hz
Service commitment:
- Provide clients one-year warranty to make sure the machine work well.
- We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.
- Send every client a preferential quota.
In order to quote you the right drying machine equipment with best price, we would like to get the following information include in your inquiry:
1. What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
2. What is the capacity per hour you need (kg/h)?
3. What is the initial moisture and final moisture of finished products you require to get?
4. What about the maximum heat temperature of raw material?
5. What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
6. Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
7. Provide us your country’s electricity information, such as phases, voltage, HZ.
8. How about dust collect requirements?
9. Other related special requirements.
