15KW Transmission Power Industrial Drying Equipment Hollow Paddle Dryer
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | HPD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | 15KW Transmission Power Industrial Drying Equipment Hollow Paddle Dryer | Application: | Industry Processing, Chemical Processing,Pharmaceutical Processing |
|---|---|---|---|
| Heat Transfer Area: | 35M2 | Effective Volume: | 2.2M3 |
| Material: | Stainless Steel , Carbon Steel | Heating Source: | Thermal Oil Or Steam |
| Rotating Speed: | 5-10RPM | Transmission Power: | 15KW |
| Highlight: | 15KW Industrial Drying Equipment,Hollow Paddle Industrial Drying Equipment,Thermal Oil Hollow Paddle Dryer |
||
Product Description
15KW Transmission Power Industrial Drying Equipment Hollow Paddle Dryer
Paddle dryer is a kind of low-speed agitated dryer with agitated pulp inside the equipment to make the wet materials fully contact with heat carrier and hot surface under the stirring of paddles, so as to achieve the purpose of drying. The structure is generally horizontal, double axis or four axis. The paddle dryer is divided into hot air type and conduction type. The hot air type is through the heat carrier (such as hot air) and the material to be dried contact and drying.
Stucture Introduction
The main structure is a W-shaped shell with a jacket, which is equipped with a pair of hollow low-speed rotating hollow shafts. A number of mixing blades are welded on the shaft. The jacket and the hollow mixing blades are all equipped with heat carriers, and the two heating surfaces heat the materials at the same time. The heat carrier is usually fed from the middle of the dryer and discharged from the other side through the surface of the material layer in the agitated state.
Wedge-shaped hollow blades are densely arranged on the hollow shaft, and the thermal medium flows through the blades through the hollow shaft. The unit effective volume has a large heat transfer area. The temperature of the thermal medium ranges from - 40 ° C to 320 ° C, which can be water vapor or liquid type: such as hot water, heat transfer oil, etc. Indirect conduction heating does not carry air to take away heat. Heat is used to heat materials. The heat loss is only the heat dissipation to the environment through the insulation layer of the reactor body. The heat transfer surface of the wedge-shaped blade has the function of self-cleaning. The relative movement of the material particles and the wedge-shaped surface can wash off the attached materials on the wedge-shaped surface, so that the clean heat transfer surface is kept in motion all the time.
Wedge-shaped hollow blades are densely arranged on the hollow shaft, and the thermal medium flows through the blades through the hollow shaft. The unit effective volume has a large heat transfer area. The temperature of the thermal medium ranges from - 40 ° C to 320 ° C, which can be water vapor or liquid type: such as hot water, heat transfer oil, etc. Indirect conduction heating does not carry air to take away heat. Heat is used to heat materials. The heat loss is only the heat dissipation to the environment through the insulation layer of the reactor body. The heat transfer surface of the wedge-shaped blade has the function of self-cleaning. The relative movement of the material particles and the wedge-shaped surface can wash off the attached materials on the wedge-shaped surface, so that the clean heat transfer surface is kept in motion all the time.
Product Application
• The materials from such as the medicine t food , chemical industry, etc. can be dried.
• Suitable for pulpiness, paste-like mixture or power raw material.
• Temperature sensing material requiring the low temperature to be dried.
• Raw materials that are easy to oxidize or explode and have strong irritative or toxic.
• Demand to retrieve of the organic solvent.
Technical Parameters
| Model | HPD-3 | HPD-9 | HPD-13 | HPD-18 | HPD-29 | HPD-41 | HPD-52 | HPD-68 | HPD-81 | HPD-95 | HPD-110 | HPD-125 | HPD-140 |
| Heat transfer area(m2) | 3 | 9 | 13 | 18 | 29 | 41 | 52 | 68 | 81 | 95 | 110 | 125 | 140 |
| Effective volume(m3) | 0.06 | 0.32 | 0.59 | 1.09 | 1.85 | 2.8 | 3.96 | 5.21 | 6.43 | 8.08 | 9.46 | 10.75 | 12.18 |
| Speed range(rpm) | 5-20 | 5-20 | 5-20 | 5-20 | 5-20 | 5-10 | 5-10 | 5-10 | 5-10 | 1-8 | 1-8 | 1-8 | 1-8 |
| Transmission power(kw) | 2.2 | 4 | 5.5 | 7.5 | 11 | 18.5 | 30 | 37 | 45 | 55 | 75 | 90 | 110 |
| Device width(m) | 306 | 584 | 762 | 940 | 1118 | 1296 | 1474 | 1655 | 1828 | 2032 | 2210 | 2480 | 2610 |
| Overall width(m) | 736 | 841 | 1066 | 1320 | 1474 | 1676 | 1854 | 2134 | 2186 | 2438 | 2668 | 2732 | 2935 |
| Equipment length(m) | 1956 | 2820 | 3048 | 3328 | 4114 | 4724 | 5258 | 5842 | 6020 | 6124 | 6850 | 7500 | 7860 |
| Total length(m) | 2972 | 4876 | 5486 | 5918 | 6808 | 7570 | 8306 | 9296 | 9678 | 9704 | 10300 | 11800 | 12900 |
| Center height(m) | 380 | 450 | 534 | 610 | 762 | 915 | 1066 | 1220 | 1430 | 1560 | 1650 | 1760 | 1856 |
| Total Equipment height(m) | 762 | 838 | 1092 | 1270 | 1524 | 1778 | 2032 | 2362 | 2464 | 2566 | 2668 | 2769 | 2838 |

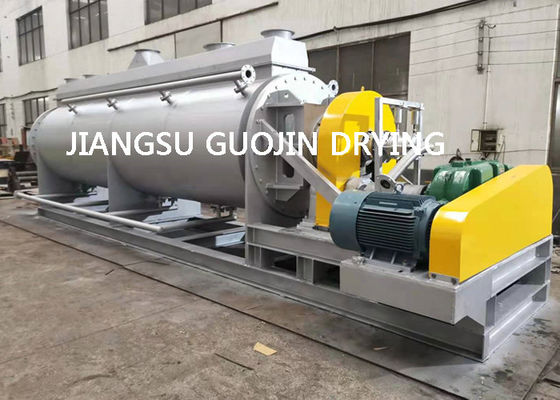

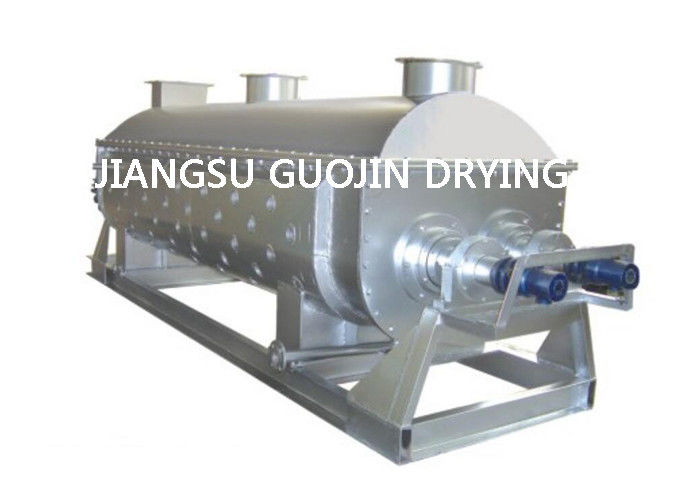

Product Show
