Stainless Steel 304 Transmission Sewage Sludge Paddle Dryer

Stainless Steel 304 Transmission Sewage Sludge Paddle Dryer

Product Details:

Place of Origin: China
Brand Name: Guojin
Certification: ISO
Model Number: HPD

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export Carton
Delivery Time: 20-30days
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information
Item Name: 13M2 Heat Transfer Area Transmission Sewage Sludge Paddle Dryer Application: Industry Processing, Chemical Processing,Pharmaceutical Processing
Heat Transfer Area: 13 M2 Effective Volume: 0.59 M3
Material: Stainless Steel 304 Heating Source: Thermal Oil
Rotating Speed: 5-20RPM Transmission Power: 5.5 KW
Highlight:

Sewage Sludge Paddle Dryer

,

Stainless Steel 304 Sludge Paddle Dryer

,

5.5 KW Vacuum Drying Machine

Product Description

13M2 Heat Transfer Area Transmission Sewage Sludge Paddle Dryer​

1) High thermal efficiency which can reach 95%
2) Heat transfer medium does not contact the product.
3) Gas is not used to convey the product. Off-gas flow is minimal.
4) Precise control of temperature
5) Uniform product quality, through mixing and movement of the product
6) Continuous process on a once-through basis
7) High heat transfer area to process volume ratio - reduced floor space
8) Easy to operate, requires minimal attention
9) Safer than direct drying when processing combustible material
10) Simple durable design for easy and low maintenance
11) Dual counter-rotating shafts with unique intermeshing discs produce intimate mixing, uniform heat transfer, a high heat transfer rate, and a self-cleaning effect.A large heat transfer area to volume ratio is achieved by the use of hollow discs and a jacketed vessel, through which the heating medium flows. The result is a compact machine with less space requirements and lower installation cost.
12) The KJG series Paddle Dryer transports material, regardless of its handling characteristics. Sticky, pasty materials can be transported. Pre-conditioning the feed by mixing with recycled dried product, to make it conveyable, is not required. This results in lower capital, operating, and maintenance cost.


HEAT SOURCES(Temperature at 180ºC - 250ºC)

Heating by Steam

Steam enters the hollow shaft through a rotary joint and is evenly distributed to all paddles. Condensate is removed with each revolution.

Heating by Hot Oil(thermal fluid)

Hot oil(thermal fluid) enters and exits the hollow shaft through a rotary joint. Pressure from the supply pump forces liquid through the hollow paddles.





Product Application

• The materials from such as the medicine t food , chemical industry, etc. can be dried.

• Suitable for pulpiness, paste-like mixture or power raw material.

• Temperature sensing material requiring the low temperature to be dried.

• Raw materials that are easy to oxidize or explode and have strong irritative or toxic.

• Demand to retrieve of the organic solvent.





Technical Parameters

Model HPD-3 HPD-9 HPD-13 HPD-18 HPD-29 HPD-41 HPD-52 HPD-68 HPD-81 HPD-95 HPD-110 HPD-125 HPD-140
Heat transfer area(m2) 3 9 13 18 29 41 52 68 81 95 110 125 140
Effective volume(m3) 0.06 0.32 0.59 1.09 1.85 2.8 3.96 5.21 6.43 8.08 9.46 10.75 12.18
Speed range(rpm) 5-20 5-20 5-20 5-20 5-20 5-10 5-10 5-10 5-10 1-8 1-8 1-8 1-8
Transmission power(kw) 2.2 4 5.5 7.5 11 18.5 30 37 45 55 75 90 110
Device width(m) 306 584 762 940 1118 1296 1474 1655 1828 2032 2210 2480 2610
Overall width(m) 736 841 1066 1320 1474 1676 1854 2134 2186 2438 2668 2732 2935
Equipment length(m) 1956 2820 3048 3328 4114 4724 5258 5842 6020 6124 6850 7500 7860
Total length(m) 2972 4876 5486 5918 6808 7570 8306 9296 9678 9704 10300 11800 12900
Center height(m) 380 450 534 610 762 915 1066 1220 1430 1560 1650 1760 1856
Total Equipment height(m) 762 838 1092 1270 1524 1778 2032 2362 2464 2566 2668 2769 2838





Product Show

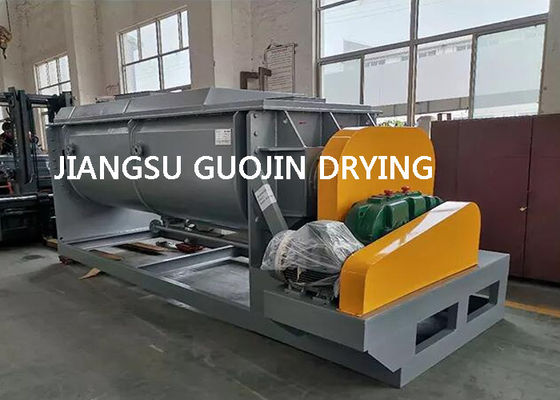

Stainless Steel 304 Transmission Sewage Sludge Paddle Dryer 0


Contact Me

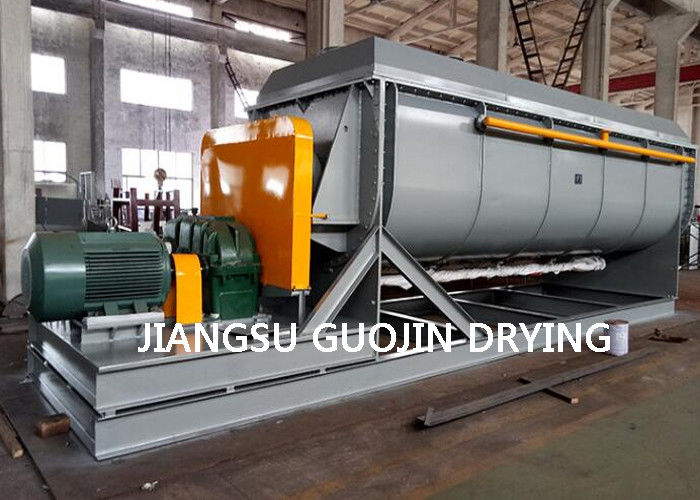

Stainless Steel 304 Transmission Sewage Sludge Paddle Dryer 1
