PLC Multi Function Fluid Bed Granulator 220L 90Kg/H Max Capacity
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | FBG-60 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 sets per month |
|
Detail Information |
|||
| Item Name: | FBG-60 220L 90Kg/h Max Capacity PLC Fluidized Multi-function Fluid Bed Granulator | Application: | Foodstuff Processing, Pharmaceutical Processing |
|---|---|---|---|
| Model: | FBG-60 | Container Volume: | 220 L |
| Diameter: | 1000 Mm | Max Capacity: | 90 KG |
| Min Capacity: | 30 KG | Fan Capacity: | 3000 M3/h |
| Fan Pressure: | 950 MmH2O | Fan Power: | 11 KW |
| Dimension: | 1.85x1.4x3 M | ||
| Highlight: | Multi Function Fluid Bed Granulator,PLC Fluid Bed Granulator,90Kg/H Max Capacity Fluid Bed Coater |
||
Product Description
FBG-60 220L 90Kg/h Max Capacity PLC Fluidized Multi-function Fluid Bed Granulator
Material suspends and forms fluidized state under the action of the undefiled hot air flow (load pressure), its surface is in full contact with the heated air, and the material is evenly heated and reaches ideal state for hot swapping thus to have a high efficiency. Configured with proper spraying system and through further structural improvement, fluid bed becomes a kind of multi-purpose processing facility in combined functions of drying, granulating.
This machine has been equipped a systems of “top spray”, base on a set of universal fluid system and alterable process module, adopt top technological operations.
Granulated or agglomerated particles are more desirable than fine powders for several reasons.
For pharmaceutical products, granulation often is performed to improve flowability.
To improve compressibility for tableting.
To reduce dust for operator and environmental safety.
To improve dispersibility.
To mprove uniformity by combining all ingredients together, or by distributing low-dose actives uniformly by dissolving and spraying a solution of actives.
Technical Parameters
| Item | Unit | FBG-60 | |
| Container | Volume | L | 220 |
| Diameter | mm | 1000 | |
| Capacity | Min | kg | 30 |
| Max | kg | 90 | |
| Fan | Capacity | m3/h | 3000 |
| Pressure | mmH2O | 950 | |
| Power | kw | 11 | |
| Steam expenditure | kg/h | 141 | |
| Compressed air expenditure | m3/min | 1.0 | |
| Main body weight | kg | 1100 | |
| Steam pressure | Mpa | 0.3-0.6 | |
| Temperature | oC | adjustable at the range from room temperature to 120oC | |
| Working time | min | decided in accordance with the proplerties of raw materials | |
| Field | % | >99 | |
| Noise | dB(A) | <75dB(A) (when installation, main machine is separated from fan) | |
| Size | m | 1.85x1.4x3 | |

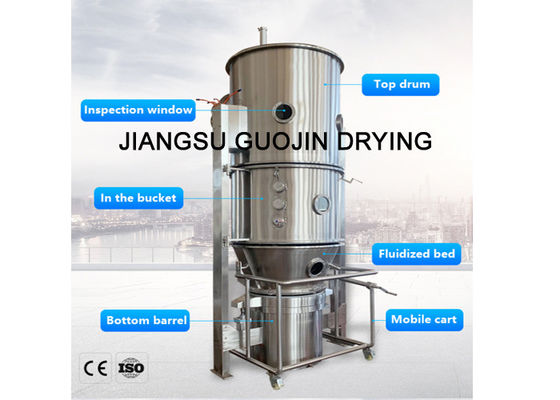

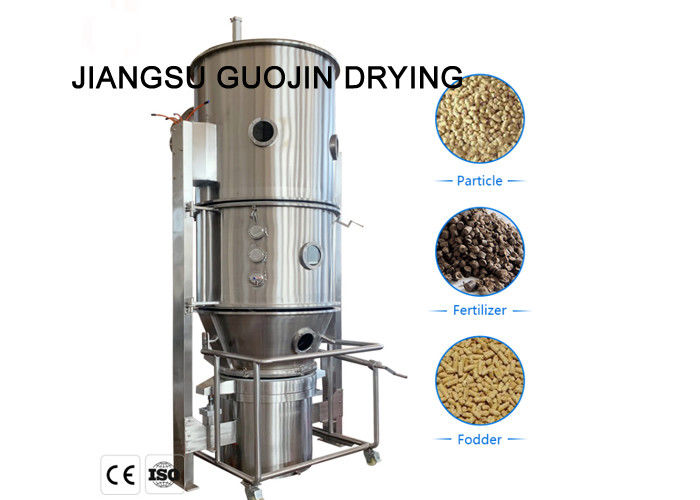

Product Show
electrical, steam, natural gas or other
