7.5kw Granulating Fluid Bed Processor For Foodstuff Industry
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | FBG-30 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 sets per month |
|
Detail Information |
|||
| Item Name: | FBG-30 7.5kw Fluid Bed Granulating Processor For Foodstuff Industry | Application: | Foodstuff Processing |
|---|---|---|---|
| Model: | FBG-30 | Container Volume: | 100L |
| Diameter: | 700 Mm | Max Capacity: | 45KG |
| Min Capacity: | 15KG | Fan Capacity: | 1800 M3/h |
| Fan Pressure: | 480 MmH2O | Fan Power: | 7.5KW |
| Dimension: | 1.6x1.1x2.5M | ||
| Highlight: | 7.5kw Granulating Fluid Bed Processor,Foodstuff Industry Fluid Bed Processor,Condiments Fluid Bed Granulator |
||
Product Description
FBG-30 7.5kw Fluid Bed Granulating Processor For Foodstuff Industry
Through powder granulation, fluidity is improved and dust flying is reduced.
Improve its solubility through powder granulation.
Mixing, granulating and drying can complete granulation in one machine.
Set pressure relief holes, once an explosion occurs, equipment personnel will not be injured.
Granulation in the refrigeration industry: tablet granules, granular granules, capsule granules. Granulation in the food industry: cocoa, coffee, milk powder, granular juice, condiments, etc.
Granulation in other industries:pesticides, feed, fertilizers, pigments, dye chemicals, etc. Drying of powdery or granular wet materials.
Coating: granule, pill protective layer, color preparation, film, enteric coating, etc.
The material powder particles are in an annular fluidized state in the raw material container (fluidized bed). After being preheated and mixed by the heated air after purification, the binder solution is sprayed into atomization, so that several particles are gathered into agglomerates containing the binder.
Due to the continuous drying of the material by the hot air, the water in the agglomerates evaporates. The binder solidifies, and this process is repeated continuously to form ideal and uniform microporous spherical particles.
Technical Parameters
| Item | Unit | FBG-30 | |
| Container | Volume | L | 100 |
| Diameter | mm | 700 | |
| Capacity | Min | kg | 15 |
| Max | kg | 45 | |
| Fan | Capacity | m3/h | 1800 |
| Pressure | mmH2O | 480 | |
| Power | kw | 7.5 | |
| Steam expenditure | kg/h | 70 | |
| Compressed air expenditure | m3/min | 0.9 | |
| Main body weight | kg | 1000 | |
| Steam pressure | Mpa | 0.3-0.6 | |
| Temperature | oC | adjustable at the range from room temperature to 120oC | |
| Working time | min | decided in accordance with the proplerties of raw materials | |
| Field | % | >99 | |
| Noise | dB(A) | <75dB(A) (when installation, main machine is separated from fan) | |
| Size | m | 1.6x1.1x2.5 | |

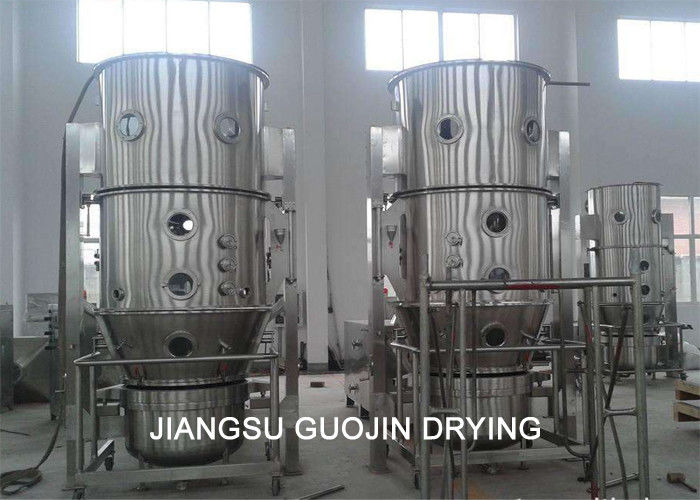

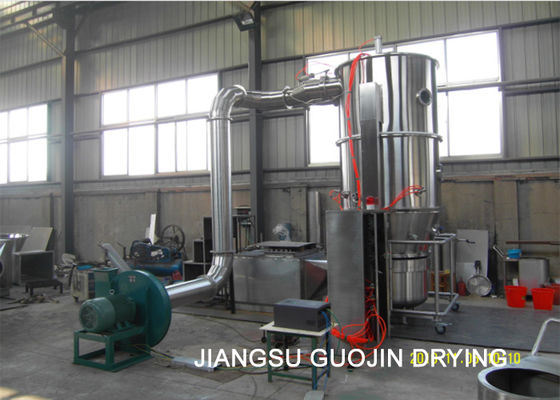

Product Show
electrical, steam, natural gas or other
