Rotary Basket Extruding Pelletizer Equipment 200kg/h
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | REG-250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Rotary Basket Extruding Pelletizer Equipment | Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Model Type: | REG-250 | Diameter Of Granule: | 2-2.2 Mm |
| Motor Power: | 3 Kw | Weight: | 350 Kg |
| Productive Capacity: | 100-200 Kg/h | Overall Dimension: | 700x540x1300 Mm |
| Heating Source: | Electrical | ||
| Highlight: | Basket Extruding Pelletizer Equipment,Rotary Pelletizer Equipment,pelletizer machine 200kg/h |
||
Product Description

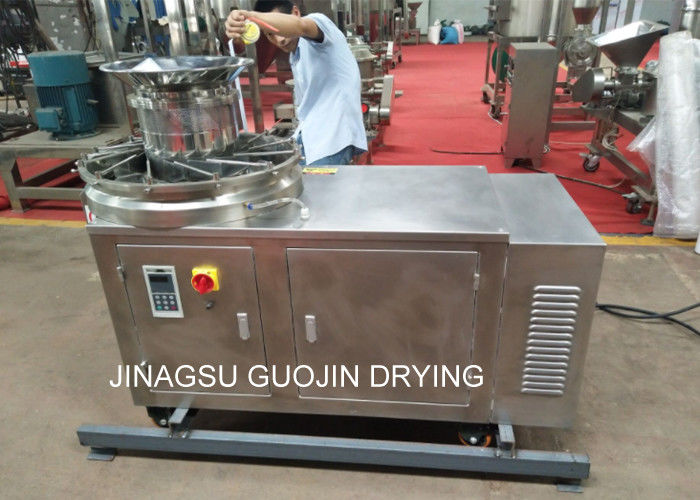

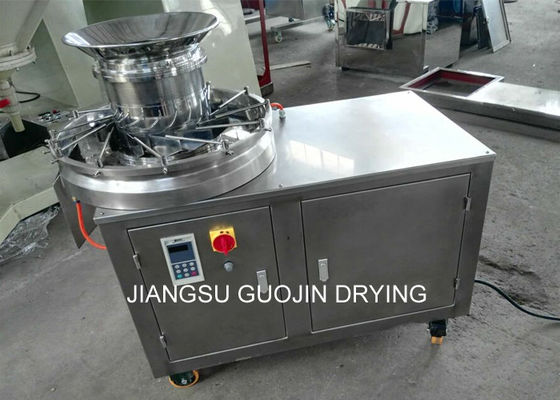

Rotary Basket Extruding Pelletizer Equipment
This machine adopts one pair of rotating grinding blade to grind from damp material into column shaped granule by stainless steel sieve cylinder which is provided for pelletizing in the next process.
The machine can obtain different size granule by changing the stainless steel sieve.
Rotary granulator is mainly used in food, pharmaceutical, chemical, Chinese traditional medicine granule, solid beverage chicken and other with the water viscosity material granulating, classical materials are: solid instant granule particle, lotus root starch granules, chicken ginger poor red jujube poor infusion of particles, such as particles. It has the following characteristics:
1.The particle strength is not high, when the water is dispersed and rapidly dissolves;
2.It is very convenient to change the sieve into different diameter particles;
3.Extruded particles through a sieve mesh evenly.
Technical Parameters
| Size of miling knife(mm) | 250 | 300B | 30D |
| Granule diameter(mm) |
Ø2-2.2 according to custoemer's requrements |
Ø1.2-3 according to custoemer's requrements |
Ø0.5-6 according to custoemer's requrements |
| Overall dimensions(mm) | 700*540*1300 | 800*640*1300 | 1300*800*1200 |
| Motor power(kw) | 3 | 4 | 7.5-6 |
| Weight(kg) | 350 | 400 | 780 |
| Production capacity(kg/h) | 100-200 | 140-400 | 300-600 |
Product Detailed Images
Product Show
electrical, steam, natural gas or other
