65rpm 300kg/h Oscillating Granulator Machine For Instant Granule Drink
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | ORM-C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Oscillating Granulator For Food Instant Granule Drink | Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Model Type: | Model C | Productive Capacity: | 150-300kg/h |
| Motor Power: | 4kw | Roller Revolution: | 65r/min |
| Swing Angle: | 360 | Roller Diameter: | 160mm |
| Weight: | 450kg | Overal Dimension: | 1260x750x1250mm |
| Highlight: | 65rpm Oscillating Granulator Machine,300kg/h Oscillating Granulator Machine,Instant Granule Drink Oscillating Granulator |
||
Product Description
Oscillating Granulator for Food Instant Granule Drink
The oscillating granulator can make particles from a mixture of powders, or from lumpy dry matter into the desired particles. It is suitable for small batch production in pharmaceutical, chemical, food, scientific research units, laboratories, hospitals and small health care products factories
It has a wide range of applications, uniform particles produced, no need for particle screening, thereby increasing production efficiency, reducing production costs and increasing production. Compared with powder, pellets are easy to take, store and transport. The machine is driven by mechanical transmission to swing the cylinder back and forth. The material is extruded into particles from the screen. As long as the screen mesh of different numbers is replaced, the coarse and fine particles are made. The drum does not need to be disassembled, the screen is easy to disassemble and is very light. The cleaning parts are only part of the granulating cavity, and the cleaning is very convenient. The particles made by the system contain less powder and particle size, convenient operation, simple control and long service life, which meet the requirements of GMP specification.
Product Features
1. This Oscillating granulating machine makes use of the rolling motion of rotating barrel, granulates the wet powder materials into granule by sieve, it also can be used to crush agglomerate materials into small granules directly.
2. In chemical medicine field, it can be used for granulating the mixed powder into granule, and compressed into tablet after being dried. It also can be used for granulating the coagulated material that is formed during storage or during chemical processing, In food industry, it can be used to deal with the candy and sugar mixture as well as barley milk products. In other industries, it can be used to granulate
such as porcelain and plastic mixtures into forming granules.
such as porcelain and plastic mixtures into forming granules.
3. It is not suitable for solid, fluid medium, paste or pulverizing.
4. Its mesh number of sieve should be prepared by users, according to the size of granule.
4. Its mesh number of sieve should be prepared by users, according to the size of granule.
Technical Parameters
Product Application
This machine is mainly suitable for pharmaceutical industry, chemical industry and foodstuff industry to make granule with different specifications. After it is dried through backing, then press it to form all kinds of shaped products. It can also be used for dry block raw material that is crushed and coagulated. All parts in this machine are made of stainless steel. Its appearance is beauty. Its cleaning is very convenient. Its operation is very simple. Its energy consumption is very low.
Technical Parameters
| Model | Model B | Model C(heavy type) | ORM160-F-120(Non-standard) |
| Productive capacity(kg/h) | 100-200 | 150-300 | 600-1000 |
| Motor power(kw) | 3 | 4 | 7.5 |
| Roller revolution(r/min) | 65 | 65 | 10-44 |
| Swing angle | 360 | 360 | 360 |
| Roller diameter(mm) | 160 | 160 | 160 |
| Overall dimensions(mm) | 100*680*1250 | 1260*750*1250 | 3100*930*1250 |
| Weight(kg) | 300 | 450 | 2200 |
Product details

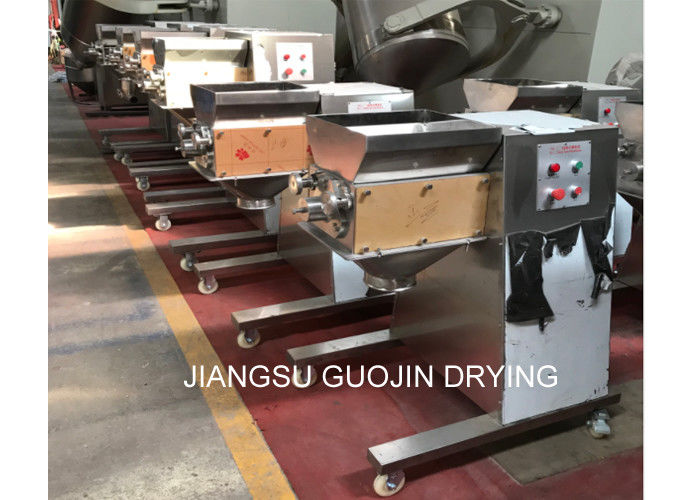

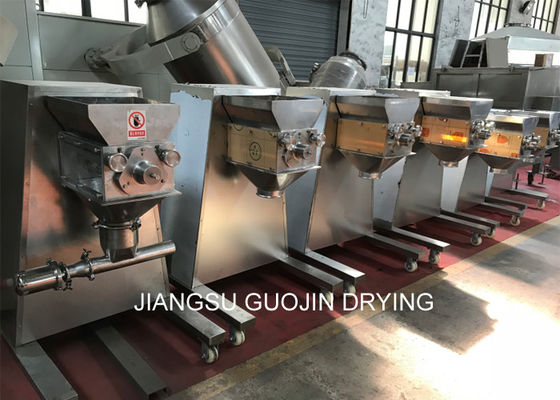

Product Show
