10L Wet Mixing Fertilizer Powder Granulation Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | HSMG-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Wet Mixing Fertilizer Powder Granulation Machine | Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Model Type: | HSMG-10 | Production Capacity: | 3 Kg/batch |
| Granules Size: | 20-80 Mesh | Working Time: | 5-7 Min |
| Container Volume: | 10 L | Mixing Power: | 2.2 Kw |
| Cutting Power: | 1.1 Kw | Mixing Speed: | 30-600 R/min |
| Cutting Speed: | 300-3000 R/min | Consumption Of Compressed Air: | 0.1 Mpa |
| Weight: | 300 Kg | Overall Dimension: | 1250x550x1160 Mm |
| Highlight: | Fertilizer Powder Granulation Machine,10L Powder Granulation Machine,fertilizer powder wet granulation equipment |
||
Product Description
Wet Mixing Fertilizer Powder Granulation Machine
HSMG high speed mixer granulator is a high efficiency equipment that can mix different powder materials and granulate granule in one procedure. It is widely used for pharmaceutical industry, foodstuff industry and chemical industry, etc.
1. The High speed HSMG series wet type mixing granulator adopts a practical horizontal cylinder structure.
2. The driving shaft is euipped with inflatable seal. While washing, the air can be replaces by water.
3. Fluidized granulating processed is used and the final granules are quite round with high fluidity.
4. Compared with traditional technique, this type of machine can reduce 25% of adhesive and also shorten the drying time.
5. For each batch of material, with 2 minutes dry mixing and 1-4 minutes granulating, the efficiency is 4-5 times higher than that of traditional technique.
6. Dry mixing, wet mixing and granulating are finished inside the same sealed container, which is in conformity with the requirement of GMP.
Product Working Principle
The blending and granulating procedures and completed in the same vessel of the granulator. Powdery materials in the stationary conic vessel remain in a semi-flowing and rolling state owing to the agitation by a blending paddle, and are fully mixed. After pouring in adhesives ,the powdery materials gradually change into fine, damp granules turn moist and their shapes begin paddle and the inside wall of vessel, powdery materials turn into loose, soft materials. Through the action of granule shaping paddle, the soft materials gradually change into fine, damp granules with the same size.
Technical Parameters
| Model | 7/2.5 | 10 | 50 | 100 | 150 | 200 | 250 | 300 | 400 | 600 |
| Productive capacity(kg/batch) | 0.3-1 | 3 | 15 | 35 | 50 | 60 | 80 | 100 | 135 | 200 |
| Granules size(mesh) | 20-80 | |||||||||
| Working time(min) | 5-7 | |||||||||
| Container volume(L) | 7/2.2 | 10 | 50 | 100 | 150 | 200 | 250 | 300 | 400 | 600 |
| Mixing power(kw) | 0.75 | 2.2 | 4/5.5 | 6.5/8 | 6.5/8 | 11/14 | 11/14 | 13/16 | 18.5/22 | 22/28 |
| Cutting power(kw) | 0.75 | 1.1 | 1.3/1.8 | 2.4/3 | 2.4/3 | 4.5/5.5 | 4.5/5.5 | 4.5/5.5 | 6.5/8 | 9/11 |
| Mixing speed(r/min) | 30-1000 | 30-600 | 200/400 | 200/400 | 180/270 | 180/270 | 180/270 | 140/220 | 106/155 | 80/120 |
| Cutting speed(r/min) | 300-3000 | 1500/3000 | ||||||||
| Pressure of compressed air(Mpa) | 0.3-0.6 | |||||||||
| Consumption of compressed air(M3/min) | No | 0.1 | 0.11 | 0.13 | 0.2 | 0.25 | 0.25 | 0.3 | 0.4 | 0.4 |
| Weight(kg) | 150 | 300 | 400 | 800 | 900 | 1200 | 1500 | 1550 | 1650 | 1800 |
| Overall dimension(mm) |
800*450 *900 |
1250*550 *1160 |
1730*750 *1610 |
1950*750 *1810 |
1950*750 *1810 |
2210*880 *2000 |
2210*880 *2000 |
2310*1050 *2000 |
2485*1050 *2050 |
2585*1400 *2100 |
Chart of overall dimensions

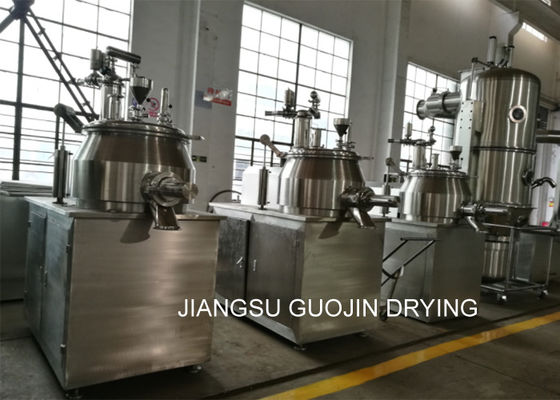

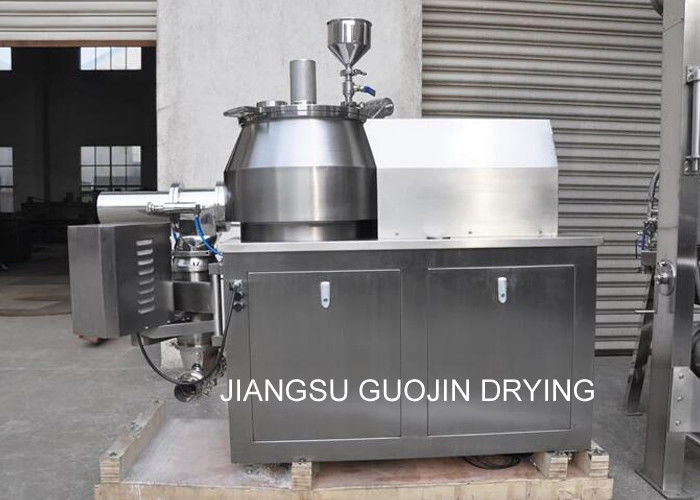

Product Show
