15 kg/batch Roller Compactor Dry Granulation Machine For Superdry Granules
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | DRG-15 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Testing Roller Compactor Superdry Granules Dry Granulation Machine | Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Model Type: | DRG-15 | Production Capacity: | 15 Kg/batch |
| Feeding Motor Power: | 0.55 Kw | Extruding Motor Power: | 0.75 Kw |
| Granulating Motor Power: | 0.37 Kw | Oil Pump Motor Power: | 0.55 Kw |
| Chilled Water Power: | 2.2 Kw | Weight: | 700 Kg |
| Overall Dimension: | 800x950x1200 Mm | ||
| Highlight: | 15 kg/batch Dry Granulation Machine,Superdry Granules Dry Granulation Machine,15 kg/batch roller compactor granulator |
||
Product Description
Testing Roller Compactor Superdry Granules Dry Granulation Machine
During granulation, the dispensed and mixed dry powder materials are fed into the upper hopper through the special feeder (pneumatic or mechanical) and conveyed to the pressure chamber through the spiral conveyor. The two high pressure extrusion wheels will press the materials into slices of high pressure density, which will be cut into small pieces by the cutting system and made into granules of desired sizes by the two-stage granule sizing system, so that the granulating process is completed.
Roller Extruding System
Mill System
According to the requirements of grain collection, the whole grain net with different apertures can be selected, and the gap between the whole grain wheel and the whole grain net can be adjusted. According to the property of the material, spiral or hob grading wheels can be selected. The whole mesh can also be equipped with woven mesh or punched mesh plate.
Discharging System
An aggregate port and a discharge port are arranged. The aggregate port collects a small amount of uncompressed raw materials in the triangle area. The discharge port is equipped with a vacuum discharge assembly with a respirator to facilitate vacuum delivery to the screener.
Product Features
(1)Vertical feeding instead of conventional horizontal feeding.
(2)Screw feeder feeding the raw material into rollers.
(3)Roller are cantilever installed, which is easy for dissemble and clean.
(4)Vertical layout of two rollers, could avoid raw material dropping because of gravity.
(5)Two level of sifting system could increases granulation rate
(6)The granulator works in closed operation, which avoids dust pollution.
(7)PLC and touch screen as an optional choice
Technical Parameters
| Model | DRG-5 | DRG-15 | DRG-50 | DRG-100 | DRG-200 |
| Production capacity(kg/batch) | 5 | 15 | 50 | 100 | 200 |
| Feeding motor power(kw) | 0.37 | 0.55 | 0.75 | 1.5 | 4 |
| Extruding motor power(kw) | 0.55 | 0.75 | 1.5 | 2.2 | 5.5 |
| Granulating motor power(kw) | 0.37 | 0.37 | 0.55 | 0.55 | 1.5 |
| Oil pump motor power(kw) | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 |
| Chilled water power(kw) | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 |
| Weight of main machine(kg) | 500 | 700 | 900 | 1100 | 2000 |
| Overall dimensions(LxWxH)(mm) | 600*750*900 | 800*950*1200 | 1100*1350*1650 | 1200*1350*1800 | 1210*1530*1950 |

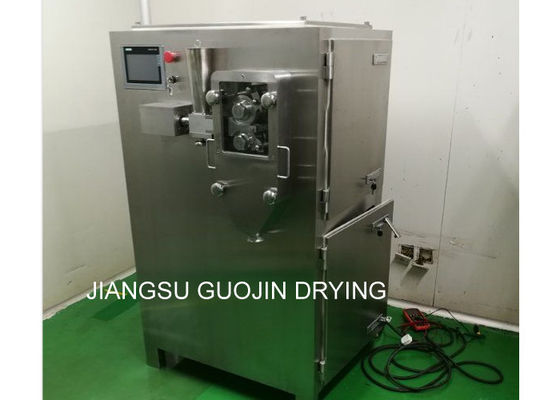

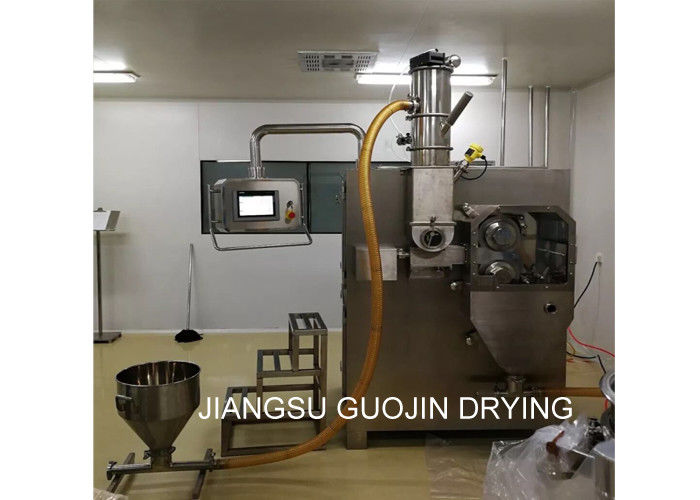

Product Show
