Yeast Barm Leaven Roller Compactor Granulator
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | DRG-15 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Yeast / Barm / Leaven Dry Granulator & Roller Compactor | Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Model Type: | DRG-15 | Production Capacity: | 15kg/batch |
| Feeding Motor Power: | 0.55kw | Extruding Motor Power: | 0.75kw |
| Granulating Motor Power: | 0.37kw | Oil Pump Motor Power: | 0.55kw |
| Chilled Water Power: | 2.2kw | Weight: | 700kg |
| Overall Dimension: | 800x950x1200mm | ||
| Highlight: | Leaven Roller Compactor Granulator,Barm Roller Compactor Granulator,Yeast Dry Granulator |
||
Product Description
Yeast / Barm / Leaven Dry Granulator & Roller Compactor
The machine uses dry granulation to directly form the powder into granular products without additives and intermediates. After granulation, the particle size is uniform, the bulk density is high, the fluidity is good, and it is not easy to form layers, which not only reduces the waste of powder, but also prevents environmental pollution. Easy to store and transport, control solubility porosity and specific surface area.
Roller Extruding System
Mill System
According to the requirements of grain collection, the whole grain net with different apertures can be selected, and the gap between the whole grain wheel and the whole grain net can be adjusted. According to the property of the material, spiral or hob grading wheels can be selected. The whole mesh can also be equipped with woven mesh or punched mesh plate.
Discharging System
An aggregate port and a discharge port are arranged. The aggregate port collects a small amount of uncompressed raw materials in the triangle area. The discharge port is equipped with a vacuum discharge assembly with a respirator to facilitate vacuum delivery to the screener.
Product Features
(1)Vertical feeding instead of conventional horizontal feeding.
(2)Screw feeder feeding the raw material into rollers.
(3)Roller are cantilever installed, which is easy for dissemble and clean.
(4)Vertical layout of two rollers, could avoid raw material dropping because of gravity.
(5)Two level of sifting system could increases granulation rate
(6)The granulator works in closed operation, which avoids dust pollution.
(7)PLC and touch screen as an optional choice
Technical Parameters
| Model | DRG-5 | DRG-15 | DRG-50 | DRG-100 | DRG-200 |
| Production capacity(kg/batch) | 5 | 15 | 50 | 100 | 200 |
| Feeding motor power(kw) | 0.37 | 0.55 | 0.75 | 1.5 | 4 |
| Extruding motor power(kw) | 0.55 | 0.75 | 1.5 | 2.2 | 5.5 |
| Granulating motor power(kw) | 0.37 | 0.37 | 0.55 | 0.55 | 1.5 |
| Oil pump motor power(kw) | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 |
| Chilled water power(kw) | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 |
| Weight of main machine(kg) | 500 | 700 | 900 | 1100 | 2000 |
| Overall dimensions(LxWxH)(mm) | 600*750*900 | 800*950*1200 | 1100*1350*1650 | 1200*1350*1800 | 1210*1530*1950 |

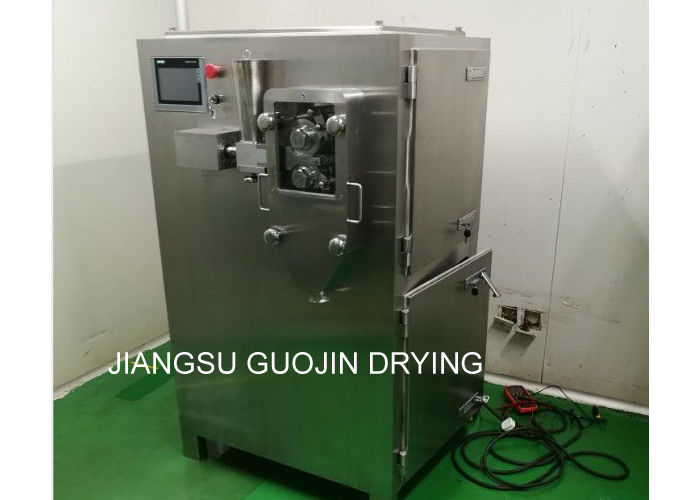

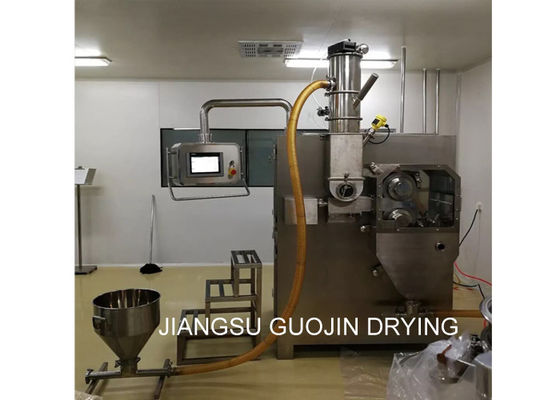

Product Show
