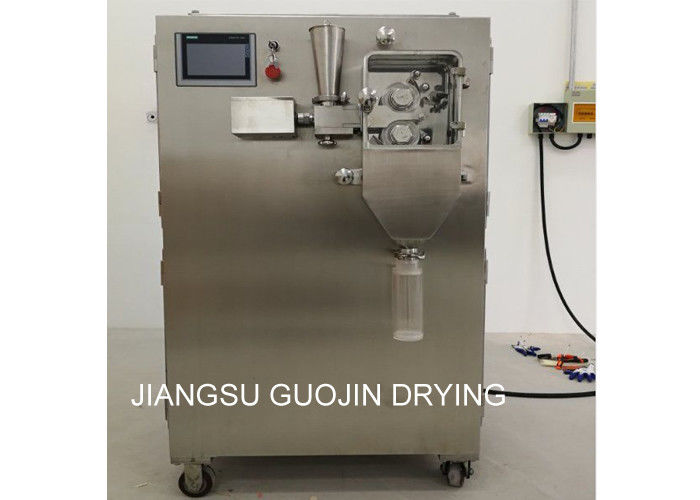

Dry Powder Extrusion Granulator With Horizontal Feeding Structure
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | DRG-5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Dry Powder Extrusion Granulator Roller Compactor Granulator | Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Model Type: | DRG-5 | Production Capacity: | 5 Kg/batch |
| Feeding Motor Power: | 0.37 Kw | Extruding Motor Power: | 0.55 Kw |
| Granulating Motor Power: | 0.37 Kw | Oil Pump Motor Power: | 0.55 Kw |
| Chilled Water Power: | 2.2 Kw | Weight: | 500 Kg |
| Overall Dimension: | 600x750x900 Mm | ||
| Highlight: | Dry Powder Extrusion Granulator,Horizontal Feeding Extrusion Granulator,Dry Powder Roller Compactor Granulator |
||
Product Description
Dry Powder Extrusion Granulator Roller Compactor Granulator
The machine uses dry granulation to directly form the powder into granular products without additives and intermediates. After granulation, the particle size is uniform, the bulk density is high, the fluidity is good, and it is not easy to form layers, which not only reduces the waste of powder, but also prevents environmental pollution. Easy to store and transport, control solubility porosity and specific surface area.
Roller Extruding System
Mill System
According to the requirements of grain collection, the whole grain net with different apertures can be selected, and the gap between the whole grain wheel and the whole grain net can be adjusted. According to the property of the material, spiral or hob grading wheels can be selected. The whole mesh can also be equipped with woven mesh or punched mesh plate.
Discharging System
An aggregate port and a discharge port are arranged. The aggregate port collects a small amount of uncompressed raw materials in the triangle area. The discharge port is equipped with a vacuum discharge assembly with a respirator to facilitate vacuum delivery to the screener.
Product Features
The whole machine is designed into two major parts such as machine body inside part and the work part outside the operation panel. All driving parts and auxiliary facilities are designed inside the machine. The work part that contact material is set outside the operation panel. The middle part is isolated by multiple sealing. The work part works under a fully closed status, and al parts that contact materials are convenient to assemble, disassemble and clean, so as to effectively avoid dust leakage, lower pollution possibilities and reduce cleaning area, fully meeting GMP requirements for medicine production.
3.1. functions in one unit, These are compression, crushing and milling.
3.2. Simplified process to obtain highly stable granules. No water or other liquid is added and no need drying, so the loss of active ingredients due to decomposition can be eliminated.
3.3. Pressure rollers with a water cooling system;
3.4. Overall modular design, compact structure, better space utilization;
3.5. The power area is separated from the work area to prevent cross contamination;
3.6. Horizontal feeding structure, exposed installation of extrusion system, easy to clean and maintain;
3.7. Meet GMP requirements
Technical Parameters
| Model | DRG-5 | DRG-15 | DRG-50 | DRG-100 | DRG-200 |
| Production capacity(kg/batch) | 5 | 15 | 50 | 100 | 200 |
| Feeding motor power(kw) | 0.37 | 0.55 | 0.75 | 1.5 | 4 |
| Extruding motor power(kw) | 0.55 | 0.75 | 1.5 | 2.2 | 5.5 |
| Granulating motor power(kw) | 0.37 | 0.37 | 0.55 | 0.55 | 1.5 |
| Oil pump motor power(kw) | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 |
| Chilled water power(kw) | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 |
| Weight of main machine(kg) | 500 | 700 | 900 | 1100 | 2000 |
| Overall dimensions(LxWxH)(mm) | 600*750*900 | 800*950*1200 | 1100*1350*1650 | 1200*1350*1800 | 1210*1530*1950 |

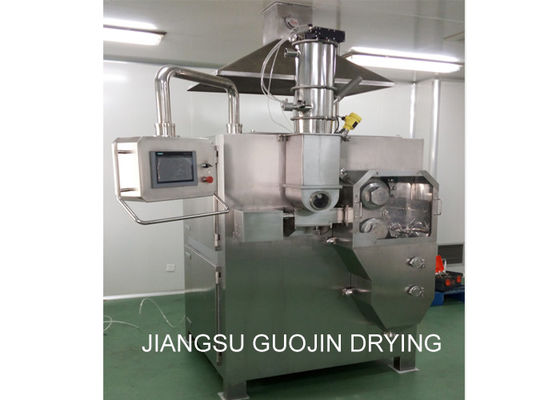

Product Show
