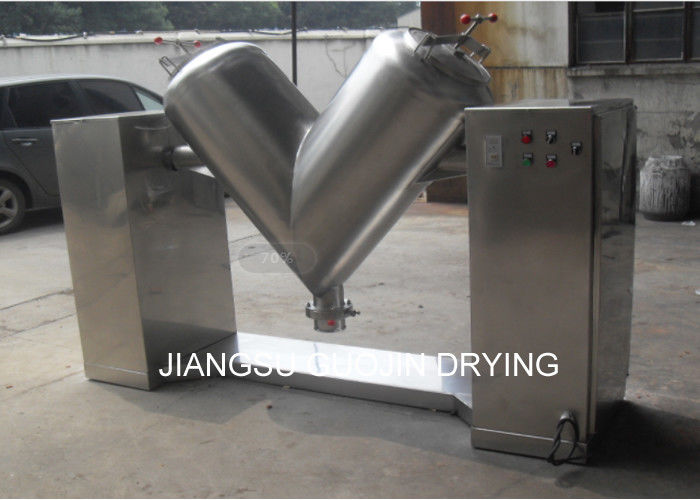

Industrial Powder 200kg/Batch Cone Blender
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | VTM-0.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Industrial Powder 200kg/Batch Cone Blender | Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Model Type: | VTM-0.5 | Production Capacity: | 200kg/batch |
| Model Of Vacuum Pump: | W2 | Time Of Raw Material Fed In: | 4-6min |
| Mixing Time: | 6-10min | Total Volume: | 0.5M3 |
| Stirring Speed: | 12r/min | Motor Power: | 2.2kw |
| Rotating Height: | 2400mm | Weight: | 550kg |
| Highlight: | mixing equipment,blending machine |
||
Product Description
Industrial Powder 200kg/Batch Cone Blender
This machine is designed for mixing two or more dry powder and granule raw materials from pharmaceutical industry, chemical industry, foodstuff industry and so on. The structure of this machine in unique. The mixing efficiency is high and no dead corner. It is made of stainless steel. The inner and outer wall is processed through polishing. Nice appearance. Mixture uniform. The scope of application is wide. The forced stirrer can also be equipped, according to request of client, to meet the requirements of raw materials that contain pretty fine powder, cake and certain moisture as request.
1. Connect the power first, setting the required mixing time, then turn on the switch, the machine begin running.
2. After the mixing, if you found that the position of discharging port is not the best position, you should turn off the power first, and adjust the position of discharging port.
3. Before you use the machine, you should check the appliance, if it is normal; and check the covers of mixing barrels, if the covers are tightly closed.
4. User should clean the machine after the finish of work, especially the barrels, prevent the residual materials.
5. Note that the reducer should be added enough lubricating oil(generally use the 30 # machine oil), and the transmission should be added grease lubricant.
6. Users should maintain the machine once each half of year, change the lubricating oil of reducer, check if the appliance is aging, the appliance should be replaced if it is aging.
7. After you have been using the machine for one year or more, you should make a big maintenance, check the gab between each parts, and appropriately adjust them, so that the machine can keep in good condition.
Technical Parameters
| Model | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 5.0 |
| Productive capacity(kg/batch) | 72 | 120 | 200 | 400 | 1600 | 800 | 1000 | 1200 | 1600 | 2000 |
| Model of vacuum pump | W2 | W2 | W2 | W3 | W3 | W3 | W3 | W4 | W4 | W4 |
| Time of raw material fed in(min) | 3-5 | 3-5 | 4-6 | 6-9 | 6-10 | 8-13 | 8-15 | 8-12 | 10-15 | 15-20 |
| Mixing time(min) | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 8-12 | 8-12 | 8-12 |
| Total volume(M3) | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 5.0 |
| Stirring speed(r/min) | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 10 | 10 | 10 |
| Motor power(kw) | 1.1 | 1.1 | 2.2 | 4 | 4 | 5 | 7.5 | 7.5 | 11 | 15 |
| Rotating height(mm) | 1580 | 1760 | 2400 | 2840 | 3010 | 3240 | 3680 | 3700 | 4350 | 4800 |
| Weight(kg) | 280 | 320 | 550 | 950 | 1020 | 1600 | 2040 | 2300 | 2800 | 3250 |
Technological Process

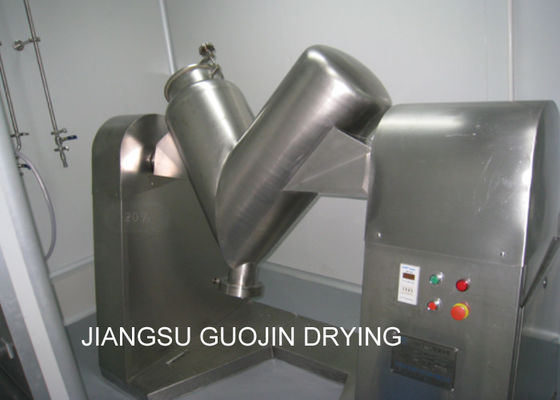

Production Show
electrical, steam, natural gas or other
