GMP 120mm Interval Vacuum Tray Drying Oven For Honey

Product Description

Foodstuff VTD-S-10 Vacuum Tray Drying Oven For Honey

1. vacuum dryer/ vacuum dryer price/ vacuum tray dryer price

2. Drying in vacuum condition

3. Suitable for drying thermal sensitive materials

4. Can recycle solvent

Product Description of Foodstuff VTD-S-10 Vacuum Tray Drying Oven For Honey

In the drying chamber, material will be dried under vacuum condition. Under the vacuum condition, the boiling point of material solution will reduce. It will increase impetus for heat and mass exchange. Therefore for certain heat exchange amount, it can save heat exchange area of evaporator

Material is under static condition during operation of the equipment, which is benefit for keeping initial status of material. Intermittent operation can adjust process conditions at any time.

On the top of Pharmaceutical vacuum dryer, heating system is arranged to tackle the problem of return of condensed water, in addition, air suction is arranged at the side to improve drying efficiency.

This equipment can be used for low temperature drying and organic solvent recovery. Heat source can be steam, hot water and thermal oil. It is specially suitable for drying materials that is easily oxygenated during drying​



Product Features of Foodstuff VTD-S-10 Vacuum Tray Drying Oven For Honey

1. It can get higher drying capacity at lower temperature and the heat energy can be used fully.

2. It is suitable for materials such as heat sensitive and easy oxidizable material.

3. It can dry raw materials that contain solvent and which needs to be recovered.

4. Before drying, it can carry out disinfectant treatment. During the period of drying, any impurity can not enter it.

5. The dryer belongs to static drying, materials will not be damaged.

6. The machine is a kind of batch type operation and can adjust technical process at any time.

7. The inner top is designed arch structure, it can effectively avoid the condensed water drop back.

8. Vacuumize from 4 points to one point, can guarantee uniform drying.



Technical Advantages of Foodstuff VTD-S-10 Vacuum Tray Drying Oven For Honey

1) Flexibility in heat medium: Heat mediums can be steam, hot water or thermal oil to obtain different temperature according to special drying requirements.

2) Uniform drying: Four exhaust vents are equipped to make sure the evaporated moisture can be sucked out immediately.

3) Energy saving: The boiling point of moisture is much lower under vacuum. Low drying temperature can reach high evaporation rate.

4) GMP standard: Drying chamber is fully welded without dead corners to meet GMP standard.





Technical Parameters of Foodstuff VTD-S-10 Vacuum Tray Drying Oven For Honey

Name	VTD-R-600	VTD-R-800	VTD-R-1000	VTD-R-1400	VTD-S-10	VTD-S-15	VTD-S-20
Inner sze of drying chamber(mm)	Ø600x976	Ø800x1320	Ø1000x1530	Ø1400x2080	1500x1040x1200	1500x1400x1200	1500x1800x1200
Outer size of drying chamber(mm)	750x950x1050	950x1210x1350	1150x1410x1600	1550x1900x2150	1676x1700x1564	1676x2060x1564	1676x2500x1564
Layers of baking support	4	4	5	8	5	8	12
Internal(mm)	85	100	100	100	120	120	120
Size of baking tray(mm)	310x600x45	460x640x45	460x640x45	460x640x45	460x640x45	460x640x45	460x640x45
Quantity of baking tray	4	4	10	32	20	32	48
Working prssure inside the ppe of baking support(Mpa)	<0.784	<0.784	<0.784	<0.784	<0.784	<0.784	<0.784
Operation temperature of baking support(oC)	35-150	35-150	35-150	35-150	35-150	35-150	35-150
Degree of vacuum inside the chamber when operation in idle(Mpa)	-0.1	-0.1	-0.1	-0.1	-0.1	-0.1	-0.1
Under the condition of -0.1 Mpa and 110oC, evaporation rate of wate(kg/m2.hr)	7.2	7.2	7.2	7.2	7.2	7.2	7.2
When condensor is  used, Model, and power of vacuum pump(kw)	2X-15A 2KW	2X-30A 3KW	2X-30A 3KW	2X-70A 5.5KW	2X-70A 5.5KW	2X-70A 5.5KW	2X-90A 7.5KW
When condensor is not used, Model, and power of vacuum pump(kw)	SK-0.5 1.5KW	SK-1 2.2KW	SK-1 2.2KW	SK-1 5.5KW	SK-2 4KW	SK-2 5.5KW	SK-2 5.5KW
Weight of drying chamber(kg)	250	600	800	1400	1400	2100	3200



Working Principle of Foodstuff VTD-S-10 Vacuum Tray Drying Oven For Honey

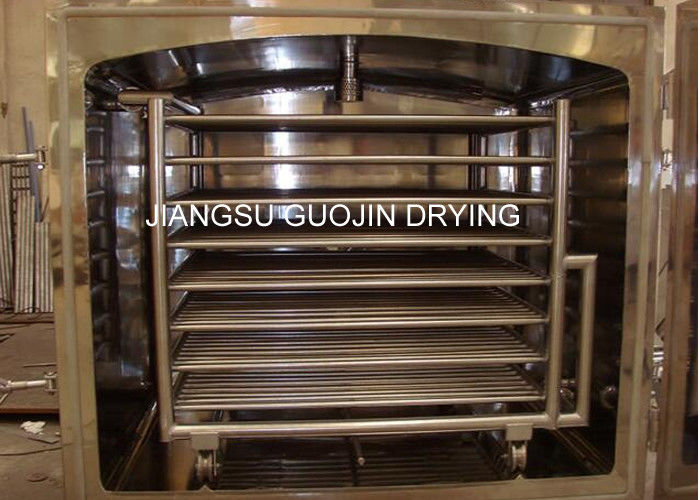

VTD series vacuum shelf tray dryer is a most often used static chamber dryer under vacuum condition. Inside the drying chamber, trays loaded with wet material are placed on top of each other in a drying shelf.

In drying pocess, heat medium, such as steam, hot water or thermal oil, is connected to the drying shelf which transfers heat to wet material. Under vacuum condition, boiling point of moisture is much lower. So the moisture can be evaporated under low temperature. The vacuum pump constantly sucks out the evaporated moisture to speed the drying process. Vacuum pump, tubular condenser and buffer tank are equipped to recover the evaporated moisture.





Product Application of Foodstuff VTD-S-10 Vacuum Tray Drying Oven For Honey

It is Suitable for drying heat sensitive raw materials of pharmaceutical industry, chemical industry, foodstuff industry, electronic industry, Chinese herb medicine industry, etc.

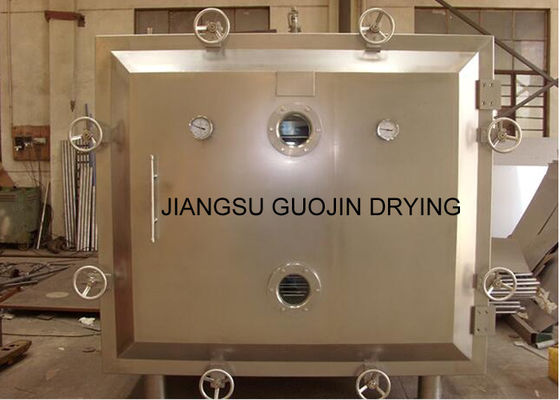

Product Show of Foodstuff VTD-S-10 Vacuum Tray Drying Oven For Hone
