PLC Control D50mm Disc SS Centrifugal Spray Dryer
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | CE |
| Model Number: | RWSD-5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | CE Approved 50mm Spray Disc Diameter High Speed Centrifugal Spray Dryer | Model Type: | RWSD-5 |
|---|---|---|---|
| Application: | Medicine Processing | Certification: | CE |
| Dry Powder Recovery: | >95% | Material: | Stainless Steel |
| Rotary Speed: | 25000 | Control: | PLC Touch Screen |
| Heating Source: | Electricity | Water Evaporation: | 5kg/h |
| Highlight: | D50mm Disc Centrifugal Spray Dryer,PLC Control Centrifugal Spray Dryer,D50mm Disc Spray Drying Machine |
||
Product Description
CE Approved 50mm Spray Disc Diameter High Speed Centrifugal Spray Dryer
1, High speed centrifugal atomizer spray dryer / food spray dryer / industrial spary dryer
2, Liquid or slurry drying processor
3, Easy operation and control
4, Stainless steel
Application
High Speed Centrifugal Spray Dryer is widely used in foodstuff, pharmaceutical and chemical industry, such as egg powder, amino acid product, protein, blood, food flavor, food ingredients, pectin, carrageenan, spirulina, herbal extraction, pigment, cocoa, mushroom, PAC, malt dextrin, collagen, juice, yeast, Coffee, Creamer, coconut, milk, gelatin, gum and acacia etc.
Spray Dryer Features
1. High speed of drying. After the spraying of the material liquid, the surface area of the material will be increased greatly. In the hot air flow, 95%-98% of water can be evaporated at the moment. The time of completing the drying needs only several seconds. It is especially suitable for drying the heat sensitive materials.
2. The final products own the good uniformity, mobility, and dissolving capacity. And the final products are high in purity and good in quality.
3. The production procedure is simple and the operational control easy. The liquid with the moisture contents 40-60%(for special materials, the contents may reach 90%.) can be dried into powder or particle products at a time. After the drying, there is no need for smashing and sorting, so as to reduce the operation procedures in the production and chance the product purity. The product particle diam enters, looseness and water contents can be adjusted through changing the operation codition in a certain scope, it is very convenient to carry out the control and management.
Technical Parameter
| Model | 5 | 25 | 50 | 100 | 150 | 200-10000 |
| Inlet temperature | 140-350 automatic control | |||||
| Outlet temperature | ~80-90 | |||||
| Max. moisture evaporation | 5 | 25 | 50 | 100 | 150 | 200-10000 |
| Centrifugal spray hear drive | Compressed air drive | Machanical drive | ||||
| Speed | 25000 | 18000 | 18000 | 18000 | 15000 | 8000-15000 |
| Spray disc diameter | 50 | 100 | 120 | 140 | 150 | 180-340 |
| Heat source | electric | electricity+steam | Electricity+steam,fuel,gas | Resolved by the user | ||
| Max. power of electric heating | 9 | 36 | 63 | 81 | 99 | |
| Outline dimension | 1.8x0.93x2.2 | 3x2.7x4.26 | 3.7x3.2x5.1 | 4.6x4.2x6 | 5.5x4.5x7 | Determined according to specific circumstances |
| Dry powder recovery | >95 | >95 | >95 | >95 | >95 | >95 |
Why choose the centrifugal spray dryer to drying ?
The product has good uniformity, fluidity and solubility, high purity and good quality.
Simplified production process, easy operation and control. For 40-60% moisture content (special materials up to 90%) liquid can be dried into powder products, control and management are very convenient.
In order to quota you the right rotary atomizer spray dryer price / rotary atomizer spray dryer / lab rotary atomizer type spray dryer price, we would like to get the following information include in your inquiry:
- -What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
- -What is the capacity per hour you need (kg/h)?
- -What is the initial moisture and final moisture of finished products you require to get?
- -What about the maximum heat temperature of raw material?
- -What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
- -Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
- -Provide us your country’s electricity information, such as phases, voltage, HZ?
- -How about dust collect requirements?
- -Other special requirements?

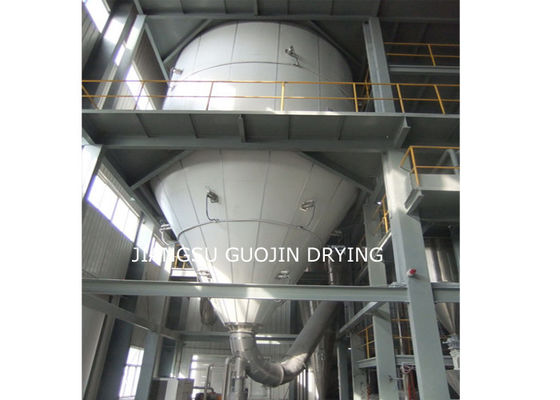

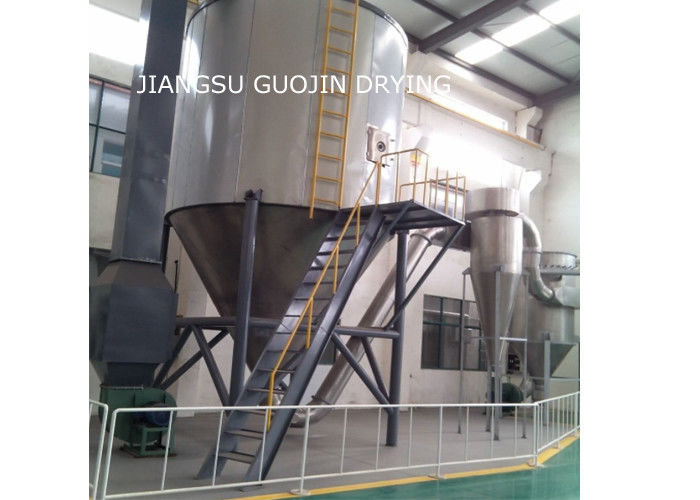

Product Show
