Food Spray Drying Machine Offering Rotary Speed 15500rpm and Maximum Spray Diameter 4700mm Designed for Drying Processes
Product Details:
| Place of Origin: | China |
| Brand Name: | spray dryer |
| Certification: | ISO9001 |
| Model Number: | LPG-500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | pending |
| Packaging Details: | wooden or nude |
| Delivery Time: | 60DAYS |
| Payment Terms: | TT,LC |
|
Detail Information |
|||
| Product Name: | Centrifugal Spray Dryer | Material: | Stainless Steel304 Or 316L |
|---|---|---|---|
| Application: | Food, Pharmaceutical, Chemical, Etc. | Maximum Spray Diameter: | 4700mm |
| Outlet Temperature: | 80-90 Degree | Inlet Temperature: | 140-350 Automatic Control |
| Diameter Of Atomizing Disc: | 150mm | Rotary Speed: | 15500rpm |
| Highlight: | high-speed spray drying machine 15500rpm,large spray diameter drying machine 4700mm,industrial food spray drying machine |
||
Product Description

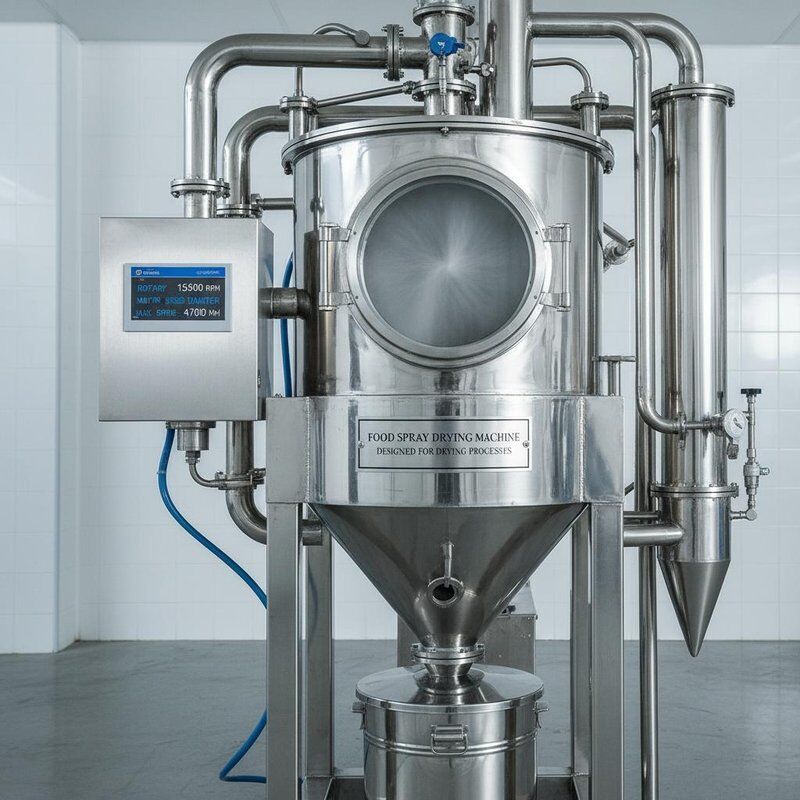

Food Spray Drying Machine
The Centrifugal Spray Dryer is an advanced spray drying system designed to efficiently convert liquid materials into dry powders through the process of spray drying. This high-performance spray dryer incorporates a centrifugal spray atomizer that ensures fine atomization of the liquid feed, resulting in uniform particle size and superior product quality.
Engineered with precision and reliability, the Centrifugal Spray Dryer is suitable for a wide range of applications in industries such as pharmaceuticals, food processing, chemicals, and more. The system features automatic control of inlet temperature (140-350°C) and maintains outlet temperature between 80-90°C to ensure optimal product quality.
Key Features
- Product Name: Centrifugal Spray Dryer
- Inlet Temperature: 140-350°C with Automatic Control
- Application: Suitable for Food, Pharmaceutical, Chemical industries
- Centrifugal Spray Head Drive: Mechanical Drive for efficient atomization
- Diameter of Atomizing Disc: 150mm for optimal drying performance
- Type: Drying Machine designed as an Atomizing Dryer
- Efficient Atomized Dryer ensuring uniform particle size and quality
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Centrifugal Spray Dryer |
| Control System | PLC or DSC |
| Maximum Spray Diameter | 4700mm |
| Material | Stainless Steel 304 or 316L |
| Application | Food, Pharmaceutical, Chemical, etc. |
| Max. Moisture Evaporation | 500kg/h |
| Outlet Temperature | 80-90°C |
| Diameter of Atomizing Disc | 150mm |
| Centrifugal Spray Head Drive | Mechanical Drive |
| Rotary Speed | 15500rpm |
Applications
The LPG-500 Centrifugal Spray Dryer is ideal for applications requiring precise moisture control and rapid drying. It excels in producing powdered milk, instant coffee, fruit powders, and pharmaceutical granules. The advanced atomizing system ensures uniform particle size distribution and prevents clumping, maintaining product integrity and enhancing solubility.
Customization Options
Our LPG-500 Centrifugal Spray Dryer offers customizable solutions including packaging options (wooden crates or nude packaging), control system selection (PLC or DSC), and material choices (Stainless Steel 304 or 316L). Minimum order quantity is 1 unit with delivery within 60 days.
Support & Services
We provide comprehensive technical support including installation guidance, user manuals, operational training, troubleshooting assistance, maintenance advice, and parts replacement. Our technical team is available to minimize downtime and maximize productivity.
Packing & Shipping
The machine is securely packaged in protective materials within sturdy wooden crates. We offer multiple shipping options including sea freight, air freight, and express delivery. All shipments are tracked, insured, and include detailed user manuals and installation guides.
Frequently Asked Questions
What is the brand and model number of this Spray Drying Machine?
The brand name is spray dryer and the model number is LPG-500.
Where is this Spray Drying Machine manufactured?
This machine is made in China.
Does the Spray Drying Machine have any certifications?
Yes, it is certified with ISO9001.
What is the minimum order quantity for the LPG-500 Spray Drying Machine?
The minimum order quantity is 1 unit.
What are the packaging options available for this machine?
The machine can be packaged in wooden crates or shipped nude, depending on customer preference.
What is the estimated delivery time after placing an order?
The delivery time is approximately 60 days.
What payment terms are accepted for purchasing the Spray Drying Machine?
We accept TT (Telegraphic Transfer) and LC (Letter of Credit) as payment methods.
